41 Electrical Components, Basic Equipment Without Wiring Harnesses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	TURN-SIGNAL AND CLEARANCE LIGHTS (OPEN OPERATOR'S STATION)	-
-	-	1	HORN	-
-	-	1	Power Outlet Socket Strip	-
-	-	1	REGISTRATION PLATE LIGHT (CAB)	-
-	-	1	REGISTRATION PLATE LIGHT (OPEN OPERATOR'S STATION)	-
-	-	1	STARTING MOTOR	-
-	-	1	TAIL LIGHTS AND TURN SIGNAL LIGHTS	-
-	-	1	TRAILER SOCKET	-
-	-	1	TURN-SIGNAL AND CLEARANCE LIGHTS (CAB)	-
-	-	1	Head Lights, W/O Corner Light, Front Grill, RH Traffic	-
-	-	1	WORK LIGHT, CAB ROOF, FRONT	-
-	-	1	WORK LIGHT, CAB ROOF, REAR	-
-	-	1	WORK LIGHT, CAB, FRONT	-
-	-	1	WORK LIGHT, FRONT (OPEN OPERATOR'S STATION)	-
-	-	1	WORK LIGHT, REAR (2-POST ROLL GARD)	-
-	-	1	WORK LIGHT, REAR (WITHOUT 2-POST ROLL GARD)	-
-	-	1	Work Light, Rear Fender (Cab)	-
-	-	1	3-TERMINAL POWER OUTLET SOCKET (FIELD OFFICE)	-
-	-	1	Head Lights, W/O Corner Light, Front Grill, LH Traffic	-
-	-	1	Head Lights, W/ Corner Light, Front Grill, RH Traffic	-
-	-	1	Head Lights, W/ Corner Light, Front Grill, LH Traffic	-
-	-	1	HEAD LIGHTS AND WORK LIGHTS (FRONT GRILL)	-
-	-	1	H4 HEADLIGHTS (CAB)	-
-	-	1	CONSOLES FOR SOCKETS AND CONTROL UNITS	-
-	-	1	BEACON LIGHT	-
-	-	1	BATTERY / ATTACHING PARTS	-
-	-	1	Attachment, Worklight, H3, Cab Rear	-
-	-	1	ALTERNATOR ATTACHING PARTS (WITHOUT AIR CONDITIONING OR AIR COMPRESSOR)	-
-	-	1	ALTERNATOR ATTACHING PARTS (WITH AIR CONDITIONING)	-
-	-	1	ALTERNATOR ATTACHING PARTS (WITH AIR COMPRESSOR / AIR CONDITIONING)	-
-	-	1	Alternator	-
-	-	1	3-TERMINAL SOCKET AND SIGNAL SOCKET ATTACHMENTS (CAB)	-
-	-	1	3-TERMINAL POWER OUTLET SOCKET (OPEN OPERATOR'S STATION)	-

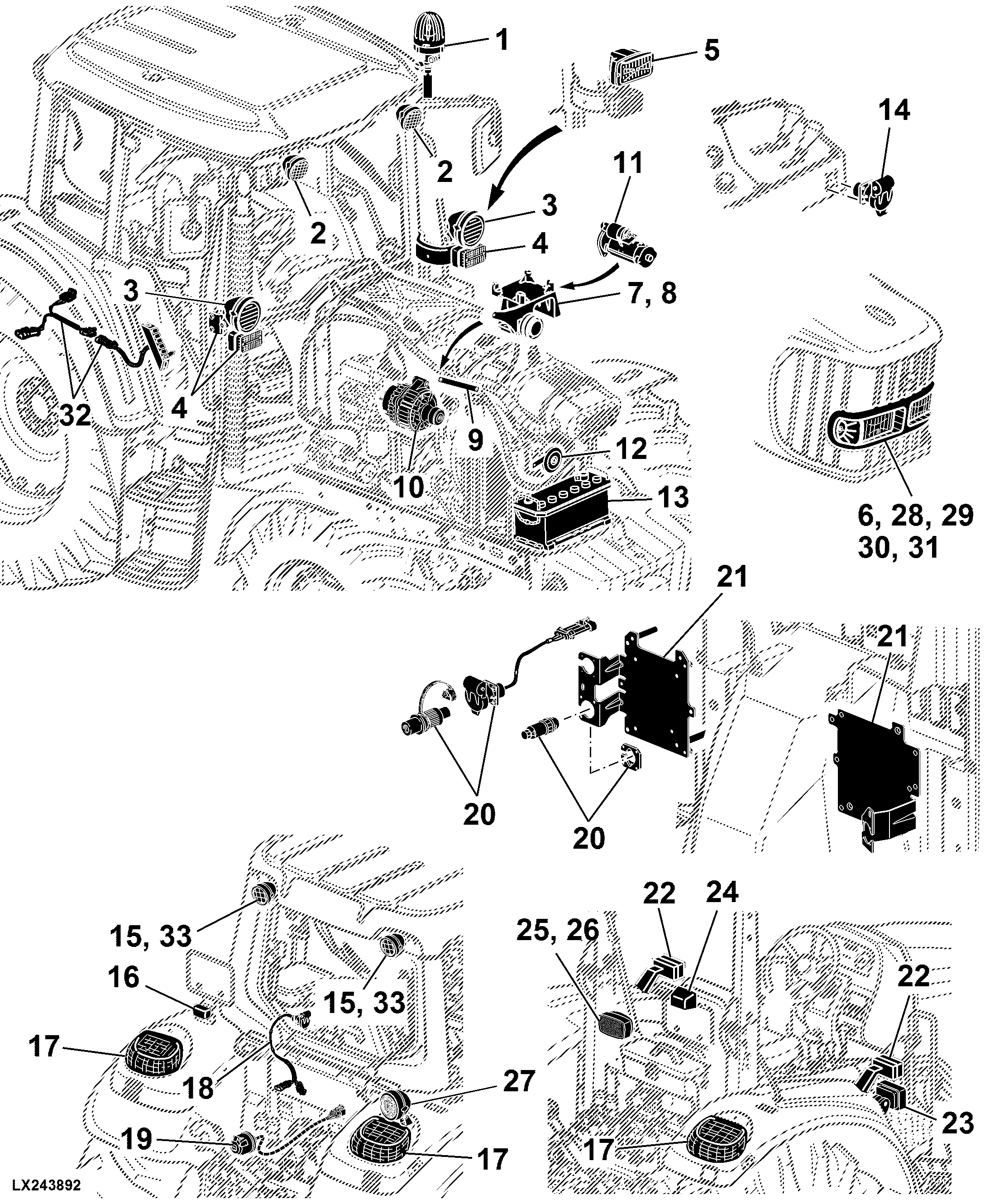

41 Electrical Components, Basic Equipment Without Wiring Harnesses

Нет текстового описания
