20 Engine 4045HL289-DD22383-DD22435-ETN108061

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание

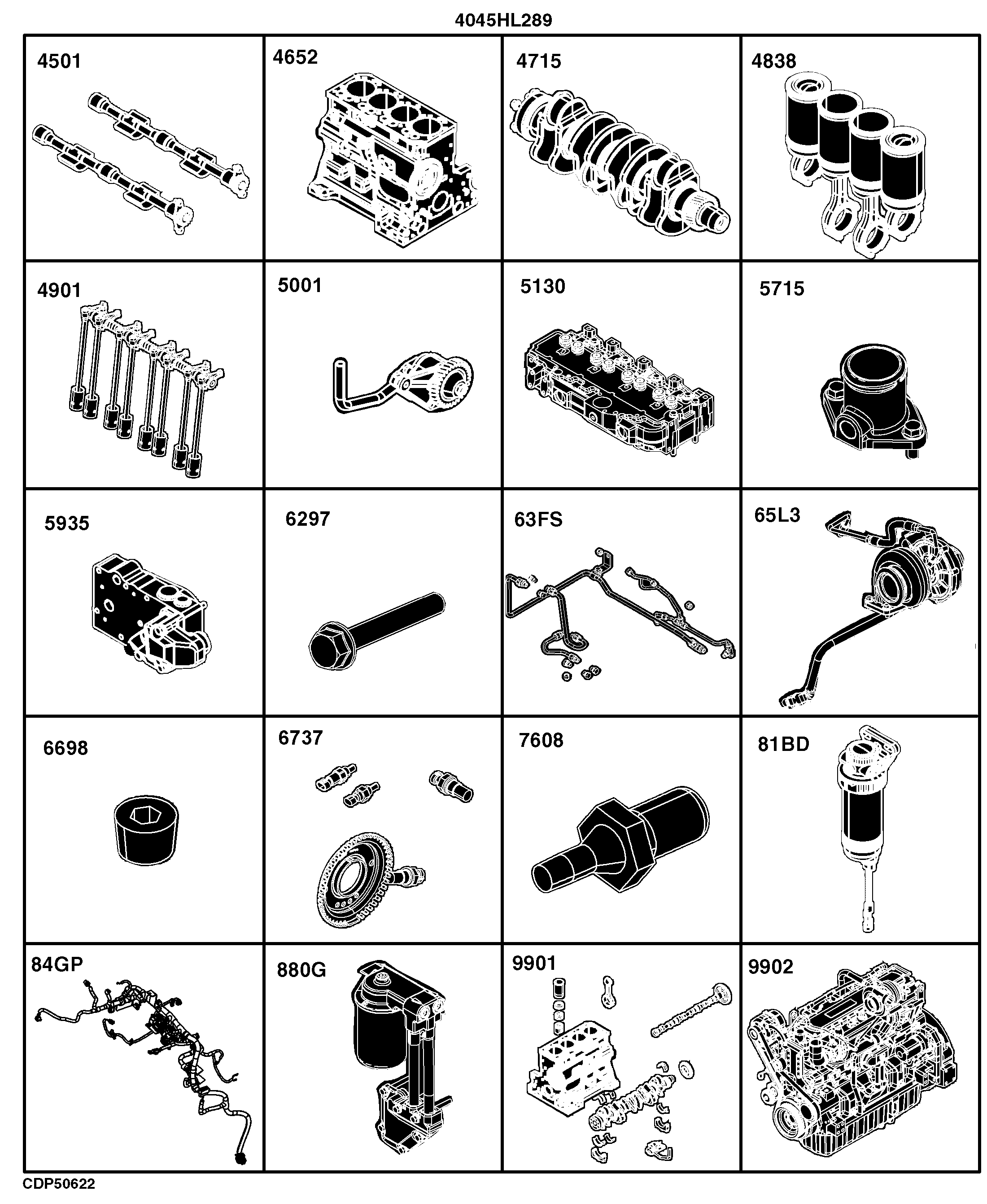

-	-	1	63FS Low Pressure Fuel Lines	-
-	-	1	4501 Balancer Shaft	-
-	-	1	4652 Cylinder Block	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	4838 Connecting Rods and Pistons	-
-	-	1	4901 Valve Actuating Mechanism ( - 160187)	-
-	-	1	4928 Valve Actuating Mechanism (160188 - )	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	5130 Cylinder Head and Valves	-
-	-	1	5715 Water Pump Inlet	-
-	-	1	5935 Oil Cooler	-
-	-	1	6297 Alternator Mounting Hardware	-
-	-	1	4487 Timing Gear Cover and Water Pump	-
-	-	1	65L3 Turbocharger	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	6737 Engine Sensors	-
-	-	1	7608 Oil Pressure Switch	-
-	-	1	81BD Primary Fuel Filter	-
-	-	1	84GP Engine Wiring Harness	-
-	-	1	8699 Fan Pulley/Belt Tensioner Support	-
-	-	1	880G Engine Oil Filter	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9902 Replacement Engine	-

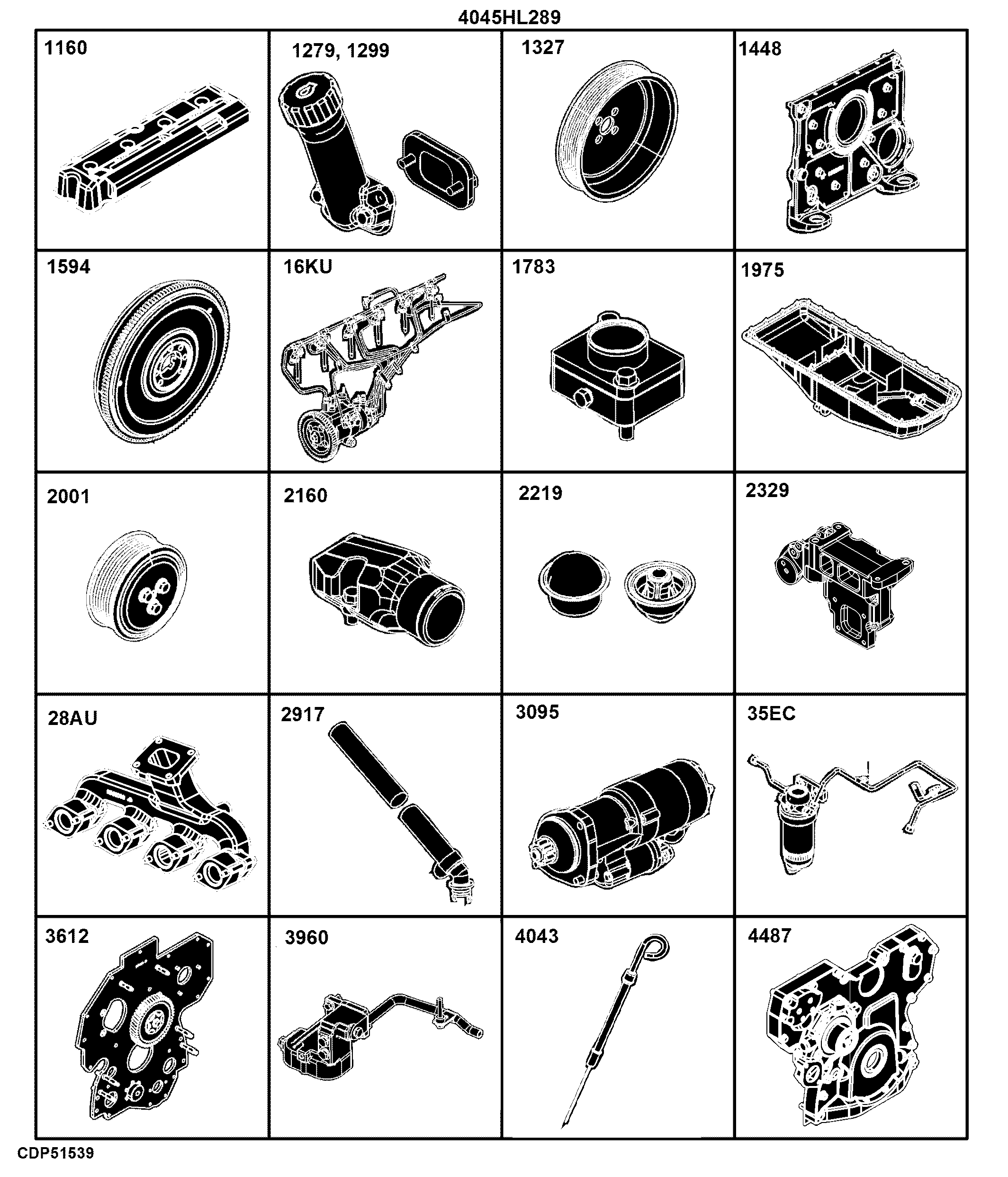

-	-	1	2219 Engine Thermostat	-
-	-	1	1279 Oil Filler Neck Cover (155828 - )	-
-	-	1	1299 Oil Filler Neck Cover ( - 155807)	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	1448 Flywheel Housing	-
-	-	1	1594 Flywheel	-
-	-	1	16KU Fuel Injection System	-
-	-	1	1783 Air Intake	-
-	-	1	1975 Oil Pan	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	2160 Thermostat Cover	-
-	-	1	1160 Rocker Arm Cover	-
-	-	1	2329 Fan Drive Hardware	-
-	-	1	28AU Exhaust Manifold	-
-	-	1	2917 Ventilating System ( - 150589)	-
-	-	1	29BR Ventilating System (150590 - )	-
-	-	1	3095 Starter Motor	-
-	-	1	35EC Final Fuel Filter	-
-	-	1	3612 Front Plate	-
-	-	1	3960 Thermostat Housing	-
-	-	1	4043 Engine Oil Dipstick	-
-	-	1	4345 Starting Aid	-

20 Engine 4045HL289-DD22383-DD22435-ETN108061
