Chassis Wiring Harness, PowrReverser™, OOS, (2/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32915	1	Wiring Harness	-
2	57M8281	1	Elec. Connector Housing	OOS to Transmission Interconnect X003-1M
2	57M8329	2	Electrical Connector Assy	Cavity H, S
2	57M9446	1	Elec. Connector Seal	Cavity B
2	57M8321	2	Elec. Connector Terminal	Cavity D, M
2	57M9223	9	Elec. Connector Seal	Cavity C, E, F, G, K, L, N, P, R
2	57M8322	2	Elec. Connector Terminal	Cavity A, J
2	57M8301	3	Elec. Connector Terminal	Cavity D, M, P
2	57M9539	8	Elec. Connector Terminal	Cavity C, E, F, G, K, L, N, R
2	57M8307	1	Elec. Connector Terminal	Cavity A
2	57M11996	1	Elec. Connector Accessory	-
2	57M8306	1	Elec. Connector Terminal	Cavity J
3	57M8875	1	Elec. Connector Terminal	Fuel Tank Ground GND006
4	57M7771	6	Elec. Connector Terminal	Cavity 18, 20, 23, 24, 27, 29
4	R78069	11	Elec. Connector Cavity Plug	Cavity 6, 8, 11, 12, 14, 15, 16, 21, 25, 26, 28
4	57M8164	8	Elec. Connector Terminal	Cavity 5, 7, 8, 9, 13, 17, 19, 22
4	57M8260	4	Elec. Connector Terminal	Cavity 1 - 4
4	57M8035	1	Nut	-
4	57M8616	1	Elec. Connector Housing	Engine Harness Interconnect X001-M
5	57M7839	1	Electrical Connector Assy	OOS to Hood Interconnect X002-M
5	57M7469	1	Electrical Connector Assy	-
5	57M8910	1	Clip	-
5	R104919	4	Elec. Connector Terminal	Cavity A - D
5	57M9215	4	Elec. Connector Seal	Cavity A - D
6	57M7255	1	Elec. Connector Housing	Power Shuttle Control B045
6	57M7290	1	Elec. Connector Accessory	-
6	57M7494	3	Elec. Connector Terminal	Cavity A - C
6	57M9214	3	Elec. Connector Seal	Cavity A - C
7	L78202	1	Elec. Connector Housing	Key Switch S300
8	R77480	1	Electrical Connector Assy	Horn Switch S003
8	57M9199	2	Elec. Connector Terminal	Cavity 1, 2
9	57M7183	1	Elec. Connector Accessory	Turn Signal Light Switch S072
10	57M7304	1	Elec. Connector Housing	Rear Work Light Switch S303
10	57M7306	1	Elec.Connect Locking Device	-
10	57M7285	2	Elec. Connector Terminal	Cavity A, B
10	57M9549	2	Elec. Connector Seal	Cavity A, B
11	57M7527	2	Elec. Connector Terminal	Cavity A, B
11	57M9218	2	Elec. Connector Seal	Cavity A, B
11	57M7306	1	Elec.Connect Locking Device	-
11	57M7304	1	Elec. Connector Housing	Front Work Light Switch S304
12	57M7985	1	Electrical Connector Assy	Roll Mode Switch S046
12	57M9712	1	Elec. Connector Accessory	-
12	57M7495	2	Elec. Connector Terminal	Cavity A, B
12	57M9214	2	Elec. Connector Seal	Cavity A, B
13	57M7263	1	Elec. Connector Housing	MFWD Switch S641
13	57M7259	3	Elec. Connector Seal	Cavity D - F
13	57M9214	3	Elec. Connector Seal	Cavity A - C
13	57M7495	3	Elec. Connector Terminal	Cavity A - C
13	57M7291	1	Electrical Connector Assy	-
14	57M8910	1	Clip	-
15	57M8868	1	Elec. Connector Terminal	Chassis Ground GND003
16	57M8901	1	Elec. Connector Terminal	Fused Power
17	57M8484	1	Elec. Connector Housing	OOS to Transmission Interconnect X003-1F
17	57M9919	1	Elec. Connector Accessory	-
17	57M8299	11	Elec. Connector Terminal	Cavity A, B, C, D, G, K, L, M, N, P, R
17	57M8300	3	Elec. Connector Terminal	Cavity E, F, J
17	57M9223	14	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, J, K, L, M, N, P, R
17	57M9446	2	Elec. Connector Seal	Cavity H, S

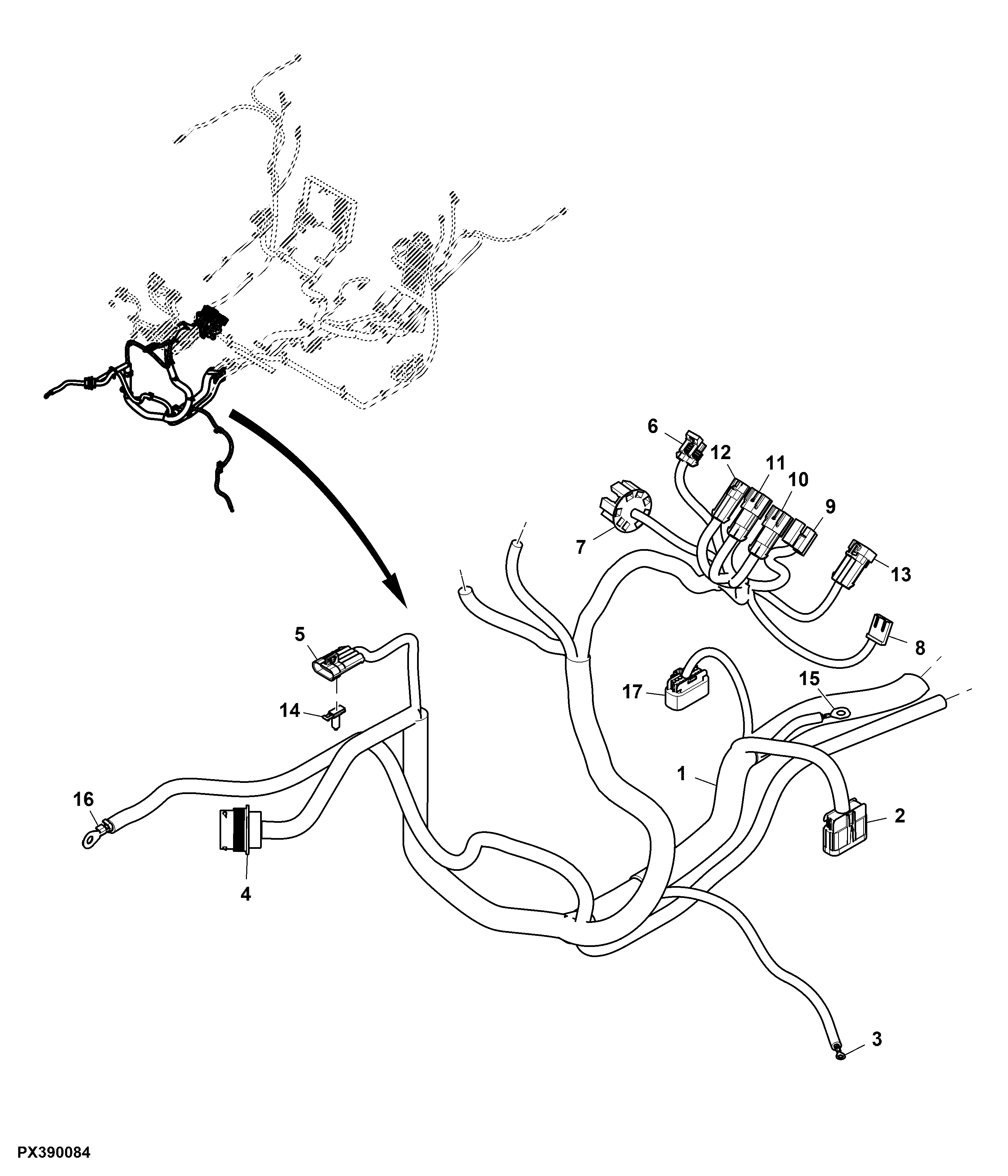

Chassis Wiring Harness, PowrReverser™, OOS, (2/5)
