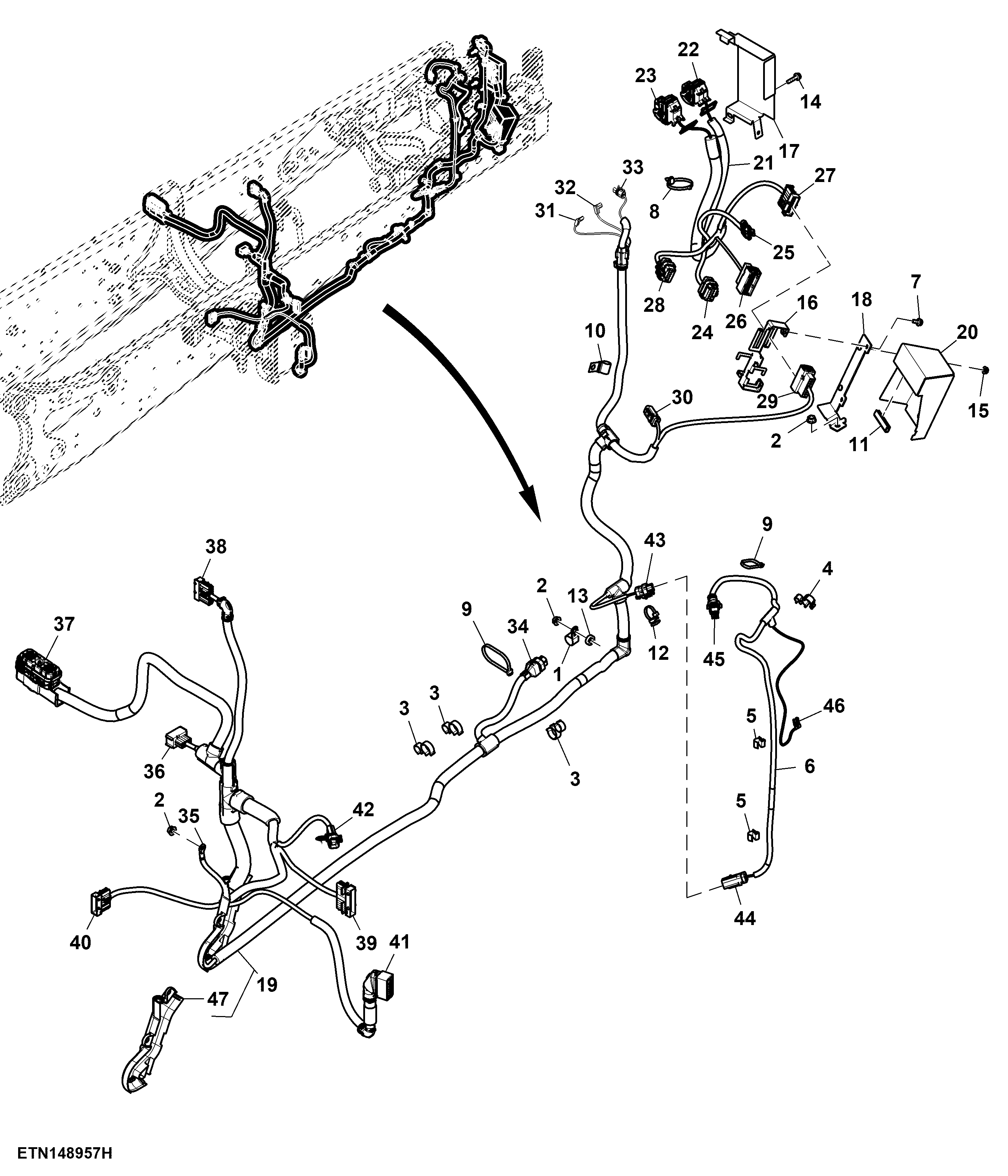

Wiring Harness, Front Chassis, W/ Front Controller, M400

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9856	1	Clamp	-
2	14M7298	5	Flange Nut	M8
3	AL159725	4	Clamp	-
4	L171496	1	Clamp	-
5	L110765	2	Clamp	-
6	AL236339	1	Wiring Harness	SUB FOR APPL AL218218
7	19M7774	2	Screw	M6 X 12
8	RE258807	1	Tie Band	-
9	57M12234	7	Elec. Connector Accessory	-
10	AH89557	1	Clip	-
11	L217085	2	Weatherstrip	LGTH = 60 mm
12	L206645	1	Tie Band	-
13	L165648	1	Washer	-
14	19M7863	3	Screw	M6 X 25
15	14M7303	2	Flange Nut	M6
16	L218786	1	Retainer	-
16	L223262	1	Retainer	-
16	L223262	1	Retainer	-
17	L218897	1	Cover	-
17	L218897	1	Cover	SUB FOR APPL L221786
17	L226522	1	Cover	-
18	L218787	1	Retainer	-
18	L223491	1	Retainer	-
18	L223491	1	Retainer	-
19	AL224883	1	Wiring Harness	ORDER AL228188
19	AL228188	1	Wiring Harness	-
20	L218896	1	Cover	-
20	L223260	1	Cover	-
20	L223260	1	Cover	-
21	AL225086	1	Wiring Harness	-
21	AL229984	1	Wiring Harness	-
21	AL229984	1	Wiring Harness	-
22	57M10334	1	Elec. Connector Cavity Plug	Cavity H2
22	57M10604	1	Elec. Connector Housing	-
22	57M13590	1	Elec. Connector Accessory	-
22	57M10617	3	Elec. Connector Housing	Cavity G3, G4, H4
22	57M10514	2	Elec. Connector Terminal	Cavity E1, F1
22	57M10331	4	Elec. Connector Terminal	Cavity G1, G2, H1, H3
22	57M10330	10	Elec. Connector Terminal	Cavity A1, A3, B3, B4, D4, E3, E4, F2, F3, F4,
22	57M10611	1	Elec. Connector Housing	Connector of Front Chassis Control Unit (M400), X985F-1
22	57M10333	12	Elec. Connector Cavity Plug	Cavity A2, A4, B1, B2, C1, C2, C3, C4, D1, D2, D3, E2
23	57M10334	2	Elec. Connector Cavity Plug	Cavity M2, M3
23	57M10613	1	Elec. Connector Housing	-
23	57M13590	1	Elec. Connector Accessory	-
23	57M10333	14	Elec. Connector Cavity Plug	Cavity A1, B1, B2, B4, C2, C3, C4, E4, F2, F3, F4, G4, H2, K4
23	57M10331	3	Elec. Connector Terminal	Cavity L2, M1, M4
23	57M10617	3	Elec. Connector Housing	Cavity L1, L3, L4
23	57M10514	13	Elec. Connector Terminal	Cavity A4, C1, D1, D2, D3, D4, G1, G3, H1, J1, J4, K1, K3
23	57M10330	13	Elec. Connector Terminal	Cavity A2, A3, B3, E1, E2, E3, F1, G2, H3, H4, J2, J3, K2
23	57M10614	1	Elec. Connector Housing	Connector of Front Chassis Control Unit (M400), X985F-2
24	57M9801	1	Elec. Connector Housing	Connection Point on Wiring Harness W291, X1168F
24	57M9809	9	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 8, 9, 10, 11
24	57M10631	1	Elec. Connector Terminal	Cavity 12
24	57M10336	2	Elec. Connector Cavity Plug	-
25	57M7318	1	Elec. Connector Accessory	-
25	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
25	57M8416	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 or W513 and W741, X002F
25	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
26	57M8072	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W291 and W751, X921F
26	57M9532	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
26	57M8079	1	Elec. Connector Terminal	Cavity 16
26	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
26	57M7399	1	Elec. Connector Seal	Cavity 16
26	57M8083	1	Elec. Connector Accessory	-
27	57M7399	5	Elec. Connector Seal	Cavity 1, 3, 14, 15, 16
27	57M8082	1	Elec. Connector Accessory	-
27	57M8075	1	Elec. Connector Seal	-
27	57M7401	7	Elec. Connector Cavity Plug	Cavity 4, 6, 7, 8, 11, 12, 13
27	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 9, 10
27	57M9042	4	Elec. Connector Terminal	Cavity 2, 5, 9, 10
27	57M8069	1	Elec. Connector Housing	Connection point on wiring harness W291 (M400), X1018M
28	57M9800	1	Elec. Connector Housing	Connection Point on Wiring Harness W291, X1083F
28	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
28	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 10
29	57M8083	1	Elec. Connector Accessory	-
29	57M7401	7	Elec. Connector Cavity Plug	Cavity 4, 6, 7, 8, 11, 12, 13
29	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 9, 10
29	57M9532	4	Elec. Connector Terminal	Cavity 2, 5, 9, 10
29	57M8079	5	Elec. Connector Terminal	Cavity 1, 3, 14, 15, 16
29	57M8072	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1018F
29	57M7399	5	Elec. Connector Seal	Cavity 1, 3, 14, 15, 16
30	57M9776	1	Elec. Connector Housing	Connection Point On Wiring Harness W271, X1316M
30	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
30	57M11134	1	Elec. Connector Housing	-
31	57M7984	1	Elec. Connector Terminal	Horn, X066F-2
31	57M8024	1	Elec. Connector Terminal	Cavity 1
32	57M7984	1	Elec. Connector Terminal	Horn, X066F-1
32	57M8024	1	Elec. Connector Terminal	Cavity 1
33	57M7379	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X604F
33	57M9222	1	Elec. Connector Housing	-
33	57M9112	2	Elec. Connector Cavity Plug	-
33	57M8633	1	Elec. Connector Accessory	-
33	57M7829	2	Elec. Connector Terminal	Cavity A, B
34	57M9817	1	Elec. Connector Housing	Connection Point on Wiring Harness W451, X637F-1
34	57M9809	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
34	57M15919	1	Elec. Connector Accessory	-
35	57M9419	1	Elec. Connector Terminal	Ground Vehicle, XGND9
36	57M8079	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10
36	57M8081	1	Elec. Connector Accessory	-
36	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
36	57M7399	9	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10
36	57M8071	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1233F
37	RE538505	1	Elec. Connector Accessory	Engine Controller, X021F-3
37	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 31
37	57M10321	16	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 45, 50, 52
37	57M10336	35	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 46, 47, 48, 49, 51, 53, 54
37	R528122	1	Elec. Connector Accessory	-
37	57M13590	2	Elec. Connector Accessory	-
38	57M8069	1	Elec. Connector Housing	Connection point on wiring harness W511 (6175R to 6215R tractors), X1080M
38	57M9042	5	Elec. Connector Terminal	Cavity 1, 4, 6, 7, 8
38	57M7400	5	Elec. Connector Seal	Cavity 1, 4, 6, 7, 8
38	57M7399	3	Elec. Connector Seal	Cavity 5, 10, 12
38	57M7401	8	Elec. Connector Cavity Plug	Cavity 2, 3, 9, 11, 13, 14, 15, 16
38	57M8075	1	Elec. Connector Seal	-
38	57M8082	1	Elec. Connector Accessory	-
39	57M7401	8	Elec. Connector Cavity Plug	Cavity 4, 5, 9, 13, 15, 16, 23, 24
39	57M8076	1	Elec. Connector Terminal	-
39	57M8084	1	Elec. Connector Accessory	-
39	57M7400	13	Elec. Connector Seal	Cavity 1, 2, 3, 6, 7, 11, 14, 17, 18, 19, 20, 21, 22
39	57M9042	13	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 11, 14, 17, 18, 19, 20, 21, 22
39	57M8070	1	Elec. Connector Housing	Connection Point on Harness W511, X1120M
39	57M7399	3	Elec. Connector Seal	Cavity 8, 10, 12
40	57M8069	1	Elec. Connector Housing	Connection Point on Harness W511, X1005M
40	57M9042	9	Elec. Connector Terminal	Cavity 7, 8, 9, 10, 11, 12, 13, 14, 15
40	57M7399	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
40	57M7400	9	Elec. Connector Seal	Cavity 7, 8, 9, 10, 11, 12, 13, 14, 15
40	57M7401	1	Elec. Connector Cavity Plug	Cavity 16
40	57M8075	1	Elec. Connector Seal	-
40	57M8082	1	Elec. Connector Accessory	-
41	57M13596	1	Elec. Connector Accessory	-
41	57M11864	1	Elec. Connector Accessory	-
41	57M7403	5	Elec. Connector Cavity Plug	Cavity 7, 8, 9, 10, 15
41	57M8241	4	Elec. Connector Terminal	Cavity 11, 12, 13, 14
41	57M7400	1	Elec. Connector Seal	Cavity 4
41	57M9161	4	Elec. Connector Terminal	Cavity 11, 12, 13, 14
41	57M8584	1	Elec. Connector Terminal	Cavity 4
41	57M8585	5	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6
41	57M11866	1	Elec. Connector Housing	Connector for Engine Connecting Wiring Harness (Wiring Harness W511), X1061F
41	57M7399	5	Elec. Connector Seal	Cavity 1, 2, 3, 5, 6
42	57M7263	1	Elec. Connector Housing	Connection Point on Harness W511, X637M
42	57M7495	4	Elec. Connector Terminal	Cavity A, B, C, D
42	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
42	57M7259	2	Elec. Connector Seal	Cavity E, F
42	57M7291	1	Electrical Connector Assy	-
42	57M9555	1	Clip	-
43	57M10631	3	Elec. Connector Terminal	Cavity 1, 2, 4
43	57M10336	1	Elec. Connector Cavity Plug	Cavity 3
43	57M9818	1	Elec. Connector Housing	Connection Point on Harness W511, X1078F
44	57M9822	1	Elec. Connector Housing	Connection Point on Harness W521, X1078M
44	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
44	57M10336	1	Elec. Connector Cavity Plug	Cavity 3
44	57M11742	1	Elec. Connector Terminal	USE WITH AL236339, Cavity 4
45	57M7254	1	Elec. Connector Housing	Connection Point on Harness W521, X678F
45	57M10770	2	Elec. Connector Terminal	Cavity A, B
45	57M9215	2	Elec. Connector Seal	Cavity A, B
45	57M8218	1	Elec. Connector Accessory	-
46	57M8481	1	Elec. Connector Terminal	Connector for Radiator Ground Connection, X305F
47	L207255	1	Channel	-

Wiring Harness, Front Chassis, W/ Front Controller, M400
