Открытый узел

Wiring Harness, Electrical Midstack SCV, W/ 3-Pin Socket, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16173	1	Wiring Harness	-
2	14M7298	2	Flange Nut	M8
3	19M7555	2	Screw	M8 X 30
4	19M7774	4	Screw	M6 X 12
5	19M7868	3	Screw	M8 X 30
6	19M8468	1	Screw	M16 X 25
7	19M9006	2	Screw	M8 X 35
8	57M12234	5	Elec. Connector Accessory	-
9	AH89486	1	Clip	-
10	AH89557	1	Clip	-
11	AL218954	1	Elec. Connector Housing	-
12	AL221523	1	Wiring Harness	-
13	AL223845	1	Bracket	-
14	AL228354	1	Wiring Harness	-
15	AL229984	1	Wiring Harness	-
16	AL226857	1	Fuse Box	Order Separately if Required, INCLUDES L221684
17	AL226859	1	Fuse Box	Order Separately if Required, INCLUDES L221684
18	L221684	2	Label	Order Separately if Required, ORDER L225960
18	L225960	2	Label	-
19	L205558	2	Clip	-
20	L207210	2	Block Clamp	-
21	L210204	2	Tie Band	-
22	L217085	3	Weatherstrip	LGTH = 60 mm
23	L218786	1	Retainer	-
24	L218787	1	Retainer	-
25	L218896	1	Cover	-
26	L221786	1	Cover	ORDER L226522
26	L226522	1	Cover	-
27	L222558	1	Retainer	-
28	L219641	1	Retainer	-
29	L222559	1	Retainer	-
30	R215302	3	Clip	-
31	R241878	1	Clip	-
32	R264173	4	Bolt	-
33	R44302	5	Tie Band	-
34	RE258807	2	Tie Band	-
35	L171496	1	Clamp	-
36	AL159725	4	Clamp	-
37	57M10611	1	Elec. Connector Housing	Connector of Front Chassis Control Unit (M400), X985F-1
37	57M10604	1	Elec. Connector Housing	-
37	57M13590	1	Elec. Connector Accessory	-
37	57M10334	1	Elec. Connector Cavity Plug	Cavity H2
37	57M10617	3	Elec. Connector Housing	Cavity G3, G4, H4
37	57M10514	2	Elec. Connector Terminal	Cavity A1, B1
37	57M10333	12	Elec. Connector Cavity Plug	Cavity A2, A4, B1, B2, C1, C2, C3, C4, D1, D2, D3, E2
37	57M10330	10	Elec. Connector Terminal	Cavity A1, A3, B3, B4, D4, E3, E4, F2, F3, F4,
37	57M10331	4	Elec. Connector Terminal	Cavity G1, G2, H1, H3
38	57M10614	1	Elec. Connector Housing	Connector of Front Chassis Control Unit (M400), X985F-2
38	57M10330	13	Elec. Connector Terminal	Cavity A2, A3, B3, E1, E2, E3, F1, G2, H3, H4, J2, J3, K2
38	57M10514	13	Elec. Connector Terminal	Cavity A4, C1, D1, D2, D3, D4, G1, G3, H1, J1, J4, K1, K3
38	57M10617	3	Elec. Connector Housing	Cavity L1, L3, L4
38	57M10331	3	Elec. Connector Terminal	Cavity L2, M1, M4
38	57M10333	14	Elec. Connector Cavity Plug	Cavity A1, B1, B2, B4, C2, C3, C4, E4, F2, F3, F4, G4, H2, K4
38	57M10334	2	Elec. Connector Cavity Plug	Cavity M2, M3
38	57M13590	1	Elec. Connector Accessory	-
38	57M10613	1	Elec. Connector Housing	-
39	57M10631	1	Elec. Connector Terminal	Cavity 12
39	57M10336	2	Elec. Connector Cavity Plug	Cavity 4, 7
39	57M9809	9	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 8, 9, 10, 11
39	57M9801	1	Elec. Connector Housing	Connection Point on Wiring Harness W291, X1168F
40	57M8416	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 or W513 and W741, X002F
40	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
40	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
40	57M7318	1	Elec. Connector Accessory	-
41	57M8072	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W291 and W751, X921F
41	57M9532	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
41	57M8079	1	Elec. Connector Terminal	Cavity 16
41	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
41	57M7399	1	Elec. Connector Seal	Cavity 16
41	57M8083	1	Elec. Connector Accessory	-
42	57M8082	1	Elec. Connector Accessory	-
42	57M8075	1	Elec. Connector Seal	-
42	57M7401	7	Elec. Connector Cavity Plug	Cavity 4, 6, 7, 8, 11, 12, 13
42	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 9, 10
42	57M9042	4	Elec. Connector Terminal	Cavity 2, 5, 9, 10
42	57M8069	1	Elec. Connector Housing	Connection point on wiring harness W291 (M400), X1018M
42	57M7399	5	Elec. Connector Seal	Cavity 1, 3, 14, 15, 16
43	57M9800	1	Elec. Connector Housing	Connection Point on Wiring Harness W291, X1083F
43	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
43	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 10
44	57M7328	1	Elec. Connector Housing	Connection Point on Wiring Harness W751, X1278F
44	57M10770	2	Elec. Connector Terminal	Cavity A, B
44	57M9215	2	Elec. Connector Seal	Cavity A, B
44	57M7289	1	Elec.Connect Locking Device	-
45	57M10770	5	Elec. Connector Terminal	Cavity A, B, D, E, F
45	57M7291	1	Electrical Connector Assy	-
45	57M7259	1	Elec. Connector Seal	Cavity C
45	57M9215	5	Elec. Connector Seal	Cavity A, B, D, E, F
45	57M7260	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W751 and W912, X1268F
46	57M10297	1	Elec. Connector Housing	Connection Point on Wiring Harness W751, X923F
46	57M8565	3	Elec. Connector Terminal	Cavity 1, 8, 14
46	57M8545	9	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 13
46	57M8572	2	Elec. Connector Cavity Plug	Cavity 11, 12
46	57M12118	1	Elec. Connector Accessory	-
47	57M9805	1	Elec. Connector Housing	Connection point on wiring harness W751 (with front loader and return-to-position function), X1168M
47	57M10603	1	Elec. Connector Terminal	Cavity 12
47	57M9813	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 10, 11
47	57M9812	2	Elec. Connector Terminal	Cavity 8, 9
48	57M8069	1	Elec. Connector Housing	Connection Point on Harness W751, X921M
48	57M9042	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
48	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
48	57M7399	1	Elec. Connector Seal	Cavity 16
48	57M8075	1	Elec. Connector Seal	-
48	57M8082	1	Elec. Connector Accessory	-
49	57M7494	7	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G
49	57M7296	1	Elec. Connector Accessory	-
49	57M7259	1	Elec. Connector Seal	Cavity H
49	57M9214	7	Elec. Connector Seal	Cavity A, B, C, D, E, F, G
49	57M7261	1	Elec. Connector Housing	Connection Point on Wiring Harness W751, X1169F
50	57M7281	1	Elec.Connect Locking Device	-
50	57M7494	2	Elec. Connector Terminal	Cavity A, B
50	57M7259	1	Elec. Connector Seal	Cavity C
50	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
50	57M7258	2	Elec. Connector Seal	Cavity D, J
50	57M10770	5	Elec. Connector Terminal	Cavity E, F, G, H, K
50	57M9541	2	Elec. Connector Terminal	Cavity D, J
50	57M7262	1	Elec. Connector Housing	Connection Point on Wiring Harness W751, X1134F
50	57M9214	2	Elec. Connector Seal	Cavity A, B
51	57M7265	1	Elec. Connector Housing	Connection Point between Harnesses W751 and W731, X1134M
51	57M9546	4	Elec. Connector Terminal	Cavity A, B, F, G
51	57M11342	2	Elec. Connector Terminal	Cavity D, J
51	R104919	3	Elec. Connector Terminal	Cavity E, H, K
51	57M9214	2	Elec. Connector Seal	Cavity A, B
51	57M7258	2	Elec. Connector Seal	Cavity D, J
51	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
51	57M7259	1	Elec. Connector Seal	Cavity C
51	57M7281	1	Elec.Connect Locking Device	-
51	57M9555	1	Clip	-
52	57M7829	2	Elec. Connector Terminal	Cavity C, D
52	57M10466	1	Elec. Connector Housing	E-SCV XI Stepper Motor, X318F, M012
52	57M7830	2	Elec. Connector Terminal	Cavity A, B
53	57M10466	1	Elec. Connector Housing	E-SCV XII Stepper Motor, X251F, M013
53	57M7830	2	Elec. Connector Terminal	Cavity A, B
53	57M7829	2	Elec. Connector Terminal	Cavity C, D
53	L219630	1	Elec. Connector Accessory	-
54	57M7829	2	Elec. Connector Terminal	Cavity C, D
54	L219630	1	Elec. Connector Accessory	-
54	57M7830	2	Elec. Connector Terminal	Cavity A, B
54	57M10466	1	Elec. Connector Housing	E-SCV XIII Stepper Motor, X252F, M014
55	57M7534	1	Elec. Connector Housing	Commutation Valve of Front Hitch, X1007F, Y102
55	57M7546	2	Elec. Connector Terminal	-
55	57M7620	1	Electrical Connector Assy	-
56	57M10466	1	Elec. Connector Housing	Stepper Motor for Front Hitch, X253F, M015
56	57M7830	2	Elec. Connector Terminal	Cavity A, B
56	57M7829	2	Elec. Connector Terminal	Cavity C, D
56	L219630	1	Elec. Connector Accessory	-

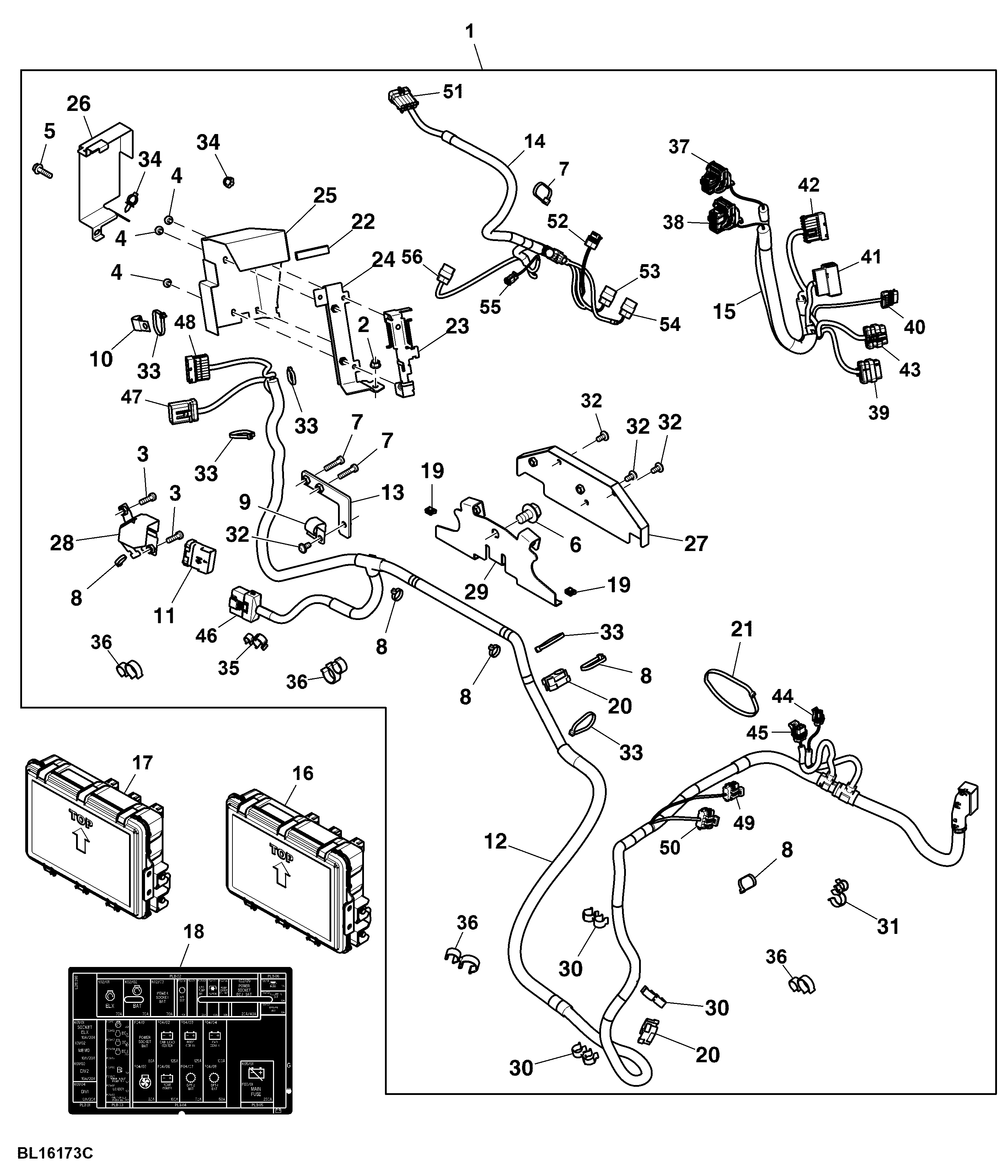

Wiring Harness, Electrical Midstack SCV, W/ 3-Pin Socket, Attachment
