Control Unit, Heating, Air Conditioning

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL77714	1	Switch	Cab Blower Fan Switch
2	L80395	1	Cover	-
3	37M7215	2	Screw	-
4	AL79675	1	Plate	-
5	L80393	2	Screw	-
6	AL75977	1	Push Pull Cable	(Upper Air Flap) LGTH = 2500 mm
7	AL76690	1	Push Pull Cable	(Lower Air Flap) LGTH = 2350 mm
8	AL82946	1	Push Pull Cable	(Thermo Switch) LGTH = 870 mm
9	AL167660	1	Push Pull Cable	-
10	L170741	1	Frame	-
11	L79648	8	Push Nut	-
12	L170742	1	Housing	-
13	L170932	1	Label	-
14	L170743	1	Housing	-
15	37M7165	6	Screw	-
16	L80394	2	Knob	-
17	AL77502	3	Knob	-
18	AL174669	1	Toggle/Rocker Switch	-
19	L170931	1	Plug	-
20	AL213502	1	Wiring Harness	-
21	AL115468	1	Potentiometer	(Cruise Control)
22	L59927	1	Nut	-
23	L114171	1	Knob	-
24	24M7210	1	Washer	5.500 X 18 X 2 mm
25	37M7061	1	Screw	M5 X 20
26	AL76702	1	Relay	-
27	57M7121	1	Fuse	-
28	L171532	1	Plate	-
29	L174339	1	Shield	-
30	L213646	1	Cover	-
31	L166804	1	Plug	-
32	37M7140	5	Screw	-
33	L150304	1	Clamp	-
34	L153652	1	Clamp	-
35	L57881	3	Clip	-
36	L112709	2	Grommet	-
37	L100644	1	Grommet	-
38	37M7527	1	Screw	M5 X 25
39	L78704	1	Sealing Washer	-
40	57M7382	1	Elec. Connector Terminal	Ground Point, XGND15
41	57M7089	1	Elec. Connector Terminal	Cavity A
41	57M7170	1	Elec. Connector Housing	Air-Conditioning System Thermostat Switch, X073F-1
42	57M7089	1	Elec. Connector Terminal	Cavity A
42	57M7170	1	Elec. Connector Housing	Air-Conditioning System Thermostat Switch, X073F-2
43	57M7328	1	Elec. Connector Housing	Refrigerant Pressure Switch, X028F
43	57M10770	2	Elec. Connector Terminal	Cavity A, B
43	57M9215	2	Elec. Connector Seal	Cavity A, B
44	57M7170	1	Elec. Connector Housing	Evaporator Ground Connection, X665F
44	57M7089	1	Elec. Connector Terminal	Cavity A
45	57M7089	1	Elec. Connector Terminal	Cavity A
45	57M7170	1	Elec. Connector Housing	De-Icing Switch, X449F-1
46	57M7170	1	Elec. Connector Housing	De-Icing Switch, X449F-2
46	57M7089	1	Elec. Connector Terminal	Cavity A
47	57M7309	1	Elec. Connector Housing	Fan Motor, X047F
47	57M7491	2	Elec. Connector Terminal	Cavity A, B
47	57M9218	2	Elec. Connector Seal	Cavity A, B
47	57M7306	1	Elec.Connect Locking Device	-
48	57M7306	1	Elec.Connect Locking Device	-
48	57M9218	2	Elec. Connector Seal	Cavity A, B
48	57M7309	1	Elec. Connector Housing	Fan Motor, X046F
48	57M7491	2	Elec. Connector Terminal	Cavity A, B
49	57M7381	1	Elec. Connector Housing	Connector of Fan Resistors, X048F
49	57M7205	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
50	57M7330	1	Elec. Connector Housing	Blower Switch, X100F
50	57M7205	5	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6
50	57M7206	1	Elec. Connector Terminal	Cavity 2
51	57M9702	1	Elec. Connector Accessory	-
51	57M9215	3	Elec. Connector Seal	Cavity A, B, C
51	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
51	57M7257	1	Elec. Connector Housing	Switch for Air-Conditioning System Compressor Clutch, X448M
52	57M7697	1	Electrical Connector Assy	Inline Cab, X577M
52	57M7252	4	Elec. Connector Terminal	Cavity A, B, D, F
52	57M7583	2	Elec. Connector Terminal	Cavity E, G
52	57M9215	4	Elec. Connector Seal	Cavity A, B, D, F
52	57M9563	2	Elec. Connector Cable Seal	Cavity E, G
52	57M7259	1	Elec. Connector Seal	Cavity C
52	57M7699	1	Elec. Connector Terminal	-
53	57M7079	1	Elec. Connector Terminal	Ground Point, XGND15
54	57M9556	1	Elec. Connector Accessory	-

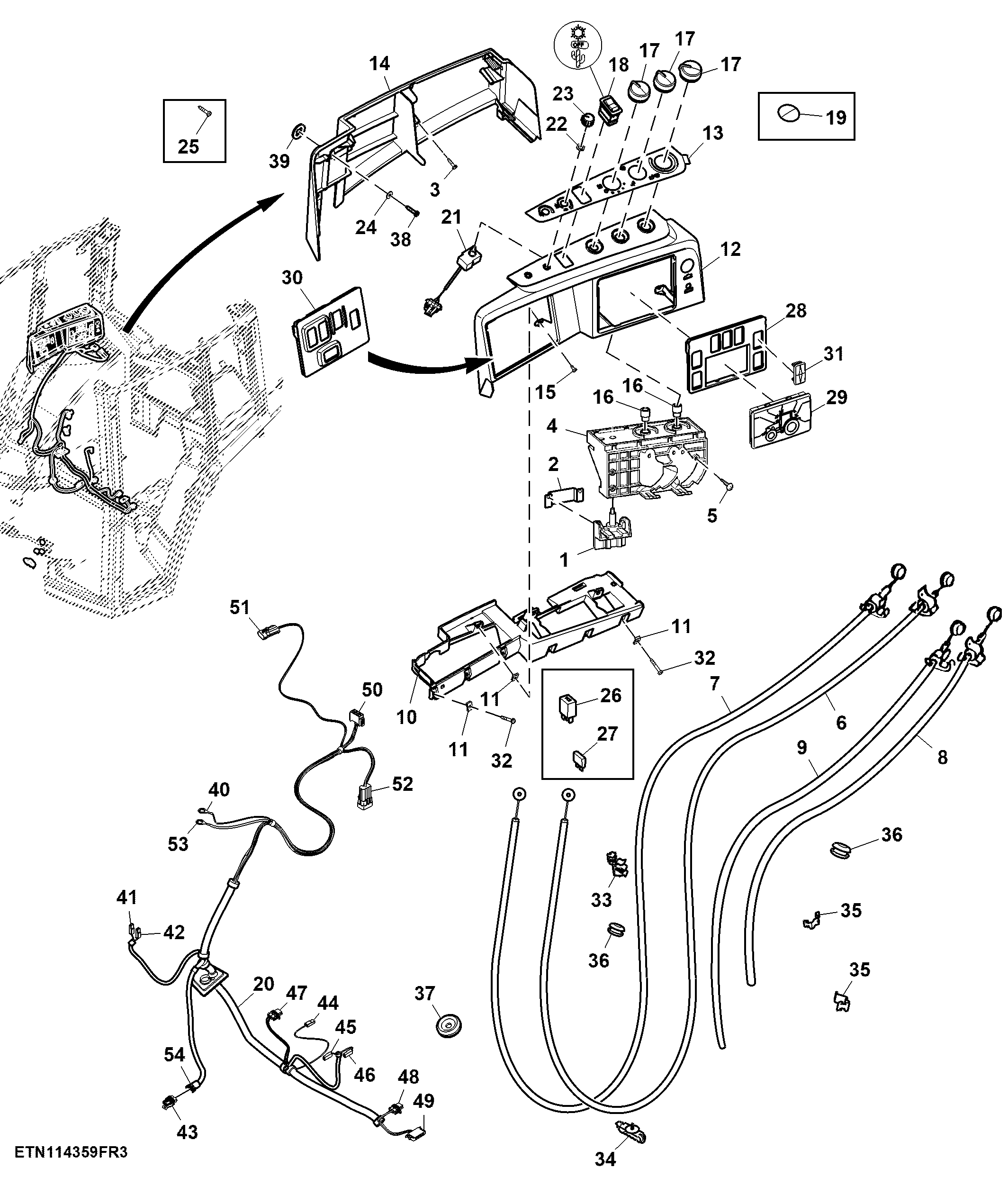

Control Unit, Heating, Air Conditioning
