Открытый узел

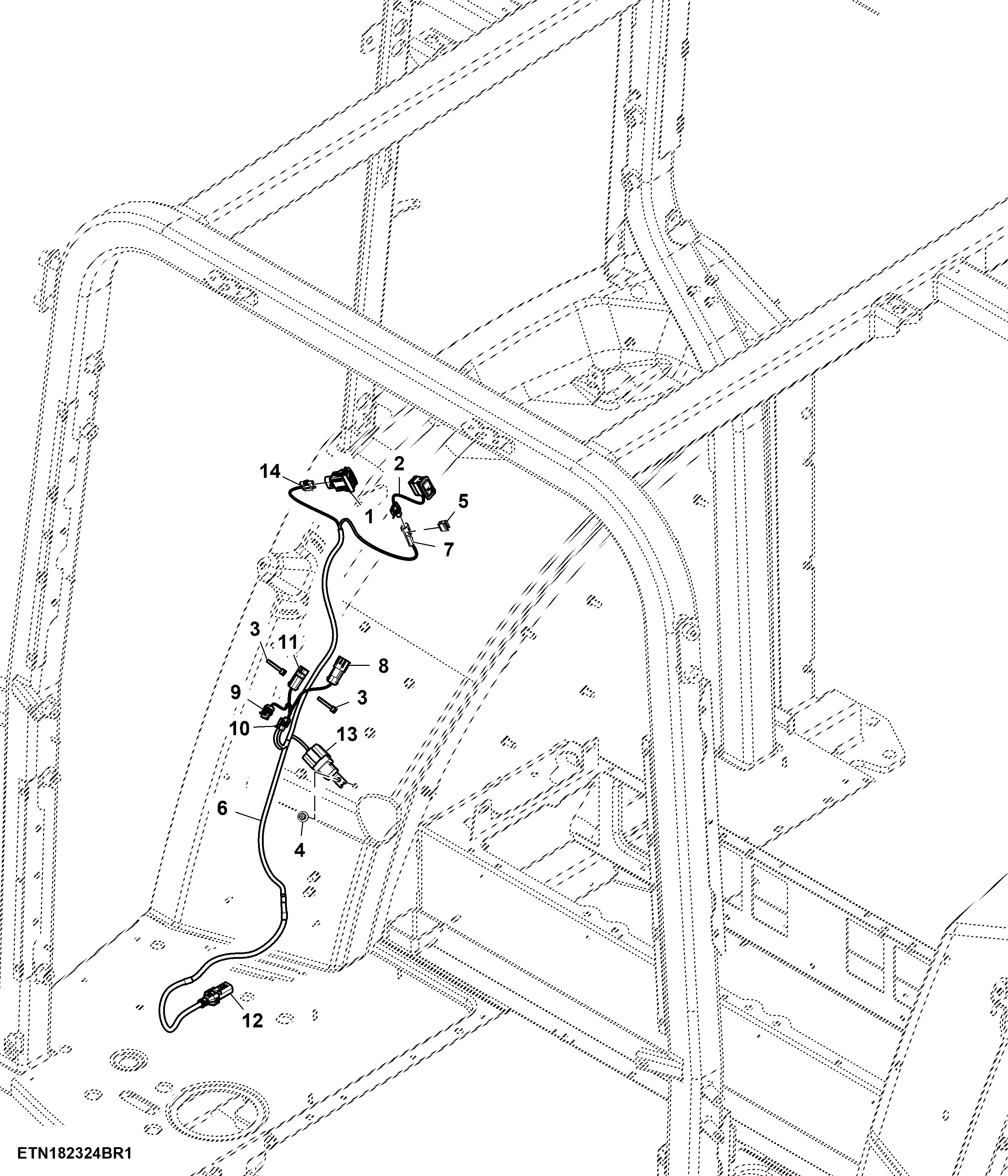

Wiring Harness, Toggle Switch, W/ Loader Lights, W/ Quick Unlatch Function

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL219579	1	Toggle/Rocker Switch	-
2	AL218622	1	Toggle/Rocker Switch	-
3	L222109	2	Tie Band	-
4	L40924	1	Nut	-
5	57M14238	1	Elec. Connector Accessory	-
6	AL232355	1	Wiring Harness	SUB FOR AL229389
7	57M7256	1	Elec. Connector Housing	Switch for Front Loader Worklights, XS208M
7	R104919	2	Elec. Connector Terminal	Cavity A, B
7	57M9215	2	Elec. Connector Seal	Cavity A, B
7	57M7289	1	Elec.Connect Locking Device	-
8	57M7285	2	Elec. Connector Terminal	Cavity A, B
8	57M7306	1	Elec.Connect Locking Device	-
8	57M9219	2	Elec. Connector Seal	Cavity A, B
8	57M7304	1	Elec. Connector Housing	Connector for Accessories (Lead 0372), X037M-7
9	57M7309	1	Elec. Connector Housing	Connector for Accessories (Lead 0372), X037F-7
9	57M9219	2	Elec. Connector Seal	Cavity A, B
9	57M10477	1	Elec. Connector Accessory	-
9	57M7491	2	Elec. Connector Terminal	Cavity A, B
10	57M7289	1	Elec.Connect Locking Device	-
10	57M7258	2	Elec. Connector Seal	Cavity A, B
10	57M7254	1	Elec. Connector Housing	Connector for Accessories (Lead 0362), X037F-6
10	57M9541	2	Elec. Connector Terminal	Cavity A, B
11	57M7256	1	Elec. Connector Housing	Connector for Accessories (Lead 0362), X037M-6
11	57M7258	2	Elec. Connector Seal	Cavity A, B
11	57M7289	1	Elec.Connect Locking Device	-
11	57M11342	2	Elec. Connector Terminal	Cavity A, B
12	57M9823	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W912 and W911, X445M
12	57M10603	3	Elec. Connector Terminal	Cavity 1, 2, 3
12	57M10336	1	Elec. Connector Cavity Plug	Cavity 4
12	57M15918	1	Elec. Connector Accessory	-
13	57M8232	1	Elec. Connector Housing	Relay for Hydraulic Quick Release (Front Loader), XK070F
13	57M11184	2	Elec. Connector Seal	Cavity 3, 5
13	57M11856	2	Elec. Connector Terminal	Cavity 3, 5
13	57M11297	1	Elec. Connector Accessory	-
13	57M8237	2	Elec. Connector Seal	Cavity 1, 2
13	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
14	57M8542	1	Elec. Connector Housing	Switch for Hydraulic Quick Release (Front Loader), XS205F
14	57M8571	2	Elec. Connector Terminal	Cavity 1, 3
14	57M7938	2	Elec. Connector Terminal	Cavity 1, 3
14	57M7743	1	Elec. Connector Cable Seal	Cavity 2

Wiring Harness, Toggle Switch, W/ Loader Lights, W/ Quick Unlatch Function

Нет текстового описания
