Wiring Harness, RH Console, CommandQuad™, W/ CommandARM™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL232353	1	Wiring Harness	SUB FOR AL230438
2	57M8073	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W23X, X202F-1
2	57M9532	14	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 11, 12, 13, 16, 17, 18, 20, 21, 22
2	57M8941	2	Elec. Connector Terminal	Cavity 23, 24
2	57M7400	14	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 11, 12, 13, 16, 17, 18, 20, 21, 22
2	57M7399	2	Elec. Connector Seal	Cavity 23, 24
2	57M8084	1	Elec. Connector Accessory	-
3	57M7065	1	Elec. Connector Housing	Cigarette Lighter, XE005F
3	57M7430	2	Elec. Connector Terminal	Cavity 1, 2
4	57M10640	1	Elec. Connector Housing	Connector of Cab Switch Module Control Unit, XS175F
4	57M8609	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 7, 8
5	57M14238	1	Elec. Connector Accessory	-
5	57M9702	1	Elec. Connector Accessory	-
5	R104919	3	Elec. Connector Terminal	Cavity A, B, C
5	57M7257	1	Elec. Connector Housing	Rear PTO Switch, XS021M
5	57M9215	3	Elec. Connector Seal	Cavity A, B, C
6	57M7256	1	Elec. Connector Housing	Start Gear Switch, CommandQuad™ Transmission, XS029M
6	R104919	2	Elec. Connector Terminal	Cavity A, B
6	57M9215	2	Elec. Connector Seal	Cavity A, B
6	57M14238	1	Elec. Connector Accessory	-
6	57M7289	1	Elec.Connect Locking Device	-
7	57M7257	1	Elec. Connector Housing	Front PTO Switch, XS006M
7	57M7290	1	Elec. Connector Accessory	-
7	57M14238	1	Elec. Connector Accessory	-
7	57M9215	3	Elec. Connector Seal	Cavity A, B, C
7	R104919	3	Elec. Connector Terminal	Cavity A, B, C
8	57M11471	1	Elec. Connector Housing	Reconfigurable Control Module for E-SCV III-IV, Side Console, XS051F
9	57M11471	1	Elec. Connector Housing	Reconfigurable Control Module for E-SCV I-II, Side Console, XS050F
10	57M13867	1	Elec. Connector Housing	USB Charging Socket, Side Panel, XA028F
11	L222108	1	Tie Band	-

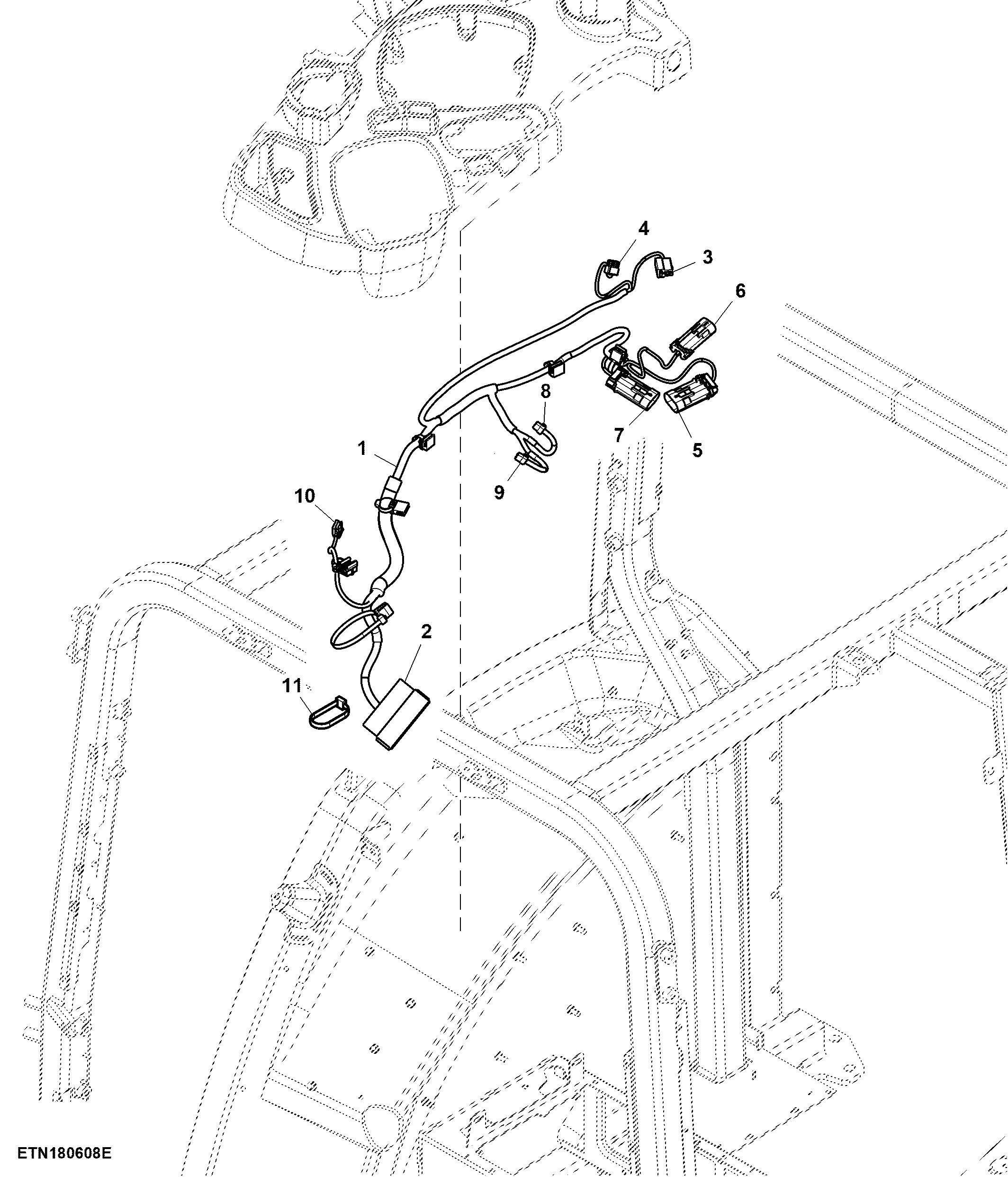

Wiring Harness, RH Console, CommandQuad™, W/ CommandARM™
