Большое обновление пильных узлов

Смотреть

Открытый узел

Multi-Function Lever, Mechanical SCV, W/ 3-Function, W/ Loader Suspension Switch, W/O Gearshift Switch, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16201	1	Actuator	-
2	14M7416	4	Flange Nut	M8
3	19M7865	3	Screw	M8 X 16
4	19M8039	2	Screw	M8 X 80
5	AL225453	1	Support	-
6	L208072	2	Retainer	-
7	L209039	2	Pin	-
8	L212383	4	Rivet	-
9	W31909	1	Instruction Plate	-
10	AL228639	2	Push Pull Cable	LGTH = 1730 mm, Order Separately if Required, For 6155M, 6175M, 6195M
11	57M7406	1	Elec. Connector Housing	Solenoid Valve for Third Function for the Front Loader, XY007M
11	57M9532	2	Elec. Connector Terminal	Cavity 1, 2
11	57M7400	2	Elec. Connector Seal	Cavity 1, 2
12	AL225802	1	Multi-Functional Controller	-
13	AL225454	1	Control Lever	-
14	37M7095	2	Screw	-
15	AL225803	1	Handle	-
16	AL208243	1	Wiring Harness	-
17	37M7389	4	Screw	-
18	AL229722	1	Boot	-
19	L220927	1	Boot	-
20	L226232	1	Frame	SUB FOR L220936
21	57M7406	1	Elec. Connector Housing	Solenoid Valve for Third Function for the Front Loader, XY002M
21	57M9532	2	Elec. Connector Terminal	Cavity 1, 2
21	57M7400	2	Elec. Connector Seal	Cavity 1, 2
22	57M7328	1	Elec. Connector Housing	-
22	57M7252	1	Elec. Connector Terminal	Cavity A
22	57M7289	2	Elec.Connect Locking Device	-
22	57M7259	2	Elec. Connector Seal	-
22	57M9546	1	Elec. Connector Terminal	Cavity B
22	57M7985	1	Electrical Connector Assy	Connection Point between Wiring Harnesses W912 and W731 or W901, X1278M
22	57M9215	2	Elec. Connector Seal	Cavity A, B
23	57M7263	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W912 and W731 or W901, X1268M
23	57M7252	2	Elec. Connector Terminal	Cavity A, B
23	57M9215	2	Elec. Connector Seal	Cavity A, B
23	57M7259	4	Elec. Connector Seal	Cavity C, D, E, F
23	57M7291	1	Electrical Connector Assy	-
24	57M9215	1	Elec. Connector Seal	Cavity C
24	57M7290	1	Elec. Connector Accessory	-
24	57M9214	2	Elec. Connector Seal	Cavity A, B
24	57M7252	1	Elec. Connector Terminal	Cavity C
24	57M9546	2	Elec. Connector Terminal	Cavity A, B
24	57M7257	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W901, X237M
25	57M7256	1	Elec. Connector Housing	Connector for Accessories, Lead 0362, X037M-4
25	57M11342	2	Elec. Connector Terminal	Cavity A, B
25	57M7258	2	Elec. Connector Seal	Cavity A, B
25	57M7289	1	Elec.Connect Locking Device	-
26	AL224234	2	Push Pull Cable	LGTH = 2250 mm, Order Separately if Required, For 6090M, 6100M, 6110M, 6120M
27	AL224235	2	Push Pull Cable	LGTH = 2175 mm, Order Separately if Required, For 6090M, 6100M, 6110M, 6120M
28	AL215428	2	Push Pull Cable	LGTH = 1630 mm, Order Separately if Required, For 6110M (Tier 2), 6125M (Tier 2), 6130M, 6140M (Tier 2), 6145M
29	AL215425	2	Push Pull Cable	LGTH = 1430 mm, Order Separately if Required, For 6M Brasil
30	19M9730	1	Screw	M6 X 45
31	AL233531	2	Push Pull Cable	LGTH = 2060 mm

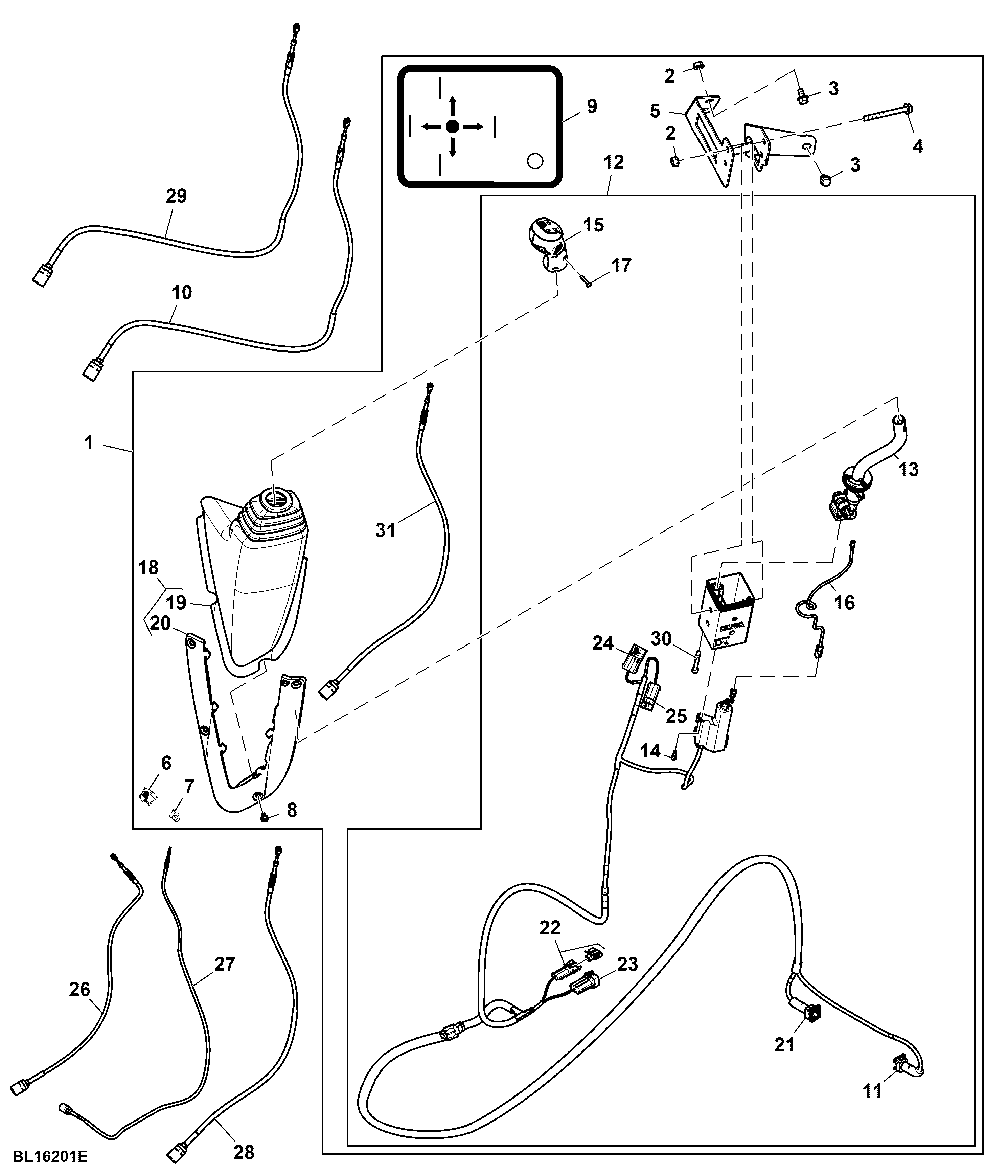

Multi-Function Lever, Mechanical SCV, W/ 3-Function, W/ Loader Suspension Switch, W/O Gearshift Switch, Attachment
