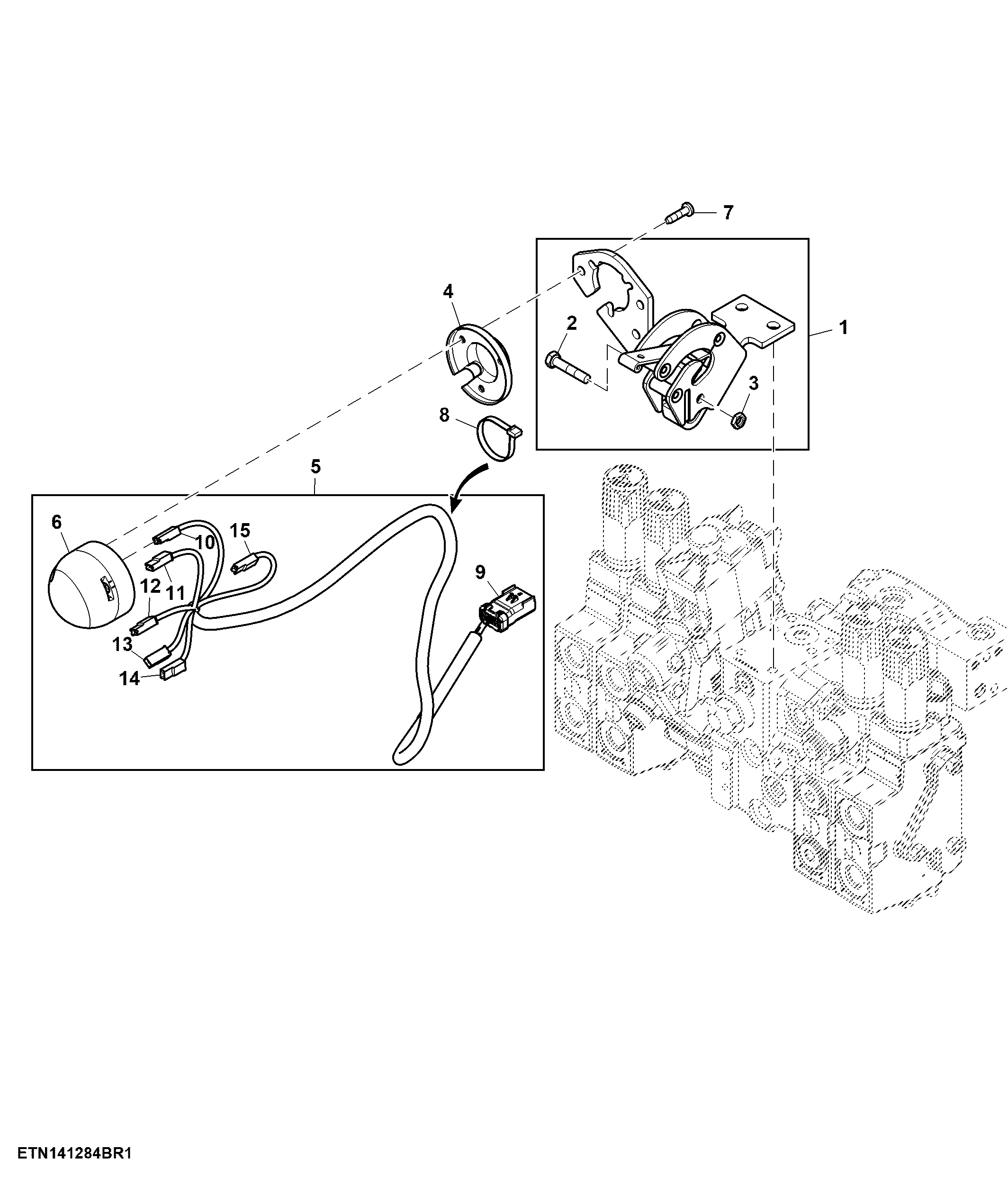

7-Pin Electric Socket, W/ Center Link Holder, Hook Type

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL201370	1	Holder	-
2	19M7301	1	Cap Screw	M8 X 40
3	14M7151	1	Nut	M8
4	L151611	1	Cover	-
5	AL207532	1	Wiring Harness	ORDER AL232695
5	AL232695	1	Wiring Harness	-
6	57M9063	1	Elec. Connector Housing	7-Terminal Power Outlet Socket Rear, X005
7	37M7193	3	Screw	-
8	57M12234	1	Elec. Connector Accessory	-
9	57M8572	4	Elec. Connector Cavity Plug	Cavity 1, 8, 9, 10
9	57M10525	2	Elec. Connector Terminal	Cavity 3, 7
9	57M10524	4	Elec. Connector Terminal	Cavity 2, 4, 5, 6
9	57M10300	1	Elec. Connector Housing	Connection point on wiring harness W030, X1235M-1
10	57M7170	1	Elec. Connector Housing	7-Terminal Power Outlet Socket Rear, X005-1
10	57M7089	1	Elec. Connector Terminal	Cavity A
11	57M7170	1	Elec. Connector Housing	7-Terminal Power Outlet Socket Rear, X005-3
11	57M7106	1	Elec. Connector Terminal	Cavity A
12	57M7170	1	Elec. Connector Housing	7-Terminal Power Outlet Socket Rear, X005-4
12	57M7089	1	Elec. Connector Terminal	Cavity A
13	57M7170	1	Elec. Connector Housing	7-Terminal Power Outlet Socket Rear, X005-5
13	57M7089	1	Elec. Connector Terminal	Cavity A
14	57M7170	1	Elec. Connector Housing	7-Terminal Power Outlet Socket Rear, X005-6
14	57M7106	1	Elec. Connector Terminal	Cavity A
15	57M7170	1	Elec. Connector Housing	7-Terminal Power Outlet Socket Rear, X005-7
15	57M7089	1	Elec. Connector Terminal	Cavity A

7-Pin Electric Socket, W/ Center Link Holder, Hook Type
