Steering Controls, AutoTrac™ Universal 300, PowrReverser™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	Steering Wheel
2	L100436	2	Washer	-
3	PFP19123	1	Knob	-
4	B3690R	1	O-Ring	-
5	T17148	1	Lock Washer	-
6	RE258807	1	Tie Band	-
7	PFP17707	1	Cover	Sprocket
8	PF12006	1	Wear Ring	-
9	PFA11841	1	Motor Kit	-
10	M85517	1	Grommet	-
11	GX26021	12	Socket Head Screw	-
12	PFA11385	1	Cover	Motor Cover
13	PF12236	2	Clamp	-
14	57M8021	1	Electrical Connector Assy	Internal Resume C01
14	57M8022	1	Elec.Connect Locking Device	-
14	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
15	57M8021	1	Electrical Connector Assy	Internal Resume Switch
15	Z78008	2	Elec. Connector Seal	-
15	57M8022	1	Elec.Connect Locking Device	-
16	57M14708	1	Elec. Connector Housing	Switch 01 C02
17	RE52952	1	Clamp	-
18	57M14708	1	Elec. Connector Housing	Switch 02 C03
19	PF12415	1	Bracket	Anti Rotation
20	PFA11989	1	Harness Kit	-
21	57M9800	1	Elec. Connector Housing	Motor C01
21	57M9809	12	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
22	57M12321	1	Elec. Connector Terminal	Ground C04
23	57M14637	1	Elec. Connector Housing	Main C02
23	57M9809	18	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18
24	57M7621	1	Elec.Connect Locking Device	-
24	R78066	2	Elec. Connector Terminal	Cavity 1, 2
24	57M9717	1	Elec.Connect Locking Device	-
24	57M8023	1	Elec. Connector Housing	Internal Resume Switch C03
25	PFP17709	1	Roller Chain	Links = 54
26	21M7577	4	Socket Head Screw	M6 X 16
27	24M7054	2	Washer	6.400 X 12 X 1.600 mm
28	14M7209	1	Nut	M18
29	14M7166	1	Lock Nut	M8
30	PF12168	1	Hub	-
31	PF12460	1	Bracket	Anti Rotation

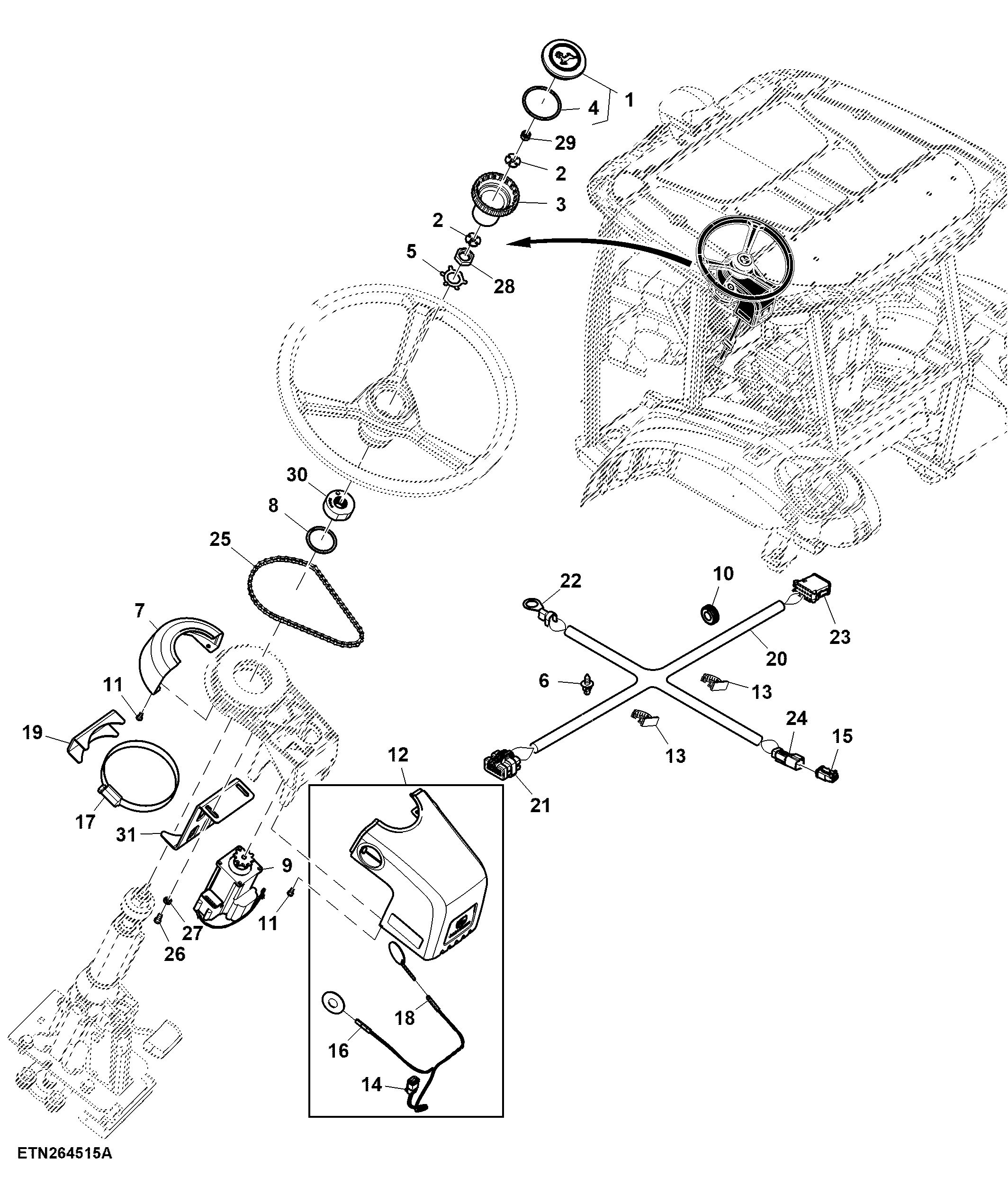

Steering Controls, AutoTrac™ Universal 300, PowrReverser™
