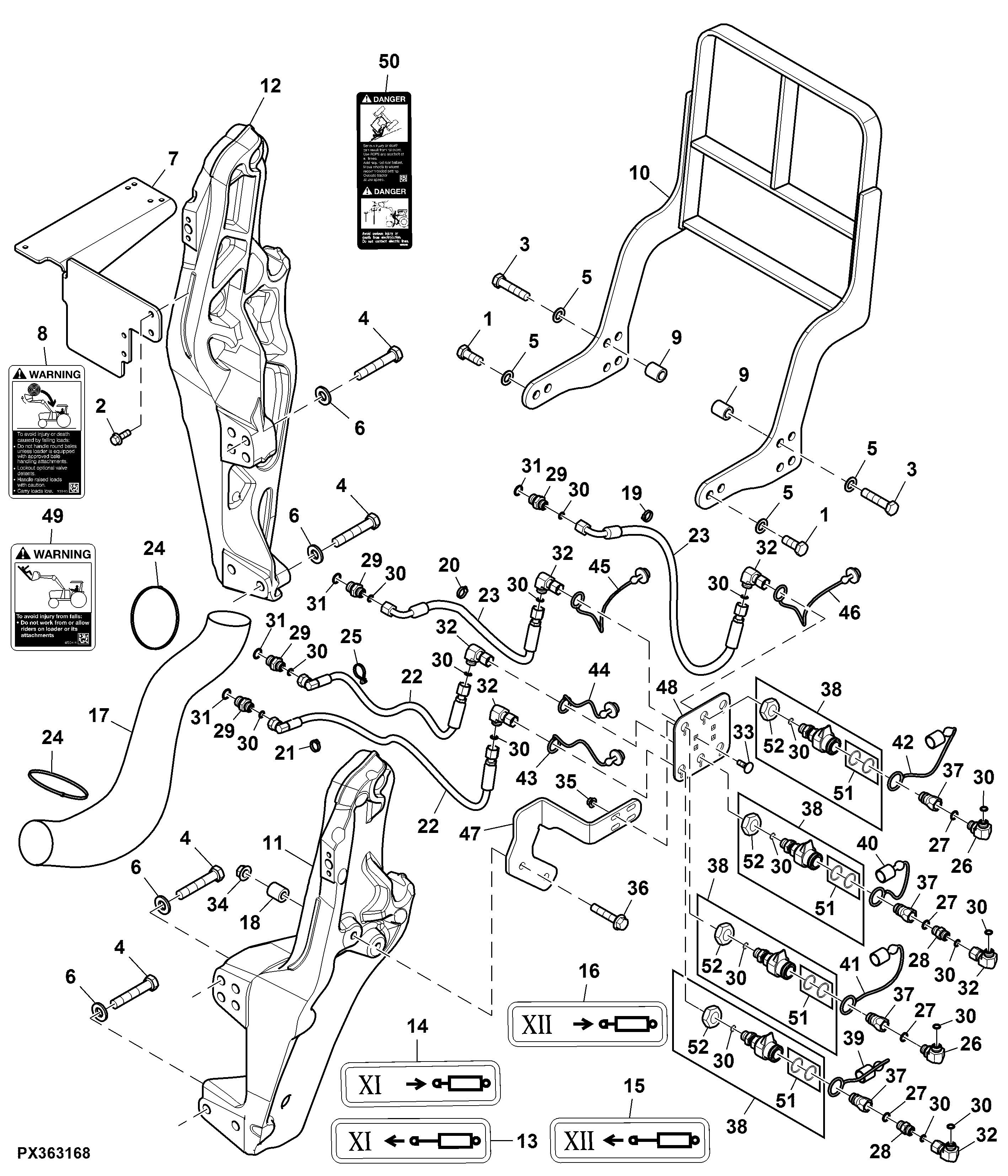

Hood Guard and 2-Function Loader Mounting Frame

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7597	2	Cap Screw	M20 X 50
2	19M7790	2	Screw	M12 X 35
3	19M8147	4	Cap Screw	M20 X 90
4	19M9413	12	Cap Screw	M20 X 110
5	24M7090	6	Washer	22 X 37 X 3 mm
6	24M7242	12	Washer	21.400 X 42 X 5 mm
7	AW34738	1	Bracket	INCLUDES W55818
8	W55413	1	Label	Warning
9	W49106	4	Bushing	-
10	AW35760	1	Guard	-
11	W55234	1	Frame	RH
12	W55233	1	Frame	LH
13	W54612	1	Label	Coupler XI, Extend
14	W54613	1	Label	Coupler XI, Retract
15	W54614	1	Label	Coupler XII, Extend
16	W54615	1	Label	Coupler XI, Retract
17	W45680	1	Hose Guard	LGTH = 1950 mm
18	L77331	2	Bushing	-
19	R155996	1	Tie Band	LGTH = 1950 mm
20	R155997	1	Tie Band	-
21	R155998	1	Tie Band	-
22	AW35676	2	Hydraulic Hose	LGTH = 1250 mm
23	AW35677	2	Hydraulic Hose	LGTH = 1350 mm
24	R105388	2	Tie Band	-
25	R44302	1	Tie Band	-
26	38H1005	2	Elbow Fitting	-
27	R26375	4	O-Ring	-
28	38H1161	2	Adapter Fitting	-
29	38H5076	4	Adapter Fitting	-
30	T77857	16	O-Ring	-
31	51M7045	4	O-Ring	19.300 X 2.200 mm
32	38H1095	6	Elbow Fitting	-
33	03M7085	2	Bolt	M10 X 30
34	14M7291	2	Flange Nut	M16
35	14M7334	2	Flange Nut	M10
36	19M7827	2	Screw	M16 X 80
37	AR94522	4	Hydr. Quick Coupler Plug	-
38	AW31998	4	Hyd. Quick-Connect Coupler	-
39	W42410	1	Cap	Blue
40	W42411	1	Cap	Black
41	W42412	1	Cap	Red
42	W42413	1	Cap	Yellow
43	W42416	1	Plug	BLUE
44	W42417	1	Plug	Black
45	W42418	1	Plug	Red
46	W42419	1	Plug	Yellow
47	W58435	1	Bracket	-
48	W58436	1	Bracket	-
49	W55414	1	Label	Warning
50	W55818	1	Label	Danger
51	AW33193	4	Seal Kit	-

Hood Guard and 2-Function Loader Mounting Frame
