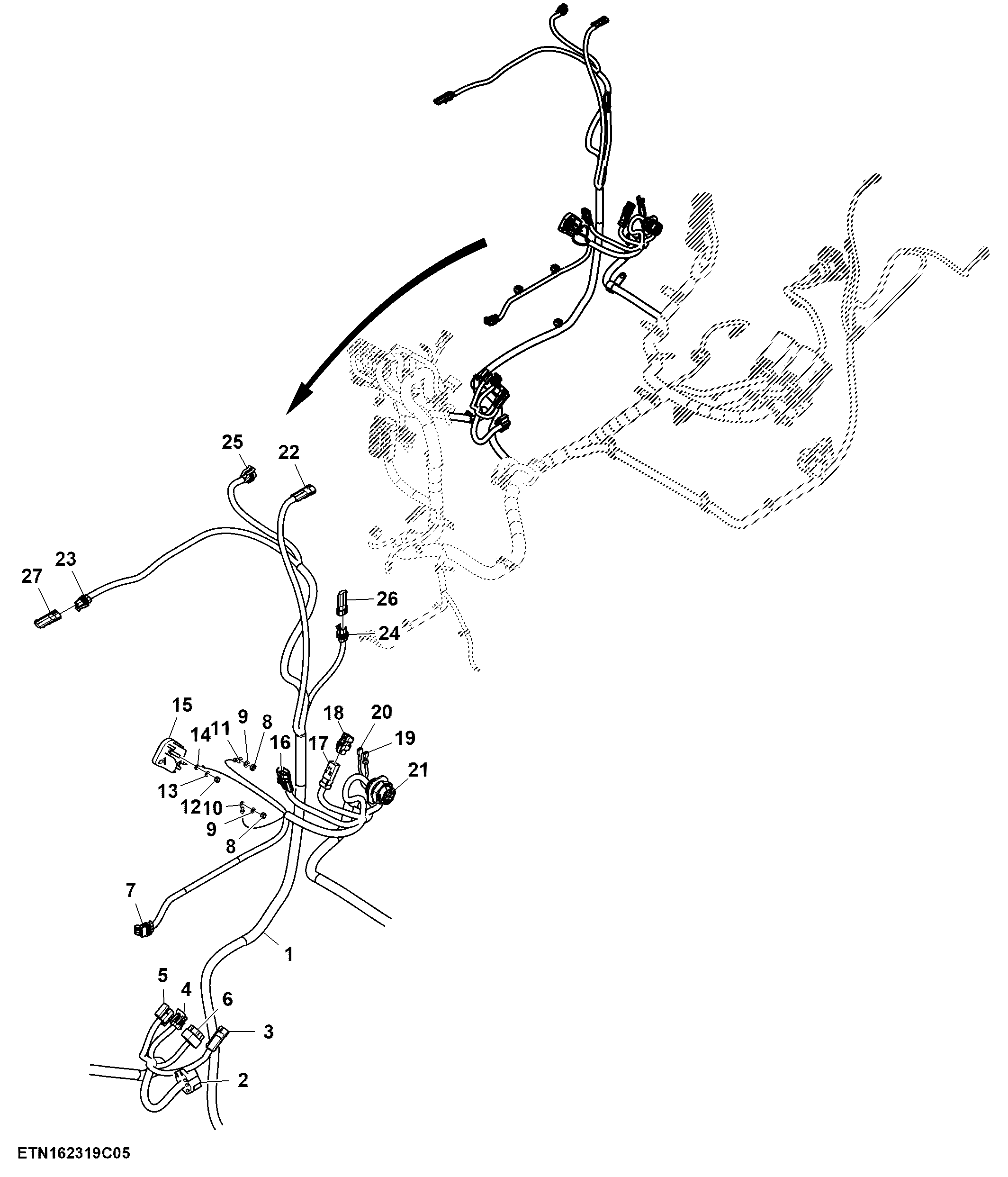

Chassis Wiring Harness, PowrReverser™, OOS, FT4, (5/6) ( - 012357)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ29249	1	Wiring Harness	-
2	57M8758	1	Elec. Connector Housing	Light Switch 46
2	57M7511	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, B
2	57M8757	4	Elec.Connect Locking Device	-
2	57M8759	1	Elec.Connect Locking Device	-
3	57M7985	1	Electrical Connector Assy	Roll Mode Switch 45
3	57M7289	1	Elec.Connect Locking Device	-
3	57M7495	2	Elec. Connector Terminal	Cavity A, B
3	57M9215	2	Elec. Connector Seal	Cavity A, B
4	57M7255	1	Elec. Connector Housing	Power Shuttle Pot 43
4	57M7290	1	Elec. Connector Accessory	-
4	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
4	57M9215	3	Elec. Connector Seal	Cavity A, B, C
5	57M7183	1	Elec. Connector Accessory	Turn Signal Switch 44
6	57M7896	1	Electrical Connector Assy	Hi/Lo Headlight Switch 47
6	57M7429	3	Elec. Connector Terminal	Cavity T, W, Y
7	57M7255	1	Elec. Connector Housing	Hi-Lo Shifter 9
7	57M9215	3	Elec. Connector Seal	Cavity A, B, C
7	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
7	57M7290	1	Elec. Connector Accessory	-
8	14M7297	1	Nut	M5
9	24M7087	1	Washer	5.500 X 10 X 1 mm
10	57M8875	1	Elec. Connector Terminal	Junction Block Ground 08B
11	57M8875	1	Elec. Connector Terminal	Junction Block power 08C
12	14M7194	1	Nut	M6
13	24M7088	1	Washer	6.600 X 12 X 1.600 mm
14	57M8871	1	Elec. Connector Terminal	Junction Block Accessory Power 08A
15	RE186986	1	Junction Block	-
16	57M9215	3	Elec. Connector Seal	Cavity A, B, C
16	57M7290	1	Elec. Connector Accessory	-
16	57M7257	1	Elec. Connector Housing	Rear PTO Switch
16	R104919	3	Elec. Connector Terminal	Cavity A, B, C
17	57M9776	1	Elec. Connector Housing	Chassis Can Terminator 06
17	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
18	57M9772	1	Elec. Connector Housing	-
19	57M10765	1	Elec. Connector Terminal	Power Outlet A 04A
20	57M10765	1	Elec. Connector Terminal	Power Outlet B 04B
21	57M9183	1	Elec. Connector Housing	-
21	57M9182	1	Nut	-
21	RE217864	1	Cap	-
21	N282069	4	Elec. Connector Terminal	Cavity A, B, C, D
22	57M9215	2	Elec. Connector Seal	Cavity A, B
22	R104919	2	Elec. Connector Terminal	Cavity A, B
22	57M7289	1	Elec.Connect Locking Device	-
22	57M7256	1	Elec. Connector Housing	Right Rear Warning Lamp 27
23	57M7254	1	Elec. Connector Housing	Right Front Work Lamp 29
23	57M7289	1	Elec.Connect Locking Device	-
23	R104846	2	Elec. Connector Terminal	Cavity A, B
23	57M7258	2	Elec. Connector Seal	Cavity A, B
24	57M7254	1	Elec. Connector Housing	Right Rear Work Lamp 26
24	57M7289	1	Elec.Connect Locking Device	-
24	R104846	2	Elec. Connector Terminal	Cavity A, B
24	57M7258	2	Elec. Connector Seal	Cavity A, B
25	57M7349	1	Elec. Connector Accessory	Right Tail Brake Turn Lamp 28
25	R104919	4	Elec. Connector Terminal	Cavity A, B, C, D
25	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
26	57M7256	1	Elec. Connector Housing	Cap 26
27	57M7256	1	Elec. Connector Housing	Cap 29
