Chassis Wiring Harness, PowrReverser™, OOS, FT4, (1/6) (012358 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7774	5	Screw	M6 X 12
2	37M7061	2	Screw	M5 X 20
3	M85319	1	Clip	-
4	MIA10189	1	Ground Cable	Ground Strap
5	19M7979	2	Screw	M8 X 55
6	19M7640	8	Cap Screw	M5 X 12
7	19M7864	2	Screw	M8 X 12
8	19M7862	1	Screw	M6 X 20
9	SU39477	1	Label	Load Center
10	SU30053	1	Cover	Electrical Controller
11	SJ20027	1	Wiring Harness	Battery Cable
12	R275915	1	Cover	Load Center
13	RE224165	1	Wiring Harness	Warning Horn Jumper
14	28H3394	1	Bushing	0.493" X 0.675" X 1/2"
15	24M7139	1	Washer	6.400 X 18 X 1.600 mm
16	14M7608	1	Flange Nut	M6
17	14M7298	11	Flange Nut	M8
18	19M7866	3	Screw	M8 X 20
19	SJ25589	1	Relay	12 V, Intermittent Duty Start
20	19M7865	5	Screw	M8 X 16
21	SJ39020	1	Wiring Harness	PowrReverser™
22	14M7303	6	Flange Nut	M6
23	57M9432	6	Clamp	-
24	57M8901	1	Elec. Connector Terminal	OOS Harness Power 1 01
24	57M8966	1	Elec. Connector Terminal	Cavity 1
24	57M9479	1	Elec.Connect Locking Device	-
25	57M8901	1	Elec. Connector Terminal	OOS Harness Power 1 02
25	57M9479	1	Elec.Connect Locking Device	-
25	57M8966	1	Elec. Connector Terminal	Cavity 1
26	57M8996	1	Elec. Connector Terminal	Warning Horn 01
27	57M8996	1	Elec. Connector Terminal	Warning Horn 02
28	57M8901	1	Elec. Connector Terminal	Fused Power 03
29	57M7254	1	Elec. Connector Housing	To Front Console 01
29	57M9880	1	Relay	-
29	R104846	2	Elec. Connector Terminal	Cavity A, B
30	57M8824	3	Elec. Connector Accessory	-
31	57M8827	1	Clamp	-
32	57M10912	1	Elec. Connector Accessory	-
33	57M11952	3	Elec. Connector Accessory	-
34	57M11168	3	Elec. Connector Accessory	-
35	CB01483609	4	Tie Band	-
36	SJ32522	1	Toggle/Rocker Switch	Remote PTO Enable W/ Backlight
37	R276202	1	Bracket	-
38	57M7260	1	Elec. Connector Housing	-
38	R104846	5	Elec. Connector Terminal	Cavity A, B, C, E, F
39	57M7291	1	Electrical Connector Assy	-

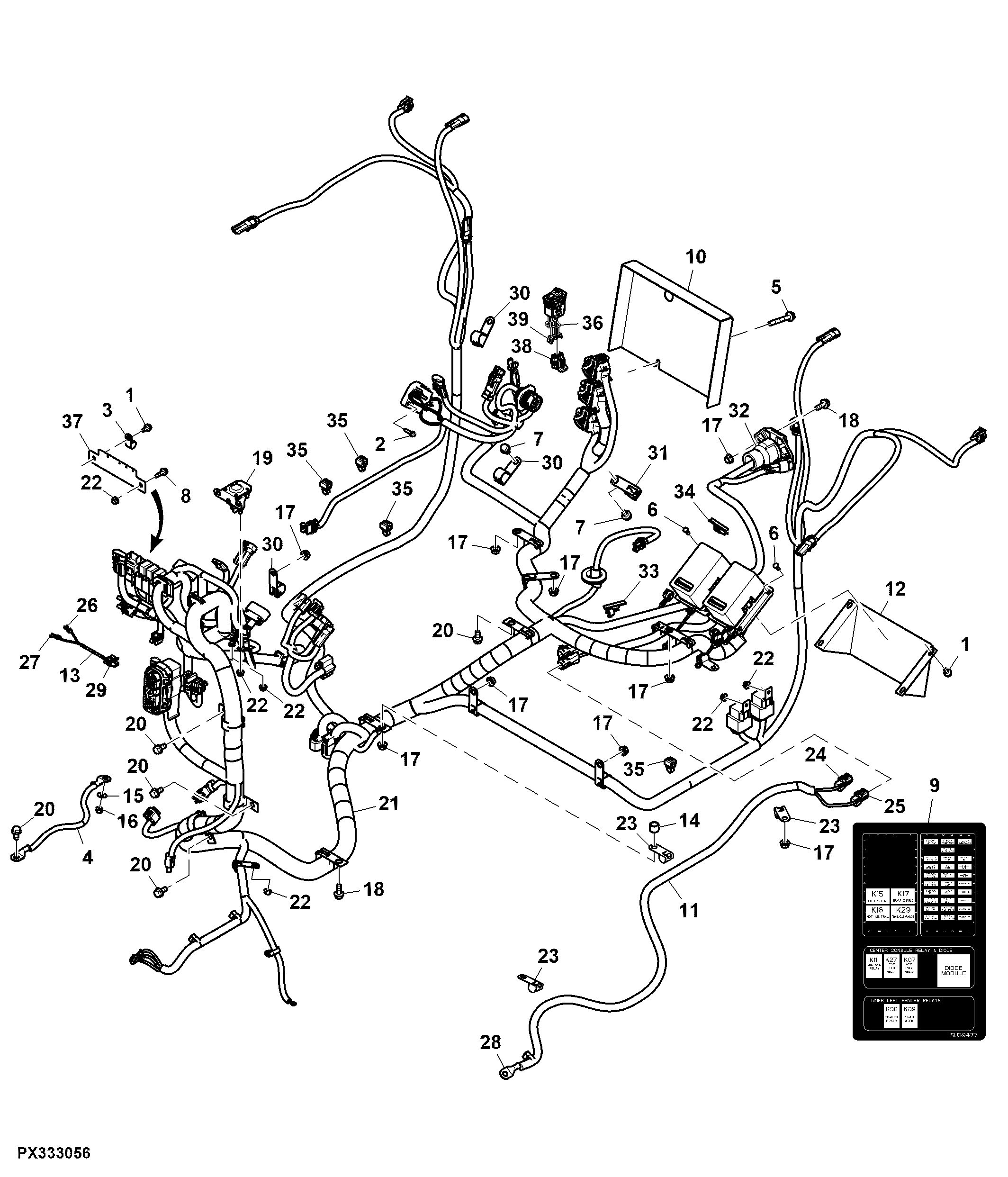

Chassis Wiring Harness, PowrReverser™, OOS, FT4, (1/6) (012358 - )
