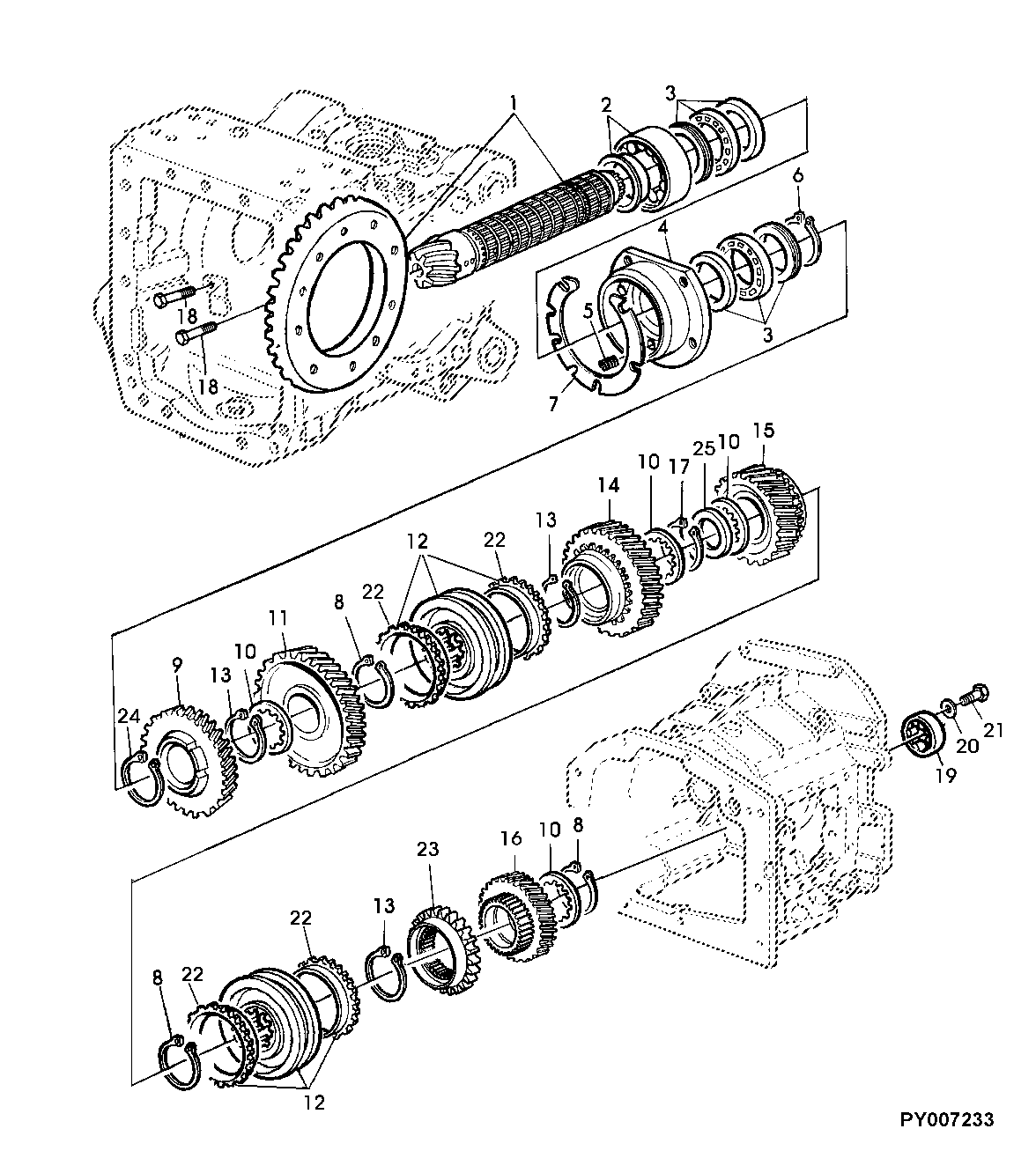

DIFF. DRIVE SHAFT/RING GEAR, 6-RANGE TRANSM. (9/51 OR 10/53 GEARING)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL166476	1	Bevel Gear Drive	Z= 9/51, (SUB FOR AL164690)
1	AL152326	1	Bevel Gear Drive	Z= 9/51, (ORDER AL166476, L173991)
1	AL164687	1	Bevel Gear Drive	Z= 10/53
1	AL152288	1	Bevel Gear Drive	Z= 10/53, (ORDER AL164687, L173991)
2	AL152075	1	Cylindrical Roller Bearing	(SUB FOR AL113714)
3	AL77434	2	Cylindrical Roller Bearing	-
4	L215100	1	Bearing Housing W/O Bearing	SUB FOR L156851
5	L77775	5	Compression Spring	-
6	L78072	1	Ring	TK= 2.60MM (0.102")
6	L78073	1	Ring	TK= 2.50MM (0.098")
6	L78071	1	Ring	TK= 2.70MM (0.106")
6	L78070	1	Ring	TK= 2.80MM (0.110")
6	L78069	1	Ring	TK= 2.90MM (0.114")
6	L173991	1	Snap Ring	TK= 3.00MM (0.118"), (SUB FOR 40M7268)
7	L157084	1	Shim	TK= 0.20MM (0.008"), (SUB FOR L115160)
7	L157085	1	Shim	TK= 0.30MM (0.012"), (SUB FOR L115161)
7	L157086	1	Shim	TK= 0.50MM (0.020"), (SUB FOR L115162)
8	L76923	3	Snap Ring	-
9	L168800	1	Pinion	Z= 50/16, (SUB FOR L154534)
10	L113339	1	Thrust Washer	TK= 4.15MM (0.163")
10	L153635	1	Thrust Washer	TK= 4.05MM (0.159")
10	L75917	1	Thrust Washer	TK= 3.80MM (0.149")
10	L76821	1	Thrust Washer	TK= 3.65MM (0.144")
10	L76822	1	Thrust Washer	TK= 3.95MM (0.155")
11	L213033	1	Helical Gear	Z= 63 MARKED L213033; SUB FOR L155892
12	AL157733	2	Synchronizer	-
13	L76923	1	Snap Ring	TK= 2.00MM (0.079")
13	L75906	1	Snap Ring	TK= 2.10MM (0.083")
13	L75905	1	Snap Ring	TK= 2.20MM (0.087")
13	L75904	1	Ring	TK= 2.30MM (0.090")
14	L213035	1	Helical Gear	Z= 60 MARKED L213035; SUB FOR L155893
15	L213037	1	Helical Gear	Z= 48 MARKED L213037; SUB FOR L168392
15	L155894	1	Gear	Z= 48, (MARKED L155894) (SUB FOR L153400)
16	L155895	1	Gear	Z= 39, (MARKED L155895) (SUB FOR L153460)
17	L173991	1	Snap Ring	TK= 3.00MM (0.118"), (SUB FOR 40M7268)
18	19M7156	4	Cap Screw	M10 X 60
19	L172927	1	Cylindrical Roller Bearing	(SUB FOR JD10494, L113451)
20	24M7332	1	Washer	8.400 X 23 X 4 mm
21	19M7162	1	Cap Screw	M8 X 16
22	L116130	4	Synchronizer	-
23	L155496	1	Gear	-
24	L76923	1	Snap Ring	TK= 2.00MM (0.079"), (FOR AL152326, AL152288)
24	L173991	1	Snap Ring	TK= 3.00MM (0.118"), (FOR AL166476, AL164687) (SUB FOR 40M7268 APPL)
25	L167749	1	Washer	-

DIFF. DRIVE SHAFT/RING GEAR, 6-RANGE TRANSM. (9/51 OR 10/53 GEARING)
