Открытый узел

Wiring Harness, Hydraulic Quick Connect Coupler, W/ Loader Working Lights or W/ Quick Unlatch Function

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L155583	1	Clamp	-
2	L210203	2	Clip	-
3	L210204	2	Tie Band	-
4	R44302	5	Tie Band	-
5	AL221623	1	Wiring Harness	-
6	57M7254	1	Elec. Connector Housing	Memo™ Function, X455F
6	57M8218	1	Elec. Connector Accessory	-
6	57M10770	2	Elec. Connector Terminal	Cavity A, B
6	57M9215	2	Elec. Connector Seal	Cavity A, B
7	57M10603	3	Elec. Connector Terminal	Cavity 1, 2, 3
7	57M10336	1	Elec. Connector Cavity Plug	-
7	57M9821	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W911 and W912, X445M
8	57M7263	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W901 and W912, X312M
8	57M7252	5	Elec. Connector Terminal	Cavity A, B, D, E, F
8	57M9215	5	Elec. Connector Seal	Cavity A, B, D, E, F
8	57M7259	1	Elec. Connector Seal	Cavity C
9	57M7985	1	Electrical Connector Assy	Connection Point between Wiring Harnesses W901 and W912, X423M
9	57M8218	1	Elec. Connector Accessory	-
9	57M7252	2	Elec. Connector Terminal	Cavity A, B
9	57M9215	2	Elec. Connector Seal	Cavity A, B

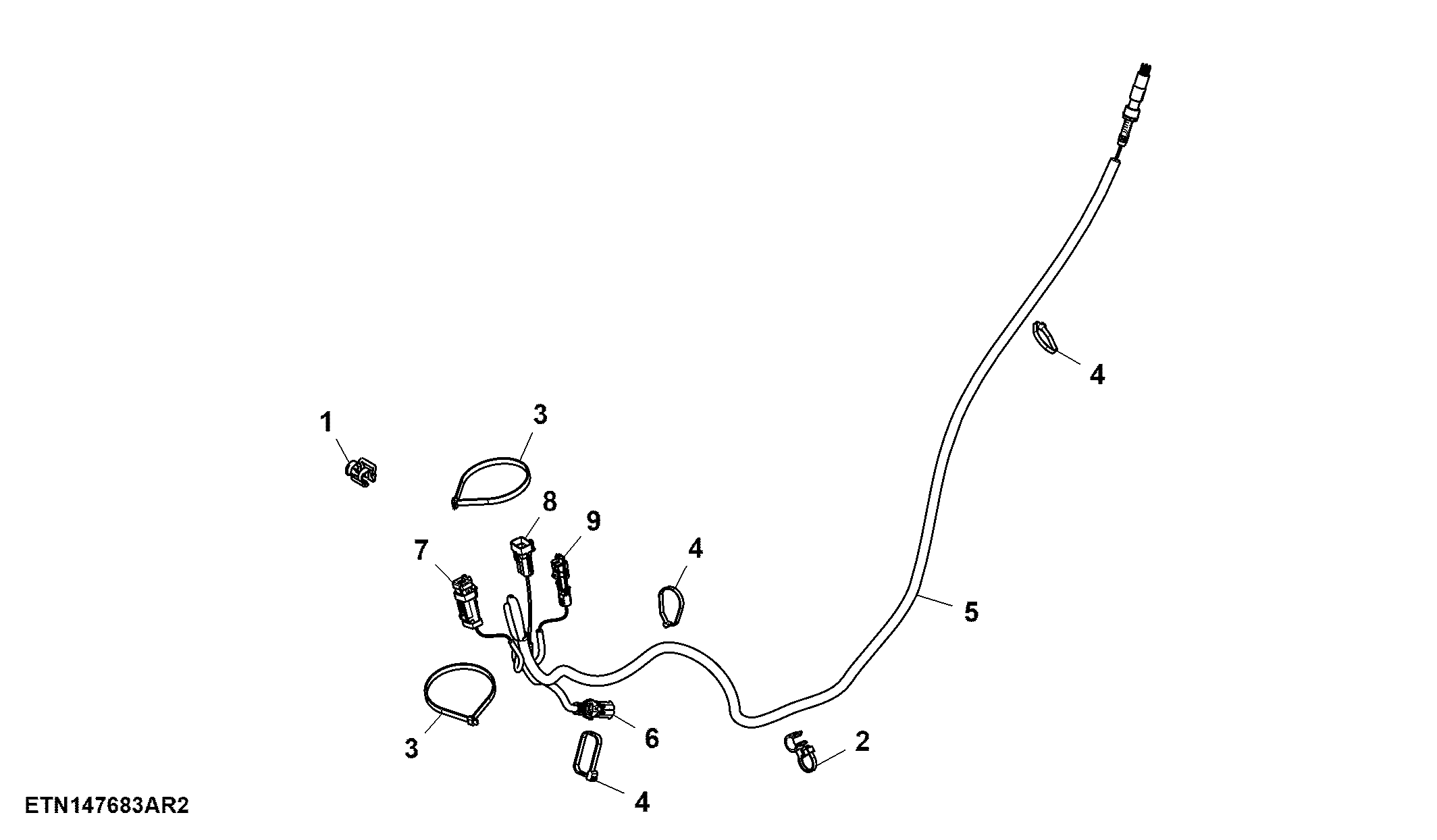

Wiring Harness, Hydraulic Quick Connect Coupler, W/ Loader Working Lights or W/ Quick Unlatch Function
