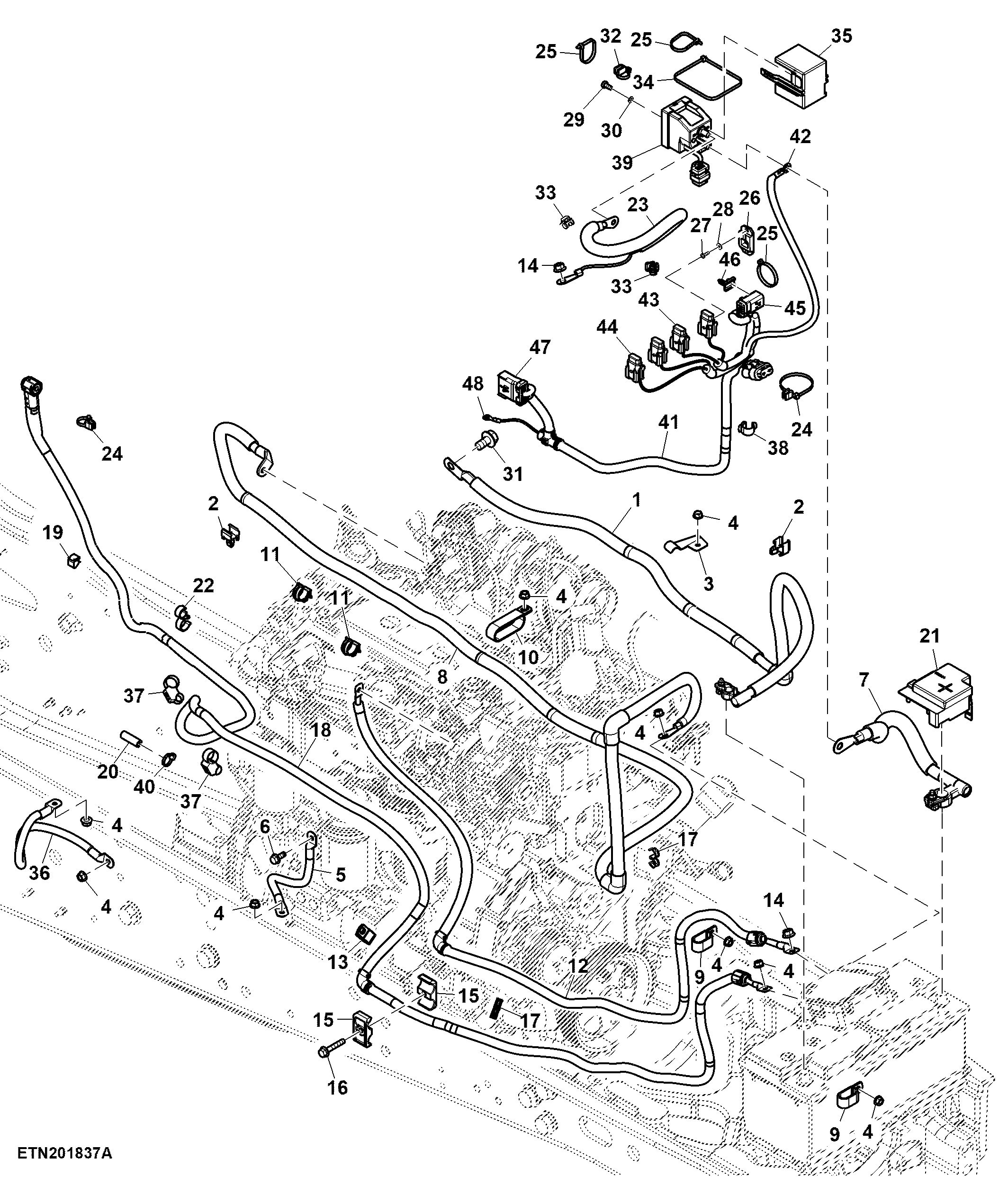

Cable, Battery, 110 Ah, W/ Cut-Off Relay (937676 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL213011	1	Battery Cable	Battery Negative
2	L153768	3	Clip	-
3	AL215909	1	Bracket	-
4	14M7298	10	Flange Nut	M8
5	AL210703	1	Battery Cable	Engine to Main Frame Negative
6	19M7866	1	Screw	M8 X 20
7	AL213010	1	Battery Cable	Battery Positive
8	AL210271	1	Battery Cable	Power Supply to Starter
9	R49921	2	Clamp	-
10	AL118382	1	Clamp	-
11	L210301	2	Clamp	-
12	AL222163	1	Battery Cable	Power Supply to Alternator
13	AH97280	1	Clip	-
14	14M7296	2	Flange Nut	M10
15	L110815	2	Clamp	-
16	19M8290	1	Screw	M6 X 35
17	L206766	3	Clamp	-
18	AL221890	1	Battery Cable	Power Supply to Cab
19	L115766	1	Clamp	-
20	L217565	1	Hose	-
21	L212875	1	Cap	-
22	AL159725	5	Clamp	-
23	AL210280	1	Battery Cable	Cut-Off Relay to Power Supply
24	L206645	2	Tie Band	-
25	57M12234	3	Elec. Connector Accessory	-
26	57M8093	1	Fuse Holder	-
27	21M7435	2	Screw	M4 X 12
28	24M7146	2	Washer	4.300 X 12 X 1 mm
29	19M6614	2	Cap Screw	M6 X 12
30	12M7133	2	Lock Washer	6 mm
31	19M8672	1	Screw	M14 X 25
32	L171035	1	Tie Band	-
33	L171201	2	Clip	-
34	57M14447	1	Elec. Connector Accessory	-
35	L218252	1	Cover	-
36	AL205714	1	Battery Cable	Cab to Main Frame Negative
37	R213663	2	Clamp	-
38	L169020	1	Clip	-
39	AL227565	1	Relay	-
40	57M12235	1	Elec. Connector Accessory	-
41	AL222909	1	Wiring Harness	-
42	57M7894	1	Elec. Connector Terminal	Battery Cut-Off Relay, X326F-2
43	57M8058	2	Elec. Connector Terminal	-
43	57M7146	1	Fuse	Green, 30 A
43	57M8435	1	Fuse Holder	Fuse for Engine Control Unit, F028
44	57M8115	1	Fuse Holder	Battery Break Off Fuse, F031
44	57M8057	1	Elec. Connector Terminal	Cavity 1
44	57M8058	1	Elec. Connector Terminal	Cavity 2
45	57M9796	1	Elec. Connector Housing	Battery Cut-Off Relay, X326M-1
45	57M10603	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8
45	57M10336	1	Elec. Connector Cavity Plug	Cavity 7
46	57M9940	1	Elec. Connector Accessory	-
47	57M10298	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W011, X547M
47	57M10525	5	Elec. Connector Terminal	Cavity 1, 3, 5, 6, 7
47	57M10524	5	Elec. Connector Terminal	Cavity 4, 8, 9, 10, 11
47	57M8572	4	Elec. Connector Cavity Plug	Cavity 2, 12, 13, 14
48	57M7079	1	Elec. Connector Terminal	Ground Point, XGND56

Cable, Battery, 110 Ah, W/ Cut-Off Relay (937676 - )
