Multi-Function Lever, Mechanical SCV, W/ 3-Functions, W/ Diverter Shifting, W/ Memo Button, W/ Front-Loader Dampening

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ13428	1	Bracket	-
2	03M7183	3	Bolt	M8 X 16
3	14M7416	5	Flange Nut	M8
4	AL213538	1	Multi-Functional Controller	ORDER SJ30209
4	SJ30209	1	Multi-Functional Controller	-
5	AL213534	1	Control Lever	ORDER SJ30205
5	SJ30205	1	Control Lever	-
6	L212228	1	Boot	-
7	19M9730	1	Screw	M6 X 45
8	AL208296	1	Wiring Harness	-
9	AL208273	1	Wiring Harness	-
10	37M7095	2	Screw	-
11	AL212355	1	Handle	-
12	37M7389	4	Screw	-
13	19M8039	2	Screw	M8 X 80
14	W31909	1	Instruction Plate	-
15	L208076	1	Housing	-
16	L200543	1	Tie Band	-
17	L32394	2	Cap	-
18	57M7400	2	Elec. Connector Seal	Cavity 1, 2
18	57M7406	1	Elec. Connector Housing	Connector of Diverter Valve 2 on Front-Mounted Implement, X1270M
18	57M7393	2	Elec. Connector Terminal	Cavity 1, 2
19	57M7406	1	Elec. Connector Housing	Connector of Diverter Valve 1 on Front-Mounted Implement, X1269M
19	57M7393	2	Elec. Connector Terminal	Cavity 1, 2
19	57M7400	2	Elec. Connector Seal	Cavity 1, 2
20	57M7328	1	Elec. Connector Housing	Connection Point Between the W741/1 Harness and Front Loader Harness (Hitch Dampening), X1278F
20	57M8218	1	Elec. Connector Accessory	-
20	R104846	2	Elec. Connector Terminal	Cavity A, B
20	57M7493	2	Elec. Connector Seal	Cavity A, B
20	57M7259	2	Elec. Connector Seal	-
21	57M9424	1	Elec.Connect Locking Device	-
21	57M7259	1	Elec. Connector Seal	-
21	57M7493	3	Elec. Connector Seal	Cavity A, B, F
21	R104846	3	Elec. Connector Terminal	Cavity A, B, F
21	57M7260	1	Elec. Connector Housing	Connection Point Between the W741/1 Harness and Front Loader Harness (Diverter Valve / Memo Function), X1268F
22	57M7256	1	Elec. Connector Housing	Connection Point on Wiring Harness W721, X37M
22	57M7289	1	Elec.Connect Locking Device	-
22	57M11342	2	Elec. Connector Terminal	Cavity A, B
22	57M7493	2	Elec. Connector Seal	Cavity A, B
22	57M7259	1	Elec. Connector Seal	-
23	57M8218	1	Elec. Connector Accessory	-
24	L114840	1	Cap	-

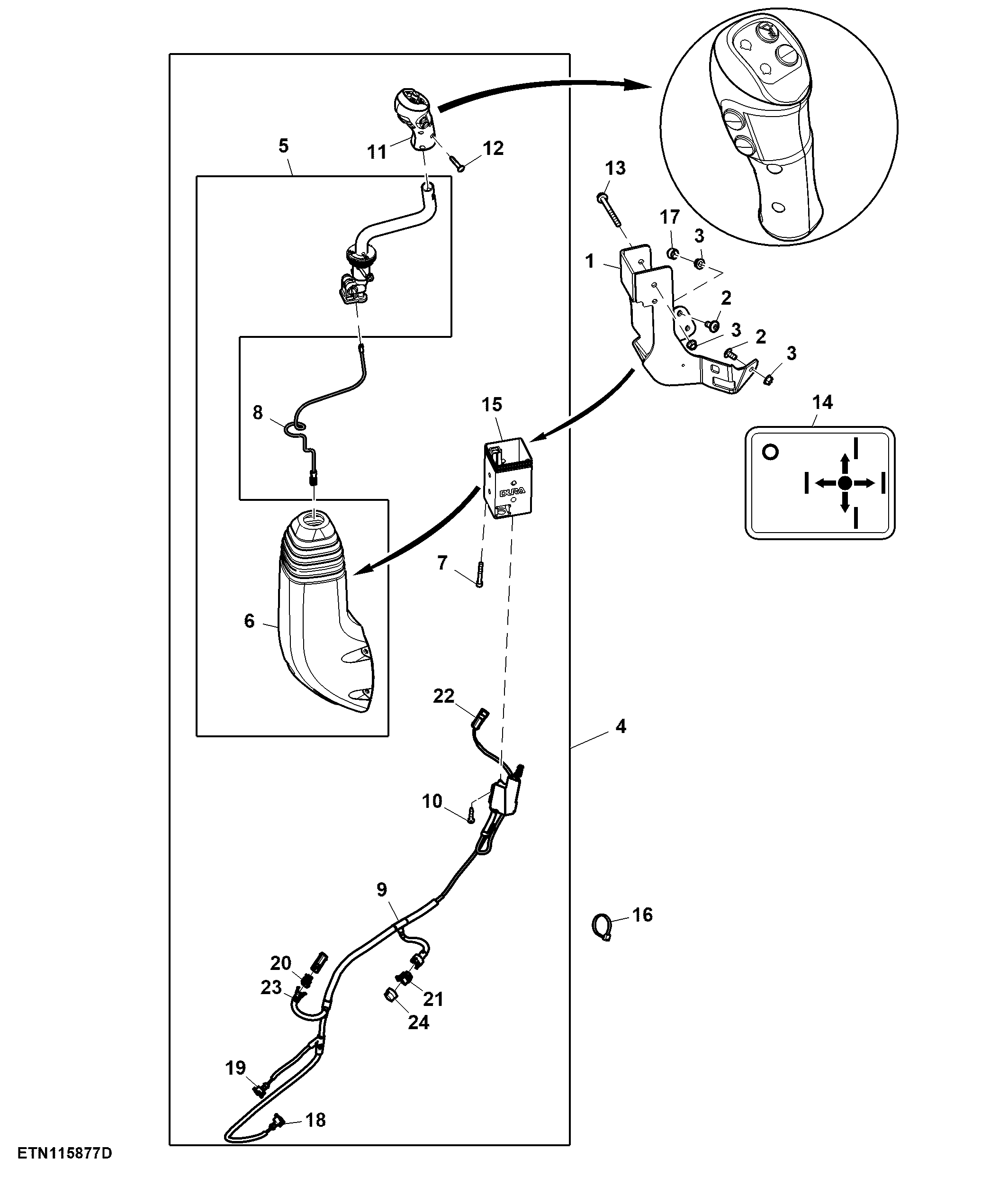

Multi-Function Lever, Mechanical SCV, W/ 3-Functions, W/ Diverter Shifting, W/ Memo Button, W/ Front-Loader Dampening
