Cable, Battery, W/ Cut-Off Switch, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16132	1	Switch	-
2	AL222909	1	Wiring Harness	-
3	57M7079	1	Elec. Connector Terminal	Ground Point, XGND56
4	57M10298	1	Elec. Connector Housing	Connection Point on Wiring Harness W011 with Battery Cut-off Switch, X547M
4	57M10525	5	Elec. Connector Terminal	Cavity 1, 3, 5, 6, 7
4	57M10524	5	Elec. Connector Terminal	Cavity 4, 8, 9, 10, 11
4	57M8572	4	Elec. Connector Cavity Plug	Cavity 2, 12, 13, 14
5	57M8115	1	Fuse Holder	Fuse, F031
5	57M8057	1	Elec. Connector Terminal	Cavity 1
5	57M8058	1	Elec. Connector Terminal	Cavity 2
6	57M12075	1	Elec. Connector Housing	Fuse, F029
6	99M7065	1	Fuse	-
6	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
7	57M8435	1	Fuse Holder	Fuse, F028
7	57M7146	1	Fuse	-
7	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
8	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
8	57M12075	1	Elec. Connector Housing	Fuse, F027
8	99M7065	1	Fuse	-
9	57M11279	1	Elec. Connector Housing	Connection for Wiring Harness of Voltage Supply With and Without Battery Cut-off Switch W011, X547F-1
10	57M7894	1	Elec. Connector Terminal	Battery Cut-Off Relay, X326F-2
11	57M9796	1	Elec. Connector Housing	Battery Cut-Off Relay, X326M-1
11	57M9940	1	Elec. Connector Accessory	-
11	57M10603	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8
11	57M10336	1	Elec. Connector Cavity Plug	Cavity 7
12	AL227565	1	Relay	SUB FOR AL219977
13	AL210280	1	Battery Cable	-
14	L206766	2	Clamp	-
15	14M7296	1	Flange Nut	M10
16	R44302	3	Tie Band	-
17	L206645	1	Tie Band	-
18	19M6614	1	Cap Screw	M6 X 12
19	12M7133	2	Lock Washer	6 mm
20	L218252	1	Cover	-
21	L171201	1	Clip	-
22	L171035	1	Tie Band	-

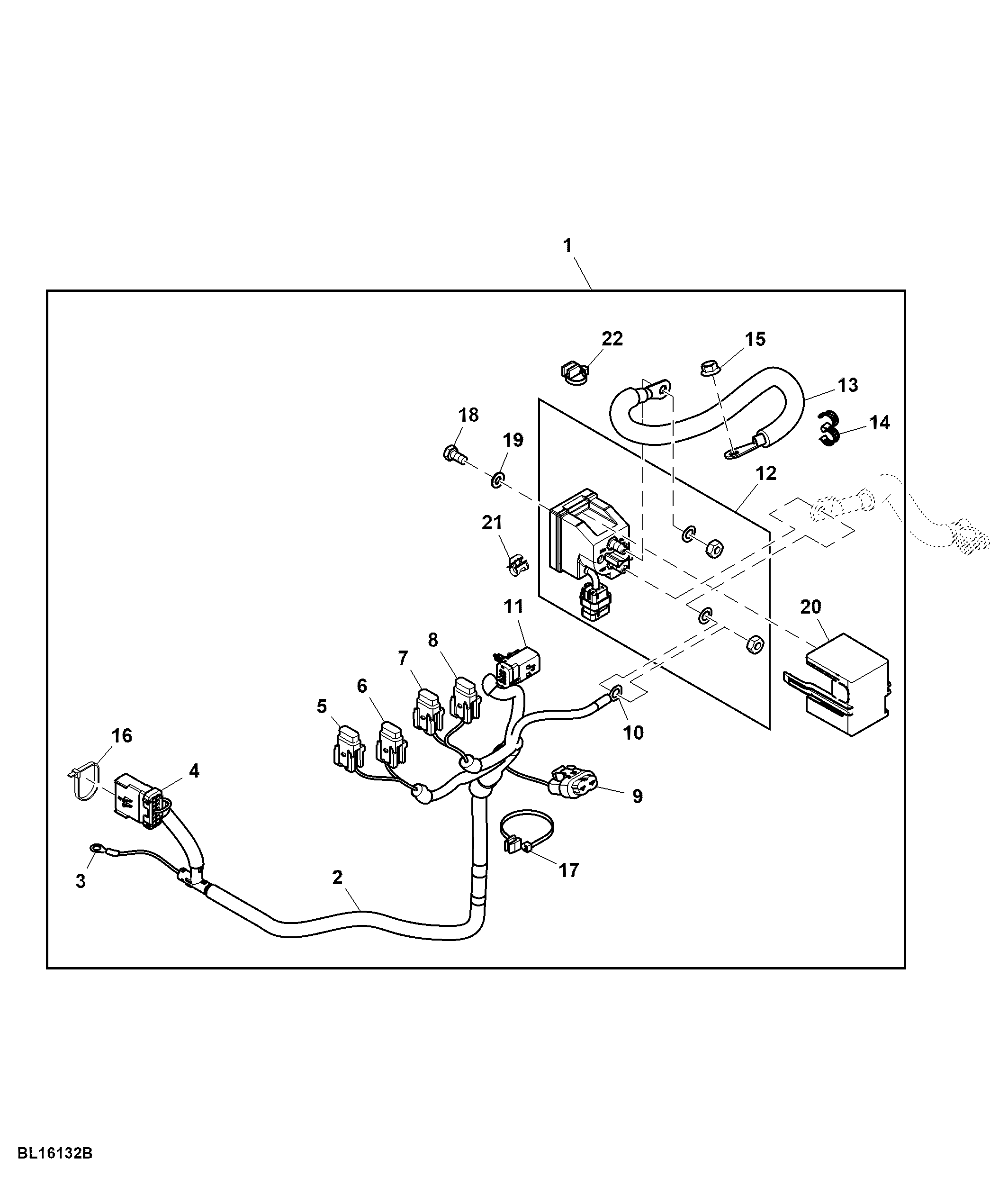

Cable, Battery, W/ Cut-Off Switch, Attachment
