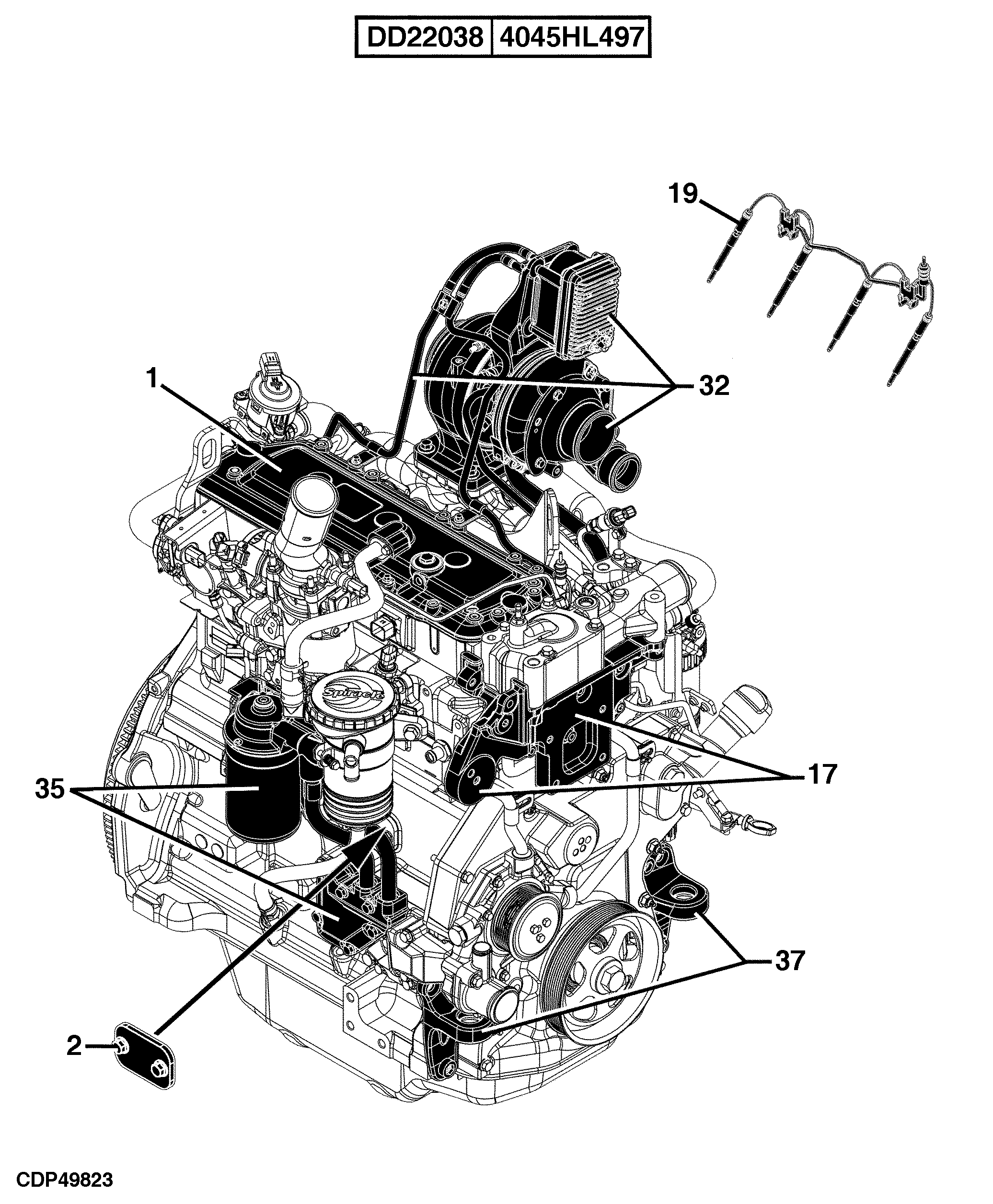

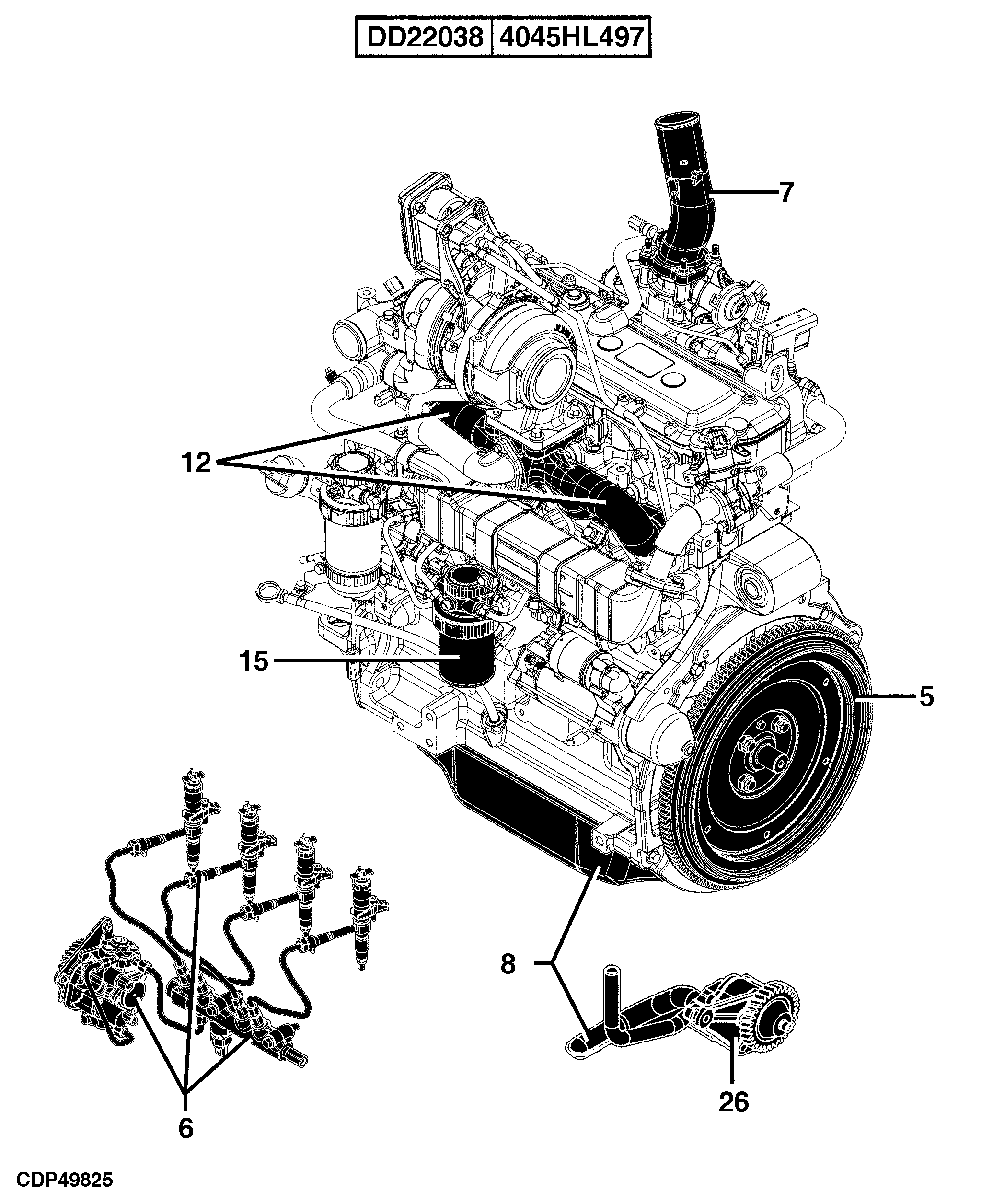

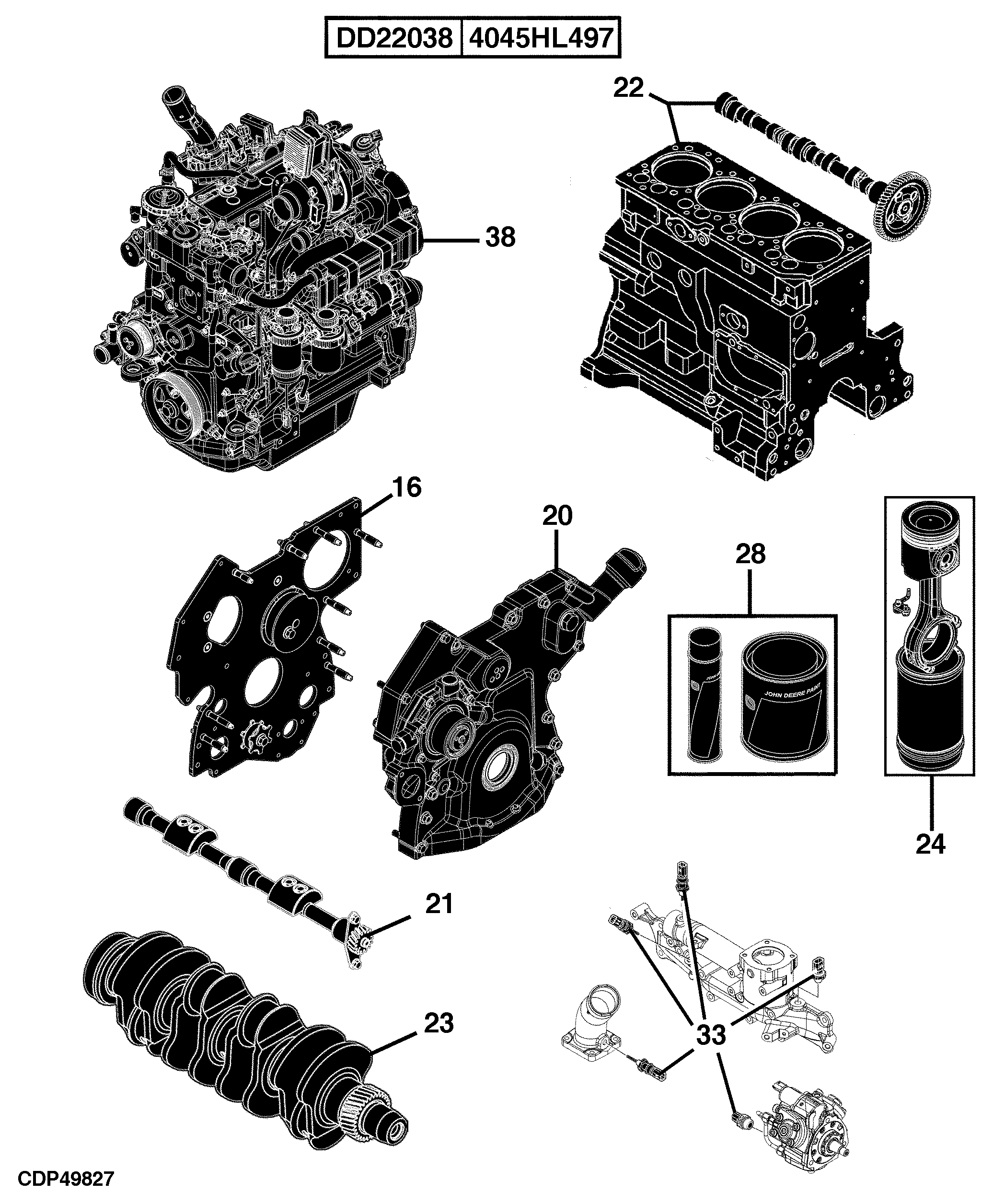

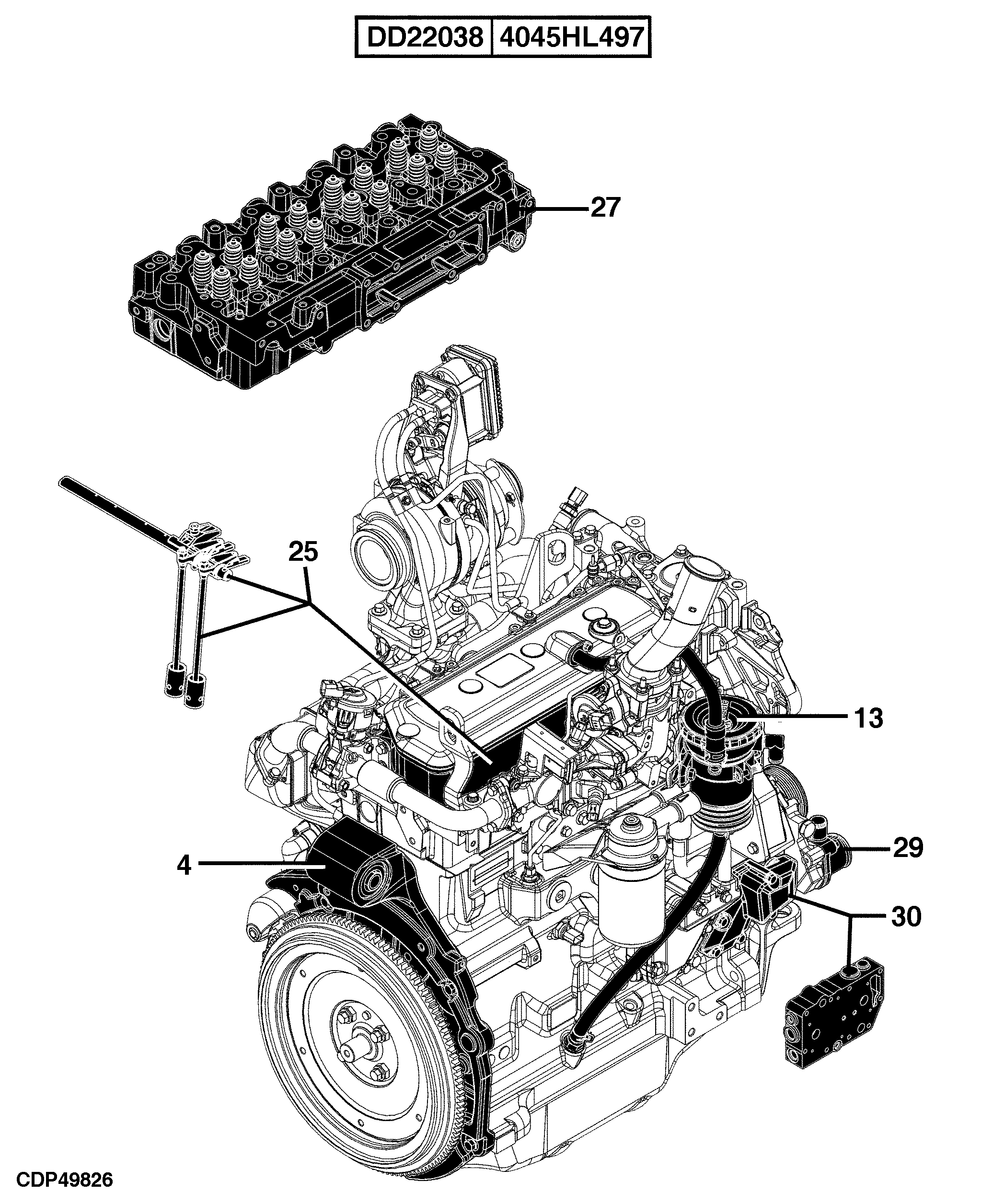

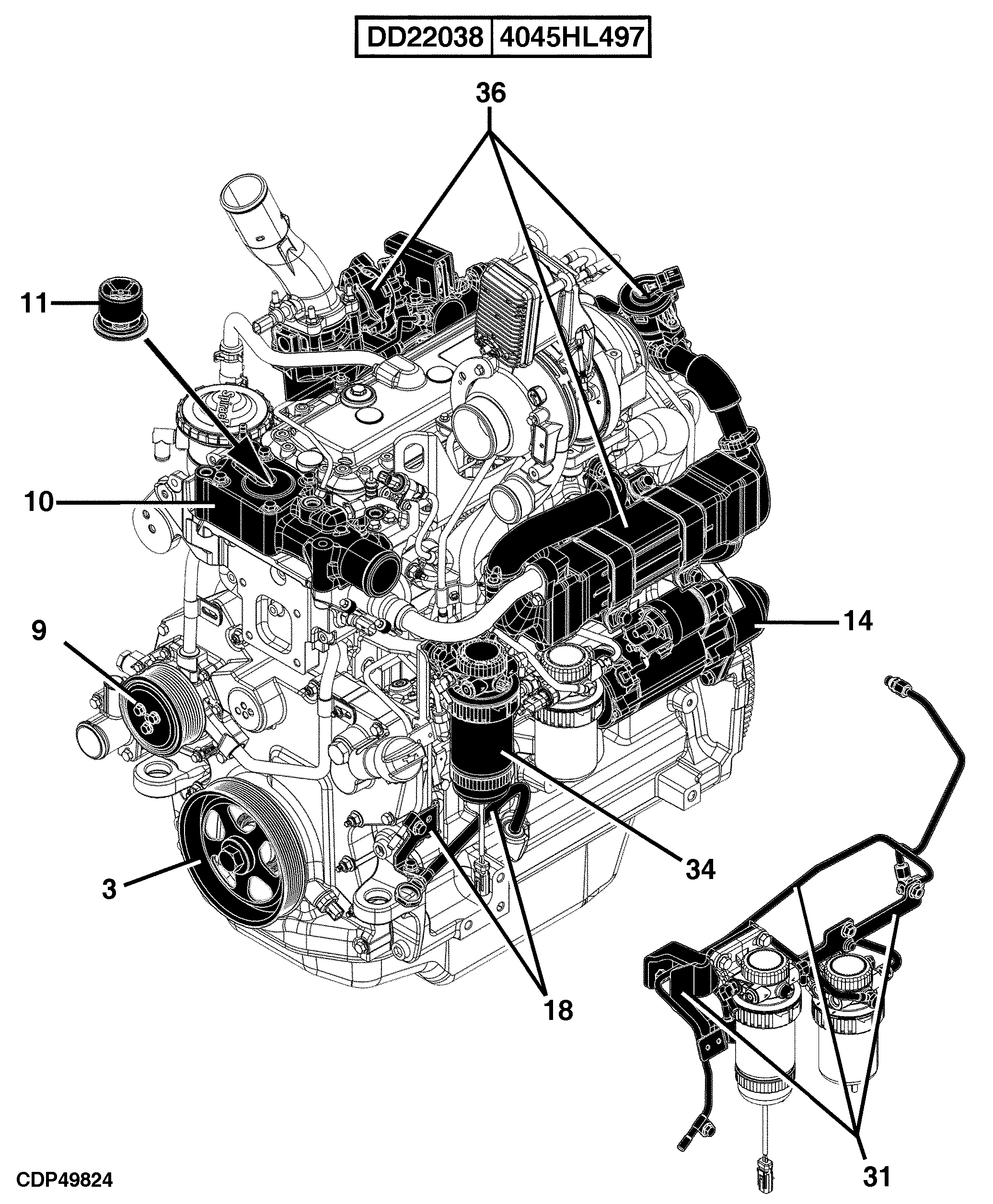

20 Engine 4045HL497-DD22038-ETN65521-ETN65522-ETN74306

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Engine Overhaul Gasket Kit (1/3)	-
-	-	1	63DW Low Pressure Fuel Lines	-
-	-	1	65ZV Turbocharger	-
-	-	1	6763 Engine Sensors	-
-	-	1	81BD Primary Fuel Filter	-
-	-	1	84CH Engine Wiring Harness	-
-	-	1	880G Engine Oil Filter	-
-	-	1	8929 Exhaust Gas Recirculation (EGR)	-
-	-	1	95AU Engine Front Brackets	-
-	-	1	9853 Lift Straps Hardware	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Engine Coolant Pump Kit	-
-	-	1	6117 Exhaust Filter / Diesel Particulate Filter	-
-	-	1	9901 Engine Overhaul Gasket Kit (2/3)	-
-	-	1	9901 Engine Overhaul Gasket Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Gasket Kit	-
-	-	1	9901 Injection Nozzle	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	3612 Front Plate	-
-	-	1	1297 Oil Filler Cover	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	1448 Flywheel Housing	-
-	-	1	1594 Flywheel	-
-	-	1	16ES Fuel Injection Pump	-
-	-	1	17DU Air Intake	-
-	-	1	1975 Oil Pan	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	2180 Thermostat Cover	-
-	-	1	2228 Thermostat	-
-	-	1	2854 Exhaust Manifold	-
-	-	1	2979 Ventilating System	-
-	-	1	3095 Starter Motor (010775 - )	-
-	-	1	30BE Starting Motor ( - 010774)	-
-	-	1	35FU Final Fuel Filter	-
-	-	1	1183 Valve Cover	-
-	-	1	3941 Thermostat Housing	-
-	-	1	4040 Engine Oil Dipstick	-
-	-	1	4356 Starting Aid	-
-	-	1	4464 Timing Gear Cover and Water Pump	-
-	-	1	4501 Balancer Shaft	-
-	-	1	4671 Cylinder Block	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	4849 Connecting Rods and Pistons	-
-	-	1	4914 Valve Actuating Mechanism	-
-	-	1	5024 Engine Oil Pump	-
-	-	1	5138 Cylinder Head With Valves	-
-	-	1	5602 Green Paint	-
-	-	1	5715 Water Pump Inlet	-
-	-	1	5903 Engine Oil Cooler	-

20 Engine 4045HL497-DD22038-ETN65521-ETN65522-ETN74306

Нет текстового описания
