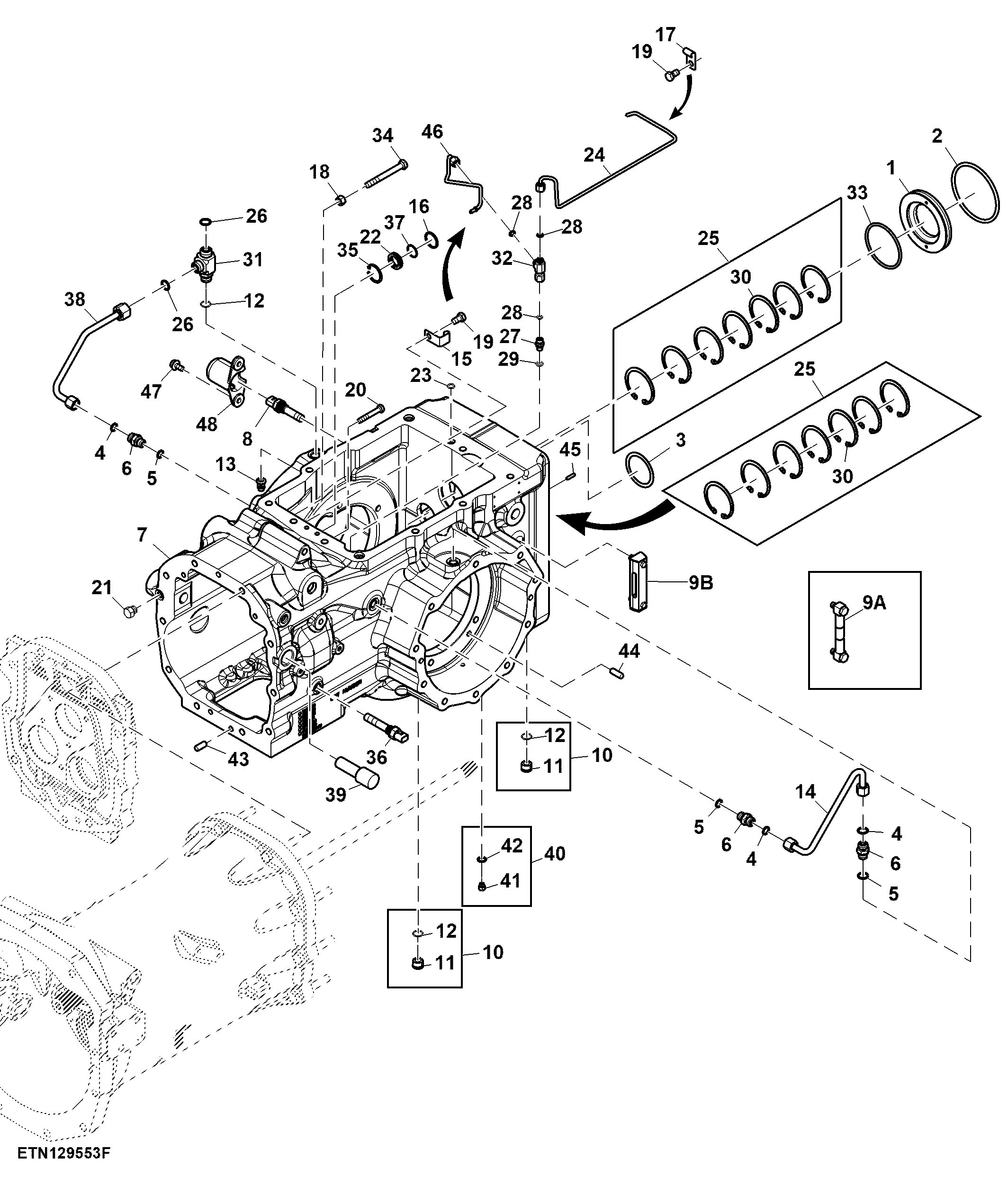

Transmission Housing, W/ Electro-Hydraulic MFWD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SU34010	1	Piston	-
2	YZ91978	1	O-Ring	-
3	SU30403	1	Washer	-
4	T77857	3	O-Ring	-
5	51M7043	3	O-Ring	15.300 X 2.200 mm
6	38H5003	3	Adapter Fitting	-
7	SU58368	1	Housing	-
7	SU34452	1	Housing	ORDER SU58368
7	SU54685	1	Housing	ORDER SU58368
8	RE330848	1	Wheel Speed Sensor	PTO Speed Sensor
10	RE221098	2	Drain Plug	-
11	RE225643	2	Drain Plug	-
12	51M7045	3	O-Ring	19.300 X 2.200 mm
13	YZ90793	1	Pressure Relief Valve	-
14	RE171168	1	Oil Line	LGTH = 326 mm
15	YZ91807	1	Clamp	-
16	YZ250161	1	Seal	-
17	YZ91830	2	Clamp	-
18	14M7275	1	Nut	M12
19	19M8017	3	Cap Screw	M12 X 20
20	19M8498	5	Cap Screw	M10 X 65
21	F85006	1	Fitting Plug	-
22	YZ90271	1	Piston	Seal Carrier
23	R394R	1	O-Ring	-
24	YZ91825	1	Oil Tube	Pump Gear Mesh
25	YZ90707	2	Snap Ring	-
26	T77932	2	O-Ring	-
27	38H5001	1	Adapter Fitting	-
28	T77814	3	O-Ring	-
29	51M7040	1	O-Ring	9.300 X 2.200 mm
30	40M1872	2	Snap Ring	-
31	38H5030	1	Tee Fitting	-
32	38H1029	1	Tee Fitting	-
33	SU32510	1	O-Ring	-
34	YZ90863	1	Cap Screw	-
35	40M7225	1	Snap Ring	-
36	RE330849	1	Sensor	Transmission Speed Sensor
37	B15646	1	O-Ring	-
38	RE171169	1	Oil Line	LGTH = 294 mm
39	YZ90820	1	Pin Fastener	-
40	RE229293	2	Fitting Plug	-
41	R229294	2	Fitting Plug	-
42	R26287	2	O-Ring	-
43	44M7060	10	Pin	12 X 24 mm
44	44M7092	2	Dowel Pin	-
45	44M7116	2	Dowel Pin	-
46	SU35810	1	Oil Tube	Third Stage Supply
47	19M7865	2	Screw	M8 X 16
48	SU54262	1	Shield	PTO Speed Sensor
9A	RE187450	1	Gauge	-
9B	SU60296	1	Gauge	SUB FOR RE187450

Transmission Housing, W/ Electro-Hydraulic MFWD
