Steering Controls, AutoTrac™ Universal 300, Wet Clutch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	Steering Wheel
2	L100436	2	Washer	-
3	PFP19123	1	Knob	-
4	B3690R	1	O-Ring	-
5	T17148	1	Lock Washer	-
6	RE258807	1	Tie Band	-
7	PFP17707	1	Cover	Sprocket
8	PF12006	1	Wear Ring	-
9	PFA11841	1	Motor Kit	-
10	M85517	1	Grommet	-
11	GX26021	12	Socket Head Screw	-
12	PFA11385	1	Cover	Motor Cover
13	PF12236	2	Clamp	-
14	57M8021	1	Electrical Connector Assy	Internal Resume C01
14	57M8022	1	Elec.Connect Locking Device	-
14	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
15	57M8021	1	Electrical Connector Assy	Internal Resume Switch
15	Z78008	2	Elec. Connector Seal	-
15	57M8022	1	Elec.Connect Locking Device	-
16	57M14708	1	Elec. Connector Housing	Switch 01 C02
17	PFP10111	1	U-Bolt	-
18	57M14708	1	Elec. Connector Housing	Switch 02 C03
19	03M7190	1	Bolt	M10 X 20
20	PFA11989	1	Harness Kit	Motor, ATU300 to ATC300
21	57M9800	1	Elec. Connector Housing	Motor C01
21	57M9809	12	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
22	57M12321	1	Elec. Connector Terminal	Ground C04
23	57M14637	1	Elec. Connector Housing	Main C02
23	57M9809	18	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18
24	57M8023	1	Elec. Connector Housing	Internal Resume Switch C03
24	57M7621	1	Elec.Connect Locking Device	-
24	57M9717	1	Elec.Connect Locking Device	-
24	R78066	2	Elec. Connector Terminal	Cavity 1, 2
25	PFP17709	1	Roller Chain	Links = 54
26	21M7577	4	Socket Head Screw	M6 X 16
27	PFP10109	1	Bracket	Stationary
28	14M7397	2	Lock Nut	M6
29	PFP10110	1	Bracket	Slide
30	PF12198	1	Saddle	-
31	N209668	1	Knob	-
32	24M7096	1	Washer	10.500 X 18 X 1.600 mm
33	24M7054	2	Washer	6.400 X 12 X 1.600 mm
34	PF12168	1	Hub	-
35	14M7209	1	Nut	M18
36	14M7166	1	Lock Nut	M8

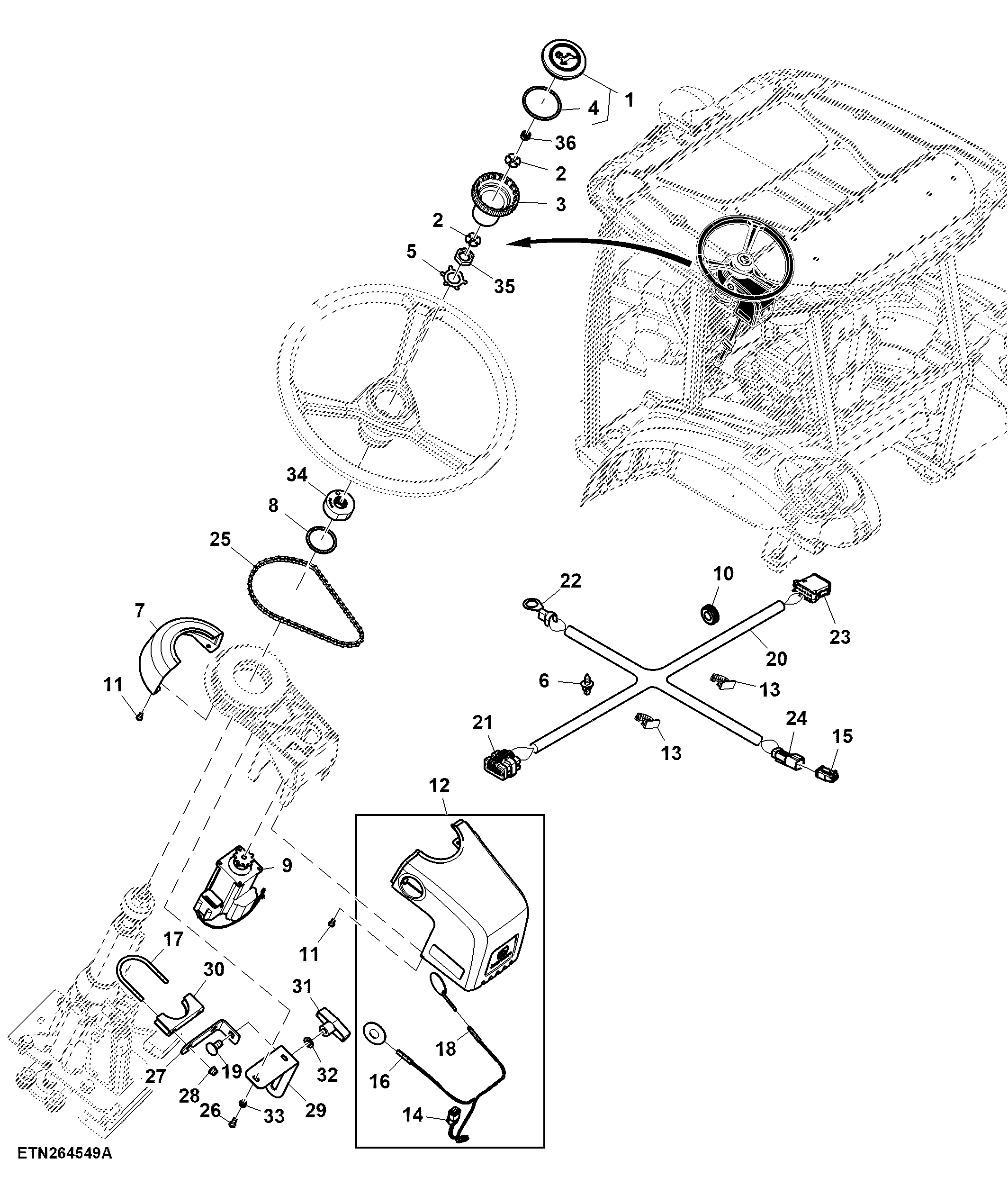

Steering Controls, AutoTrac™ Universal 300, Wet Clutch
