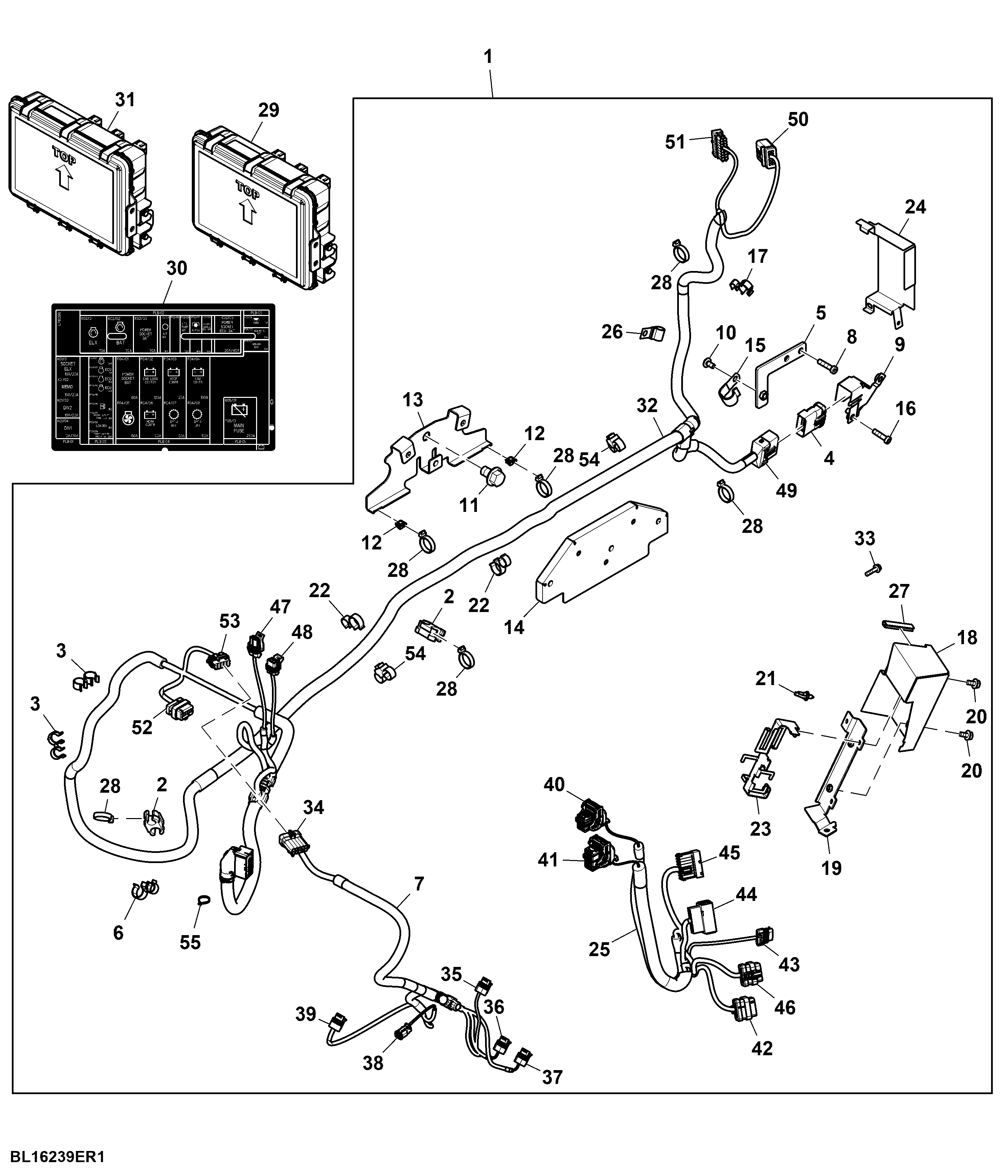

Wiring Harness, Electrical Midstack SCV, Attachment (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16239	1	Wiring Harness	-
2	L207210	2	Block Clamp	-
3	R215302	3	Clip	-
4	AL218954	1	Elec. Connector Housing	-
5	AL223845	1	Bracket	-
6	R241878	1	Clip	-
7	AL224797	1	Wiring Harness	ORDER AL228354
7	AL228354	1	Wiring Harness	-
8	19M9006	2	Screw	M8 X 35
9	L219641	1	Retainer	-
10	R264173	4	Bolt	-
11	19M8468	1	Screw	M16 X 25
12	L205558	2	Clip	-
13	L221328	1	Retainer	-
13	L222559	1	Retainer	-
14	L219640	1	Retainer	-
14	L222558	1	Retainer	-
15	AH89486	1	Clip	-
16	19M7555	2	Screw	M8 X 30
17	L171496	1	Clamp	-
18	L218896	1	Cover	-
19	L218787	1	Retainer	-
20	19M7774	4	Screw	M6 X 12
21	RE258807	2	Tie Band	-
22	AL159725	4	Clamp	-
23	L218786	1	Retainer	-
24	L218897	1	Cover	-
24	L221786	1	Cover	ORDER L226522
24	L226522	1	Cover	-
25	AL225086	1	Wiring Harness	-
25	AL229984	1	Wiring Harness	-
26	AH89557	1	Clip	-
27	L217085	3	Weatherstrip	LGTH = 60 mm
28	57M12234	12	Elec. Connector Accessory	-
29	AL226857	1	Fuse Box	Order Separately if Required, For Tractors with Power Link Box (PLB), INCLUDES L221684
30	L225960	1	Label	-
30	L221684	2	Label	Order Separately if Required, ORDER L225960
31	AL226859	1	Fuse Box	Order Separately if Required, For Tractors with Battery Cut-off System, INCLUDES L221684
32	AL227838	1	Wiring Harness	ORDER AL233330
32	AL233330	1	Wiring Harness	-
33	19M7863	3	Screw	M6 X 25
34	57M7258	2	Elec. Connector Seal	Cavity D, J
34	57M9555	1	Clip	-
34	57M7281	1	Elec.Connect Locking Device	-
34	57M7259	1	Elec. Connector Seal	Cavity C
34	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
34	57M9214	2	Elec. Connector Seal	Cavity A, B
34	57M7252	3	Elec. Connector Terminal	Cavity E, H, K
34	57M11342	2	Elec. Connector Terminal	Cavity D, J
34	57M9546	4	Elec. Connector Terminal	Cavity A, B, F, G
34	57M7265	1	Elec. Connector Housing	Connection Point between Harnesses W751 and W731, X1134M
35	57M10466	1	Elec. Connector Housing	E-SCV XI Stepper Motor, X318F, M012
35	57M7830	2	Elec. Connector Terminal	Cavity A, B
35	57M7829	2	Elec. Connector Terminal	Cavity C, D
36	57M10466	1	Elec. Connector Housing	E-SCV XII Stepper Motor, X251F, M013
36	L219630	1	Elec. Connector Accessory	-
36	57M7830	2	Elec. Connector Terminal	Cavity A, B
36	57M7829	2	Elec. Connector Terminal	Cavity C, D
37	57M10466	1	Elec. Connector Housing	E-SCV XIII Stepper Motor, X252F, M014
37	57M7830	2	Elec. Connector Terminal	Cavity A, B
37	57M7829	2	Elec. Connector Terminal	Cavity C, D
37	L219630	1	Elec. Connector Accessory	-
38	57M7620	1	Electrical Connector Assy	-
38	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
38	57M7534	1	Elec. Connector Housing	Commutation Valve of Front Hitch, X1007F, Y102
39	57M10466	1	Elec. Connector Housing	Stepper Motor for Front Hitch, X253F, M015
39	57M7830	2	Elec. Connector Terminal	Cavity A, B
39	57M7829	2	Elec. Connector Terminal	Cavity C, D
39	L219630	1	Elec. Connector Accessory	-
40	57M10604	1	Elec. Connector Housing	-
40	57M13590	1	Elec. Connector Accessory	-
40	57M10334	1	Elec. Connector Cavity Plug	Cavity H2
40	57M10330	10	Elec. Connector Terminal	Cavity A1, A3, B3, B4, D4, E3, E4, F2, F3, F4,
40	57M10331	4	Elec. Connector Terminal	Cavity G1, G2, H1, H3
40	57M10514	2	Elec. Connector Terminal	Cavity E1, F1
40	57M10333	12	Elec. Connector Cavity Plug	Cavity A2, A4, B1, B2, C1, C2, C3, C4, D1, D2, D3, E2
40	57M10611	1	Elec. Connector Housing	Connector of Front Chassis Control Unit (M400), X985F-1
40	57M10617	3	Elec. Connector Housing	Cavity G3, G4, H4
41	57M10333	14	Elec. Connector Cavity Plug	Cavity A1, B1, B2, B4, C2, C3, C4, E4, F2, F3, F4, G4, H2, K4
41	57M10613	1	Elec. Connector Housing	-
41	57M13590	1	Elec. Connector Accessory	-
41	57M10334	2	Elec. Connector Cavity Plug	Cavity M2, M3
41	57M10331	3	Elec. Connector Terminal	Cavity L2, M1, M4
41	57M10617	3	Elec. Connector Housing	Cavity L1, L3, L4
41	57M10514	13	Elec. Connector Terminal	Cavity A4, C1, D1, D2, D3, D4, G1, G3, H1, J1, J4, K1, K3
41	57M10330	13	Elec. Connector Terminal	Cavity A2, A3, B3, E1, E2, E3, F1, G2, H3, H4, J2, J3, K2
41	57M10614	1	Elec. Connector Housing	Connector of Front Chassis Control Unit (M400), X985F-2
42	57M9801	1	Elec. Connector Housing	Connection Point on Wiring Harness W291, X1168F
42	57M9809	9	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 8, 9, 10, 11
42	57M10631	1	Elec. Connector Terminal	Cavity 12
42	57M10336	2	Elec. Connector Cavity Plug	Cavity 4, 7
43	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
43	57M7318	1	Elec. Connector Accessory	-
43	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
43	57M8416	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 or W513 and W741, X002F
44	57M8072	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W291 and W751, X921F
44	57M9532	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
44	57M8079	1	Elec. Connector Terminal	Cavity 16
44	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
44	57M7399	1	Elec. Connector Seal	Cavity 16
44	57M8083	1	Elec. Connector Accessory	-
45	57M7399	5	Elec. Connector Seal	Cavity 1, 3, 14, 15, 16
45	57M8082	1	Elec. Connector Accessory	-
45	57M8075	1	Elec. Connector Seal	-
45	57M7401	7	Elec. Connector Cavity Plug	Cavity 4, 6, 7, 8, 11, 12, 13
45	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 9, 10
45	57M9042	4	Elec. Connector Terminal	Cavity 2, 5, 9, 10
45	57M8069	1	Elec. Connector Housing	Connection point on wiring harness W291 (M400), X1018M
46	57M9800	1	Elec. Connector Housing	Connection Point on Wiring Harness W291, X1083F
46	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
46	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 10
47	57M7328	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W751 and W912, X1278F
47	57M7289	1	Elec.Connect Locking Device	-
47	57M10770	2	Elec. Connector Terminal	Cavity A, B
47	57M9215	2	Elec. Connector Seal	Cavity A, B
48	57M10770	5	Elec. Connector Terminal	Cavity A, B, D, E, F
48	57M9215	5	Elec. Connector Seal	Cavity A, B, D, E, F
48	57M7259	1	Elec. Connector Seal	Cavity C
48	57M7291	1	Electrical Connector Assy	-
48	57M7260	1	Elec. Connector Housing	Connection Point between Harnesses W751 or W901 and W912, X1268F
49	57M8543	1	Elec. Connector Terminal	Cavity 14
49	57M8572	2	Elec. Connector Cavity Plug	Cavity 11, 12
49	57M8545	9	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 13
49	57M8565	2	Elec. Connector Terminal	Cavity 1, 8
49	57M10297	1	Elec. Connector Housing	Connection Point on Wiring Harness W751, X923F
50	57M9805	1	Elec. Connector Housing	Connection point on wiring harness W751 (with front loader and return-to-position function), X1168M
50	57M9813	9	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 8, 9, 10, 11
50	57M10603	1	Elec. Connector Terminal	Cavity 12
50	57M10336	2	Elec. Connector Cavity Plug	Cavity 4, 7
51	57M8082	1	Elec. Connector Accessory	-
51	57M8075	1	Elec. Connector Seal	-
51	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
51	57M9042	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
51	57M8069	1	Elec. Connector Housing	Connection Point on Wiring Harness W751, X921M
51	57M7399	1	Elec. Connector Seal	Cavity 16
52	57M9800	1	Elec. Connector Housing	Connection Point on Wiring Harness W751, X1169F
52	57M9809	7	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 7, 8, 9
52	57M10631	3	Elec. Connector Terminal	Cavity 10, 11, 12
52	57M10336	2	Elec. Connector Cavity Plug	Cavity 4, 6
53	57M9541	2	Elec. Connector Terminal	Cavity D, J
53	57M7281	1	Elec.Connect Locking Device	-
53	57M7259	1	Elec. Connector Seal	Cavity C
53	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
53	57M7258	2	Elec. Connector Seal	Cavity D, J
53	57M9214	2	Elec. Connector Seal	Cavity A, B
53	57M10770	5	Elec. Connector Terminal	Cavity E, F, G, H, K
53	57M7494	2	Elec. Connector Terminal	Cavity A, B
53	57M7262	1	Elec. Connector Housing	Connection Point on Wiring Harness W751, X1134F
54	R213663	2	Clamp	-
55	57M13596	2	Elec. Connector Accessory	-

Wiring Harness, Electrical Midstack SCV, Attachment (1/2)
