Открытый узел

Module, Instrument Panel, AutoQuad™ / PowrQuad™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL215829	1	Module	-
2	L170130	12	Screw	-
3	AL209398	1	Lever	Turn Signal
4	AL166429	1	Switch	Wiper Switch
5	AL201749	1	Control	Left Hand Reverser
6	40M7251	1	Snap Ring	-
7	40M7082	1	Snap Ring	-
8	34M7159	1	Spring Pin	3 X 12 mm
9	37M7215	3	Screw	-
10	AL223602	1	Wiring Harness	-
11	AL76568	1	Knob	-
12	RE270408	1	Rotary Switch	Ignition Switch, SUB FOR RE61717 APPL
13	RE154222	1	Switch	Light Switch, ORDER AL220391
13	AL220391	1	Switch	-
14	L203900	1	Housing	ORDER L217036
14	L217036	1	Housing	-
15	L169289	1	Guide	-
16	L169291	1	Guard	-
17	R164403	1	Knob	-
18	L221355	1	Boot	SUB FOR RE189712
19	L170129	3	Screw	-
20	L170131	2	Screw	-
21	R115974	1	Nut	-
22	AL220336	1	Module	ORDER AL226234; SUB FOR AL219197
22	AL224049	1	Module	ORDER AL226234; SUB FOR AL221185 APPL
22	AL226234	1	Module	SUB FOR AL225233
23	R44165	1	Lock Nut	ORDER H204146
23	H204146	1	Nut	-
24	21M7265	8	Screw	M5 X 12
25	19M9166	1	Screw	M3 X 6
26	L204417	1	Insert	-
27	AL218342	1	Shield	SUB FOR AL175387 APPL
28	L167915	3	Clamp	-
29	19M7555	3	Screw	M8 X 30
30	AL172312	1	Panel	-
31	L167579	2	Washer	-
32	L166804	2	Plug	-
33	57M8732	14	Elec. Connector Terminal	Cavity 8, 11, 12, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24
33	57M7401	5	Elec. Connector Cavity Plug	Cavity 4, 7, 9, 10, 13
33	57M7399	5	Elec. Connector Seal	Cavity 1, 2, 3, 5, 6
33	57M7400	14	Elec. Connector Seal	Cavity 8, 11, 12, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24
33	57M8946	5	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6
33	57M8076	1	Elec. Connector Terminal	-
33	57M8084	1	Elec. Connector Accessory	-
33	57M8070	1	Elec. Connector Housing	Connection Point between Harnesses W211 and W231, X735M-1
34	L78202	1	Elec. Connector Housing	Key Switch, S012F
34	57M7089	6	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7
35	57M9578	1	Elec. Connector Housing	Turn-Signal Lever, X732F, S127
35	57M9580	8	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 9
36	57M8721	1	Elec. Connector Accessory	Instrument Unit (AutoPowr™/IVT™ Transmission and CommandPRO™ Joystick), X733F, A168
36	57M8719	18	Elec. Connector Terminal	Cavity 7, 10, 11, 12, 13, 15, 16, 21, 22, 23, 25, 26, 27, 28, 29, 30, 31, 32
37	57M9579	1	Elec. Connector Housing	Switch for Windshield and Rear Window Wipers, X734F, S128
37	57M9580	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 9, 10, 11, 12, 13, 16

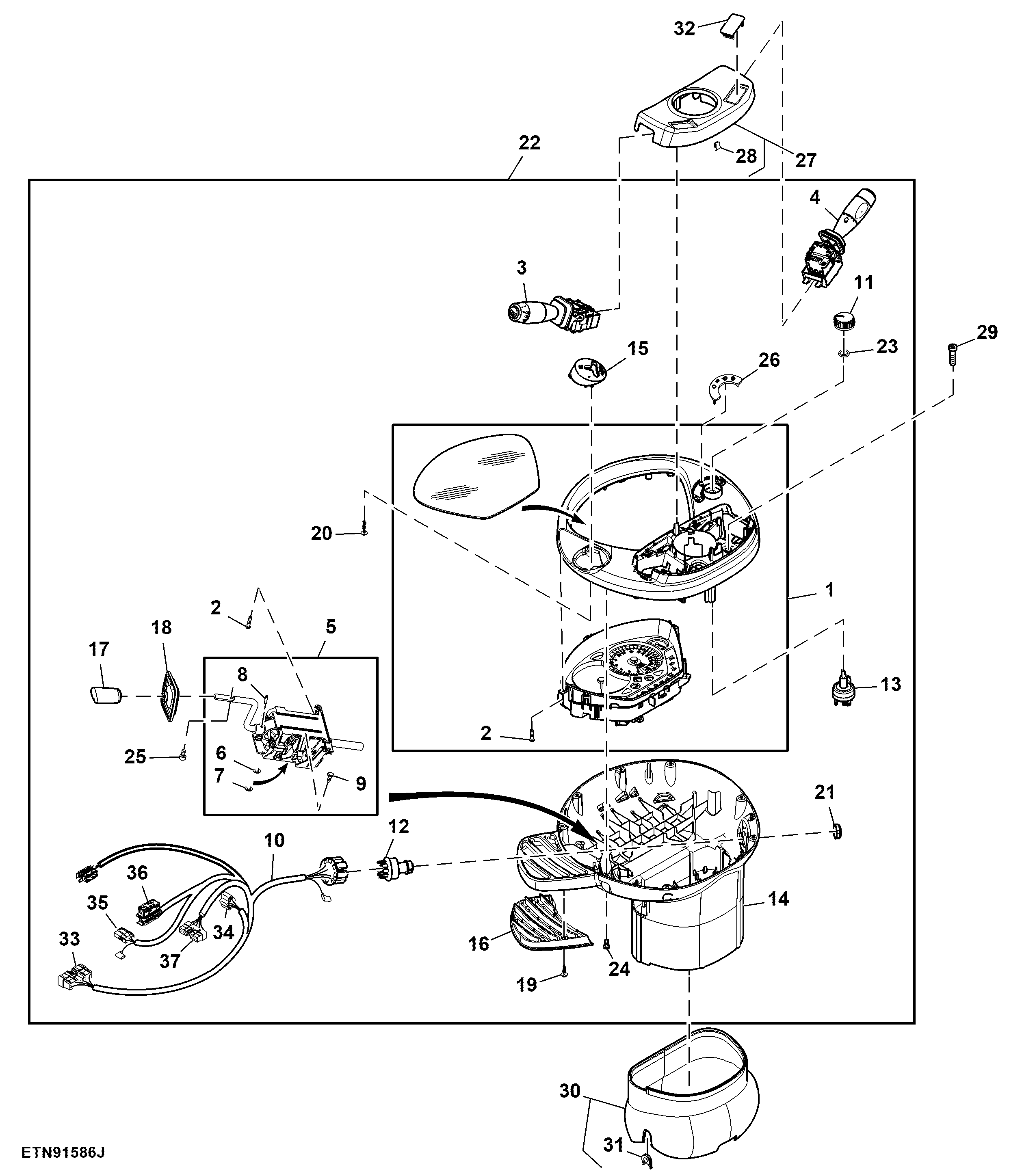

Module, Instrument Panel, AutoQuad™ / PowrQuad™
