Открытый узел

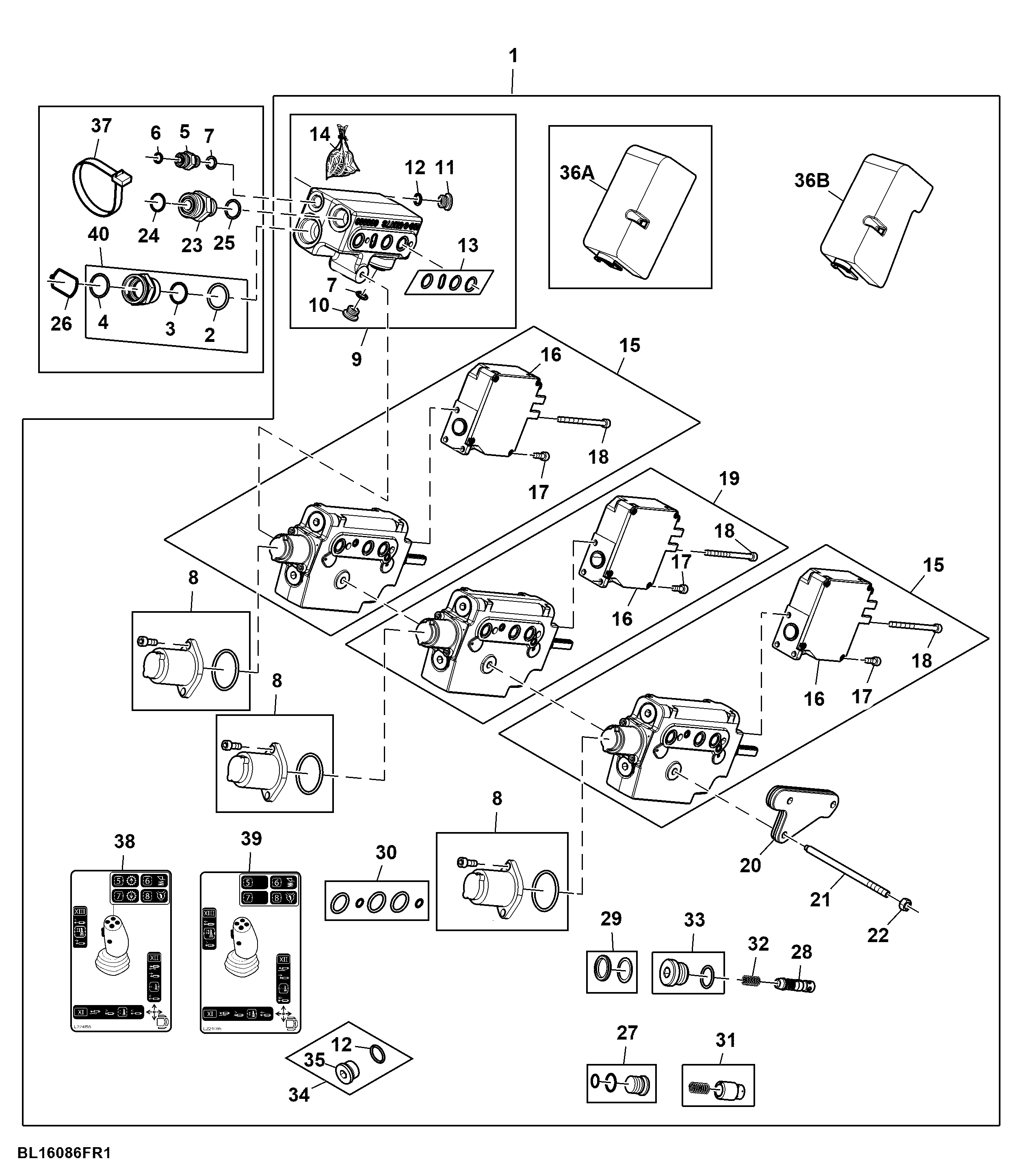

Valve Kit, Electrical Midstack SCV, W/ 3 Functions, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16816	1	Valve Kit	-
1	BL16086	1	Valve Kit	ORDER BL16816
2	51M7051	1	O-Ring	26.600 X 2.900 mm
3	51M7098	1	O-Ring	22 X 2 mm
4	51M7099	1	O-Ring	25 X 2.200 mm
5	38H5002	1	Adapter Fitting	-
6	T77613	1	O-Ring	-
7	51M7041	2	O-Ring	11.300 X 2.200 mm
8	AL172968	3	Cap	-
9	AL228391	1	Valve	ORDER AL231372
9	AL231372	1	Manifold	-
10	15M7076	1	Drain Plug	-
11	L78975	6	Fitting Plug	-
12	51M7047	2	O-Ring	23.600 X 2.900 mm
13	AL207508	1	Seal Kit	-
14	AL207509	4	Seal Kit	-
15	AL221546	2	Valve	ORDER AL233582 AND AL223233
15	AL233582	2	Valve	-
16	AL223233	3	Motor	-
17	19M7768	6	Screw	M6 X 16
18	19M8873	3	Screw	M6 X 90
19	AL221547	1	Valve	ORDER AL233577 AND AL223233
19	AL233577	1	Selective Control Valve	-
20	L206084	1	Cover	ORDER L224712
20	L224712	1	Valve Cover	-
21	L169114	3	Rod	-
22	14M7273	3	Nut	M8
23	38H5121	1	Adapter Fitting	-
24	T77858	1	O-Ring	-
25	51M7045	7	O-Ring	19.300 X 2.200 mm
26	L157513	1	Clamp	-
27	AL200946	3	Check Valve	-
28	AL200965	3	Valve Spool	-
29	AL203292	6	Seal Kit	-
30	AL209467	3	Seal Kit	-
31	AL214529	6	Spool Kit	-
32	L203821	3	Compression Spring	-
33	AL172974	6	Fitting Plug	-
34	AL158828	1	Fitting Plug	-
35	15M7078	1	Drain Plug	-
37	L41858	3	Tie Band	ORDER H77698
38	L224095	1	Label	For Tractors W/ IVT™ Transmission
39	L224156	1	Label	For Tractors W/O IVT™ Transmission
40	AL168499	1	Fitting	-
36A	L219603	3	Cover	-
36B	L224451	3	Cover	SUB FOR L219603

Valve Kit, Electrical Midstack SCV, W/ 3 Functions, Attachment

Нет текстового описания
