Oil Supply Lines, Midstack SCV, W/ PC-Hydraulics, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16285	1	Oil Line	-
2	AL215630	1	Hydraulic Hose	LGTH = 680 mm
3	AL215631	1	Hydraulic Hose	LGTH = 592 mm, MARKED AL215631
4	AL177222	1	Elbow Fitting	-
5	L157513	2	Clamp	-
6	AL229546	1	Hydraulic Hose	Pressure Compensator
7	T77613	3	O-Ring	-
8	AL206434	1	Check Valve	-
9	51M7041	2	O-Ring	11.300 X 2.200 mm
10	L170901	1	Hose Guard	-
11	AL228459	1	Oil Line	Oil Line ICV
12	AL228460	1	Oil Line	Oil Line ICV
13	T77858	5	O-Ring	-
14	AL228461	1	Oil Line	Load Sensing
15	L219354	8	Clamp	-
16	19M2724	4	Screw	M8 X 35
17	14M7151	4	Nut	M8
18	L224438	1	Bracket	-
19	14M7274	1	Nut	M10
20	AL231456	1	Bracket	SUB FOR APPL AL228523
21	14M7807	1	Flange Nut	M8
22	L222767	1	Bracket	-
23	19M7785	2	Screw	M10 X 25
24	L167158	1	Clamp	-
25	AL228457	1	Hydraulic Hose	-
26	38H5517	1	Adapter Fitting	-
27	51M7051	1	O-Ring	26.600 X 2.900 mm
28	AL232993	1	Hydraulic Hose	LGTH = 555 mm, SUB FOR APPL AL228458
29	AL232261	1	Fitting	SUB FOR APPL AL227628
30	L222681	1	Holder	-
31	19M7662	2	Cap Screw	M10 X 30
32	42M7138	2	Stud	-
33	14M7296	2	Flange Nut	M10
34	38H5002	1	Adapter Fitting	-
35	38H5121	1	Adapter Fitting	-
36	51M7045	2	O-Ring	19.300 X 2.200 mm

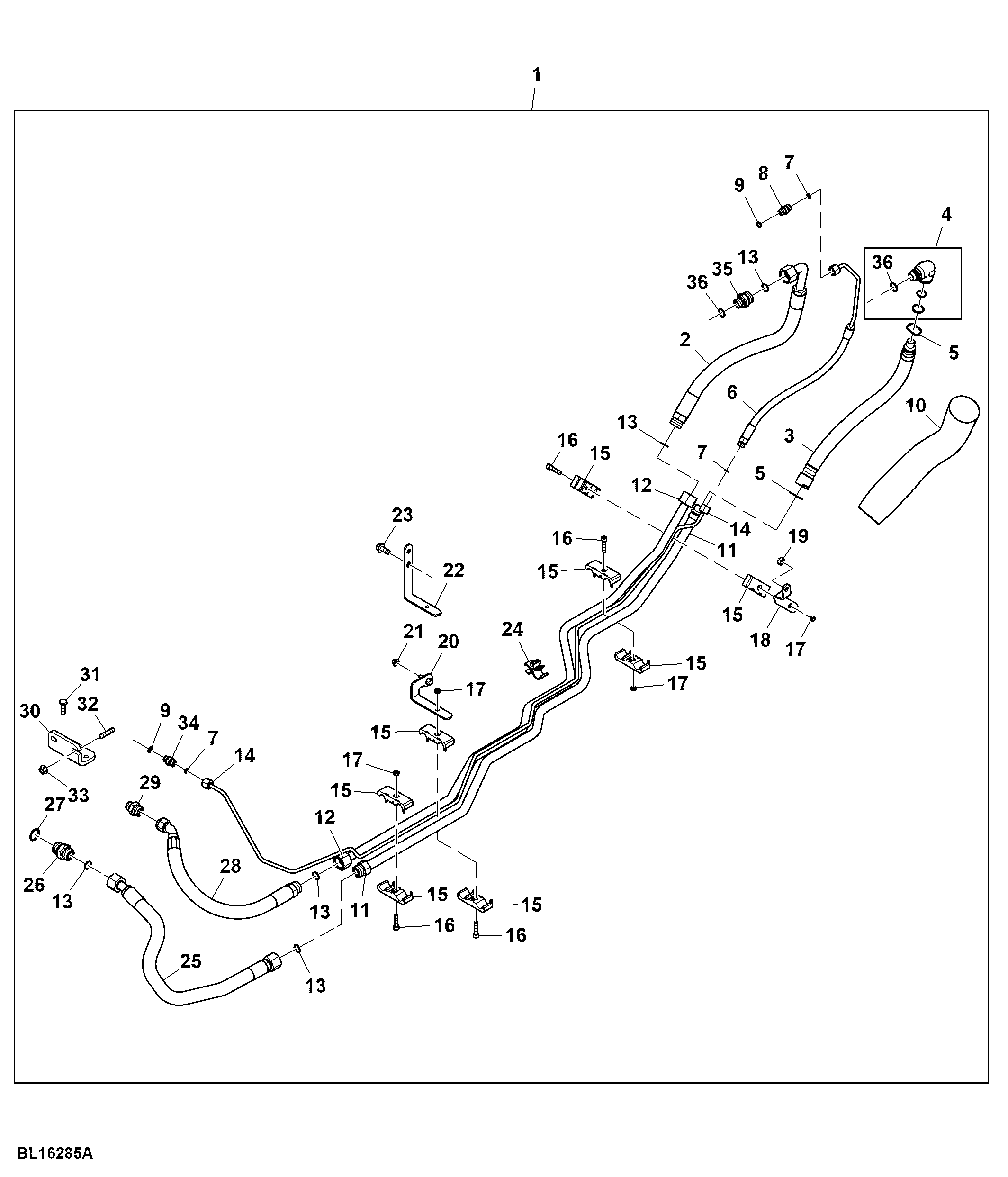

Oil Supply Lines, Midstack SCV, W/ PC-Hydraulics, Attachment
