Открытый узел

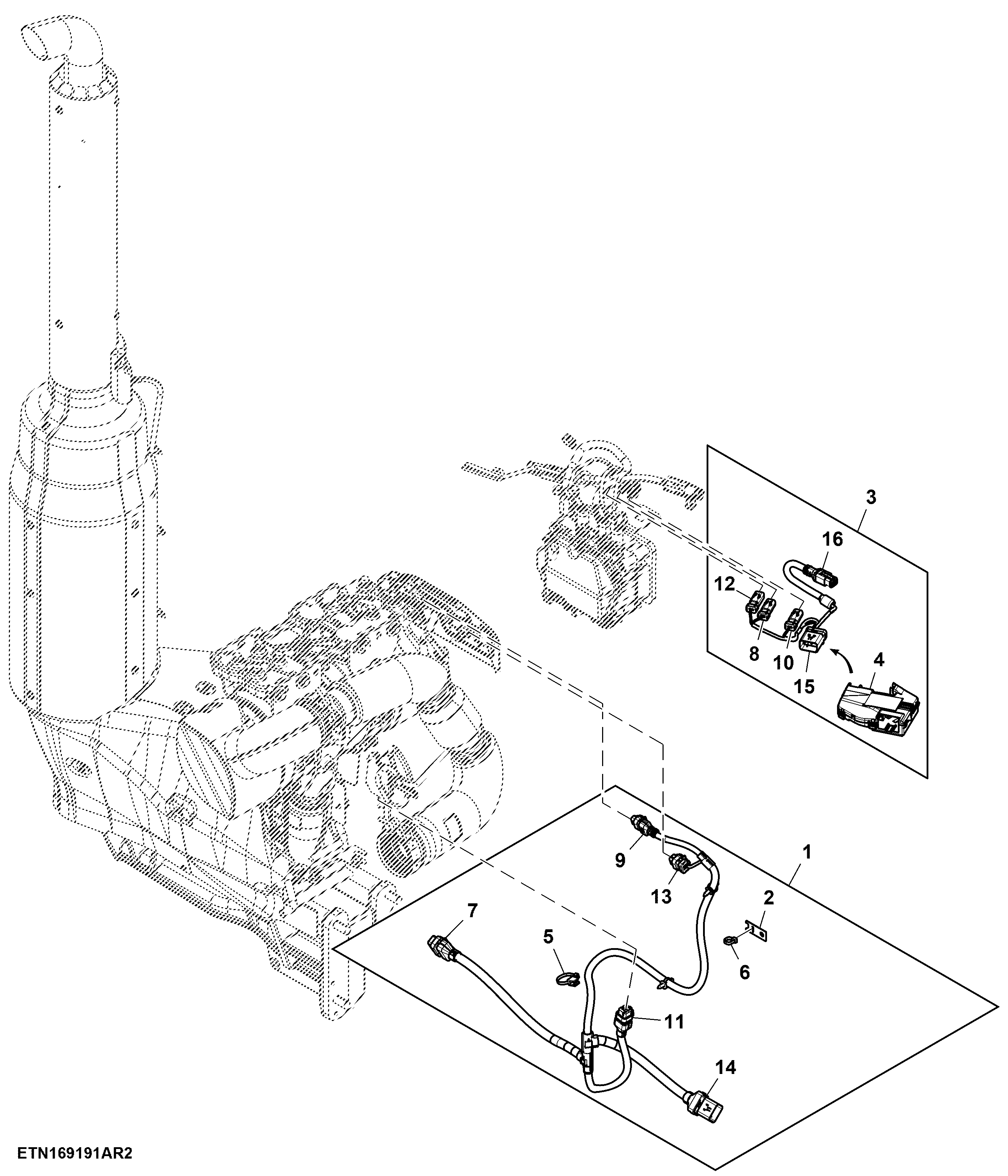

Wiring Harness, Engine Adapter Aftertreatment Converter

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL224806	1	Wiring Harness	-
2	L214239	1	Retainer	-
3	AL221129	1	Wiring Harness	-
4	L215086	1	Channel	-
5	L206646	1	Tie Band	-
6	57M12234	1	Elec. Connector Accessory	-
7	57M9800	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W531 and W541, X1251F
7	57M9809	1	Elec. Connector Terminal	Cavity 1
7	57M10631	7	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9
7	57M9808	2	Elec. Connector Terminal	Cavity 11, 12
7	57M10336	2	Elec. Connector Cavity Plug	Cavity 8, 10
8	57M9778	1	Elec. Connector Housing	Return Line Heater of the DEF Dosing Unit, X693F
8	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
9	57M9780	1	Elec. Connector Housing	DPF Differential Pressure Sensor, X670F-2
9	57M9838	1	Elec. Connector Accessory	-
9	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
10	57M9777	1	Elec. Connector Housing	Pressure Line Heater of the DEF Dosing Unit, X691F
10	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
11	57M10336	1	Elec. Connector Cavity Plug	Cavity 2
11	57M9808	2	Elec. Connector Terminal	Cavity 5, 6
11	57M10631	2	Elec. Connector Terminal	Cavity 3, 4
11	57M9841	1	Elec. Connector Accessory	-
11	57M9787	1	Elec. Connector Housing	NOx Sensor at the Inlet of the Aftertreatment System, X686F-2
11	57M9809	1	Elec. Connector Terminal	Cavity 1
12	57M9776	1	Elec. Connector Housing	Supply Line Heater of the DEF Dosing Unit, X692F
12	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
13	57M9817	1	Elec. Connector Housing	Exhaust Filter Temperature Module, X710F-2
13	57M10321	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
14	57M9813	1	Elec. Connector Terminal	Cavity 1
14	57M10336	1	Elec. Connector Cavity Plug	Cavity 8
14	57M9812	2	Elec. Connector Terminal	Cavity 11, 12
14	57M10603	8	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10
14	57M9940	1	Elec. Connector Accessory	-
14	57M9844	1	Elec. Connector Accessory	-
14	57M9804	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W531, X1053M
15	57M9825	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W542, X1253M
15	57M10603	8	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 8, 9, 12
15	57M9812	4	Elec. Connector Terminal	Cavity 4, 5, 10, 11
16	57M10530	1	Elec. Connector Housing	DEF Tank Sensor, X1254F
16	57M8016	1	Elec.Connect Locking Device	-
16	57M12049	1	Elec. Connector Accessory	-
16	57M8537	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4

Wiring Harness, Engine Adapter Aftertreatment Converter

Нет текстового описания
