Открытый узел

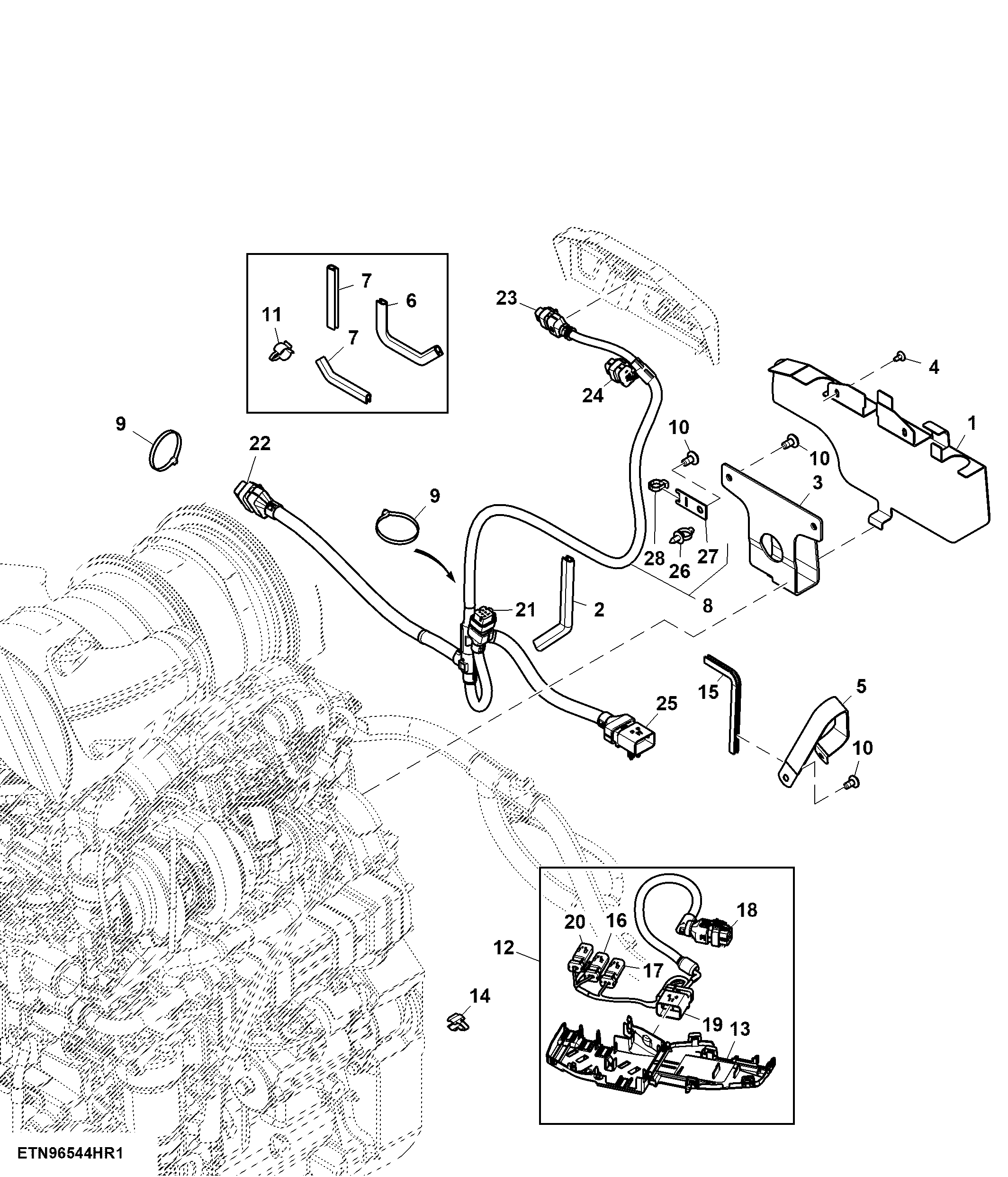

Mounting Parts, Engine Adapter Aftertreatment Converter ( - 866040)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L215772	1	Cover	-
2	L212687	1	Weatherstrip	LGTH = 150 mm
3	L217408	1	Retainer	SUB FOR L215773
4	L174118	2	Screw	-
5	H117952	1	Clamp	SUB FOR AH223285 APPL
6	L158306	1	Isolator	-
7	L152663	2	Weatherstrip	-
8	AL218161	1	Wiring Harness	-
9	R44302	3	Tie Band	-
10	R264173	4	Bolt	-
11	L156247	2	Clamp	-
12	AL217545	1	Wiring Harness	-
13	L215086	1	Channel	-
14	L156248	1	Clamp	SUB FOR L210257 APPL
15	L214539	1	Weatherstrip	LGTH = 190 mm
16	57M9778	1	Elec. Connector Housing	Return Line Heater of the DEF Dosing Unit, X693F
16	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
17	57M9777	1	Elec. Connector Housing	Pressure Line Heater of the DEF Dosing Unit, X691F
17	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
18	57M9788	1	Elec. Connector Housing	DEF Tank Header Assembly, X1254F
18	57M10230	1	Elec. Connector Accessory	-
18	57M10631	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5
18	57M10336	1	Elec. Connector Cavity Plug	Cavity 6
19	57M9825	1	Elec. Connector Housing	Connection Point on Wiring Harness W542, X1253M
19	57M10603	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
19	57M10336	1	Elec. Connector Cavity Plug	Cavity 12
20	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
20	57M9776	1	Elec. Connector Housing	Supply Line Heater of the DEF Dosing Unit, X692F
21	57M9787	1	Elec. Connector Housing	NOx Sensor at the Inlet of the Aftertreatment System, X686F-2
21	57M9841	1	Elec. Connector Accessory	-
21	57M9809	1	Elec. Connector Terminal	Cavity 1
21	57M10631	2	Elec. Connector Terminal	Cavity 3, 4
21	57M9808	2	Elec. Connector Terminal	Cavity 5, 6
21	57M10336	1	Elec. Connector Cavity Plug	Cavity 2
22	57M9800	1	Elec. Connector Housing	Connection Point on Harness W541, X1251F
22	57M9844	1	Elec. Connector Accessory	-
22	57M9809	1	Elec. Connector Terminal	Cavity 1
22	57M10631	7	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9
22	57M9808	2	Elec. Connector Terminal	Cavity 11, 12
22	57M10336	2	Elec. Connector Cavity Plug	Cavity 8, 10
23	57M9838	1	Elec. Connector Accessory	-
23	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
23	57M9780	1	Elec. Connector Housing	Sensor for DPF Differential Pressure, X670F-2
24	57M9817	1	Elec. Connector Housing	Exhaust Filter Temperature Module, X710F-2
24	57M10321	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
25	57M9804	1	Elec. Connector Housing	Connection Point on Harness W531, X1053M
25	57M9844	1	Elec. Connector Accessory	-
25	57M9940	1	Elec. Connector Accessory	-
25	57M9813	1	Elec. Connector Terminal	Cavity 1
25	57M10603	8	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10
25	57M9812	2	Elec. Connector Terminal	Cavity 11, 12
25	57M10336	1	Elec. Connector Cavity Plug	Cavity 8
26	RE258807	2	Tie Band	-
27	L214239	1	Retainer	-
28	57M12234	1	Elec. Connector Accessory	-

Mounting Parts, Engine Adapter Aftertreatment Converter ( - 866040)

Нет текстового описания
