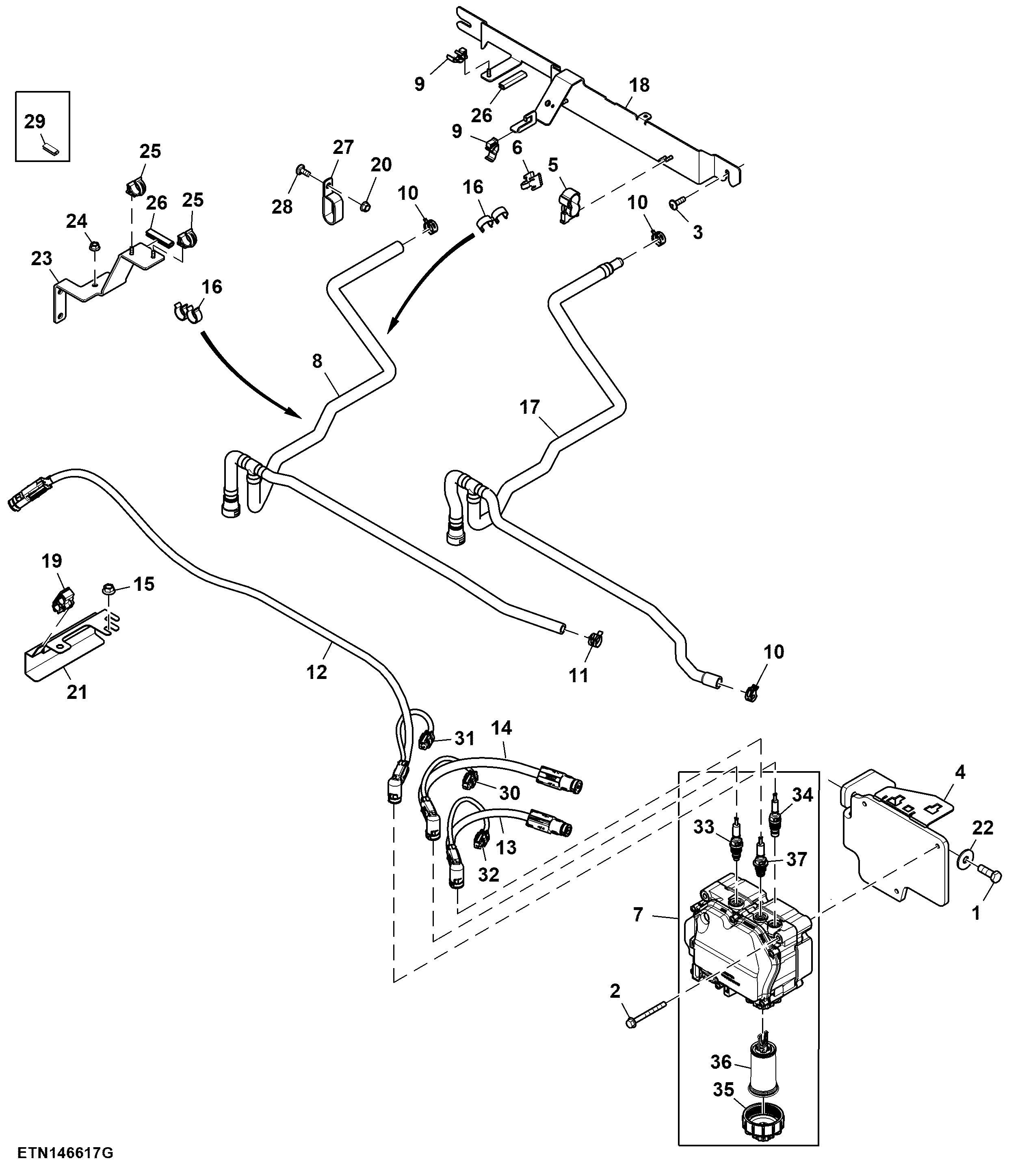

DEF Injection Pump, Lines / Hoses, Low Clearance Cab (866041 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7403	2	Cap Screw	M12 X 35
2	19M8039	3	Screw	M8 X 80
3	L213934	2	Screw	M8 X 25
4	AL217632	1	Bracket	-
5	L112280	2	Clamp	-
6	L153768	1	Clip	-
7	RE552175	1	DEF Dosing Unit Pump	MARKED RE552175
7	DZ111283	1	DEF Dosing Unit Pump	MARKED DZ111283
7	DZ119474	1	DEF Dosing Unit Pump	MARKED DZ119474
8	AL221697	1	Hose	DEF Tank Return Hose
9	L170015	3	Clamp	-
10	L207664	3	Hose Clamp	-
11	R184863	1	Hose Clamp	-
12	DZ111000	1	DEF Line	DEF Pressure Line, INCLUDES 57M9773, SUB FOR RE561032 APPL
13	DZ110998	1	DEF Line	DEF Backflow Line, INCLUDES 57M9774, SUB FOR RE561033 APPL
14	DZ110997	1	DEF Line	DEF Suction Line, INCLUDES 57M9772, SUB FOR RE561034 APPL
15	14M7296	2	Flange Nut	M10
16	AL157838	2	Clamp	-
17	AL221695	1	Hose	DEF Tank Supply Hose
18	AL221356	1	Bracket	-
19	L208622	1	Clamp	-
20	14M7416	1	Flange Nut	M8
21	L215474	1	Bracket	-
22	24M7180	2	Washer	13 X 37 X 3 mm
23	AL219367	1	Mounting Parts	-
24	14M7298	1	Flange Nut	M8
25	L210301	2	Clamp	-
26	L216703	4	Weatherstrip	LGTH = 55 mm
27	R50454	1	Clamp	-
28	03M7184	1	Bolt	M8 X 20
29	L202316	1	Isolator	-
30	57M9772	1	Elec. Connector Housing	-
31	57M9773	1	Elec. Connector Housing	-
32	57M9774	1	Elec. Connector Housing	-
33	RE549603	1	Adapter Fitting	-
34	RE549604	1	Adapter Fitting	-
35	RE555351	1	Cap	-
36	DZ114640	1	Filter Kit	DEF Injection Pump Filter, SUB FOR RE554498
37	RE549605	1	Adapter Fitting	-

DEF Injection Pump, Lines / Hoses, Low Clearance Cab (866041 - )
