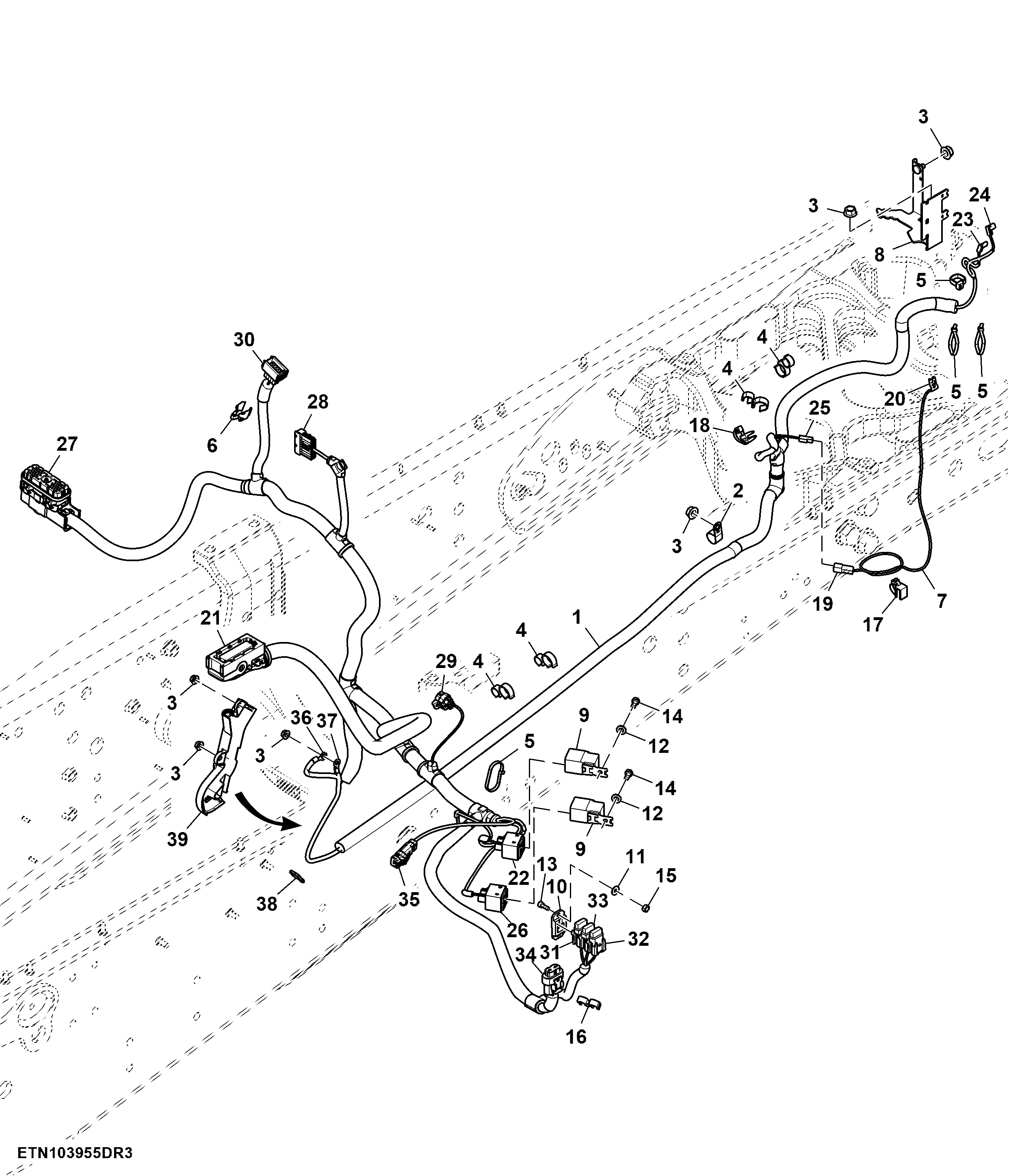

Wiring Harness, Front Chassis, W/O Front Controller, W/O Front PTO ( - 894427)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL222550	1	Wiring Harness	INCLUDES L207255
1	AL218358	1	Wiring Harness	INCLUDES L207255
2	57M9856	1	Clamp	-
3	14M7298	6	Flange Nut	M8
4	AL159725	4	Clamp	-
5	R44302	4	Tie Band	-
6	L153768	1	Clip	-
7	AL200541	1	Wiring Harness	-
8	L211112	1	Bracket	-
9	AL156697	2	Relay	-
10	57M8093	1	Fuse Holder	-
11	24M7146	2	Washer	4.300 X 12 X 1 mm
12	24M7054	2	Washer	6.400 X 12 X 1.600 mm
13	19M8078	2	Cap Screw	M4 X 16
14	19M6614	2	Cap Screw	M6 X 12
15	14M7139	2	Nut	M4
16	L206271	1	Clamp	-
17	L171035	1	Tie Band	-
18	L206645	1	Tie Band	-
19	57M7068	1	Elec. Connector Housing	Radiator Ground Connection, X305M-1
19	57M7039	1	Elec. Connector Terminal	Cavity A
20	57M8481	1	Elec. Connector Terminal	Radiator Ground Connection, X305F
21	57M8730	1	Elec. Connector Housing	Connection Point on Harness W511, X782F
21	57M7401	3	Elec. Connector Cavity Plug	Cavity 57, 61, 62
21	57M7403	40	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 12, 13, 15, 17, 18, 21, 22, 23, 24, 26, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56
21	57M7400	1	Elec. Connector Seal	Cavity 60
21	57M7399	2	Elec. Connector Seal	Cavity 58, 59
21	57M7402	7	Elec. Connector Cable Seal	Cavity 11, 14, 27, 40, 41, 45, 46
21	57M8241	9	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 16, 19, 20, 25
21	57M8584	1	Elec. Connector Terminal	Cavity 60
21	57M8585	2	Elec. Connector Terminal	Cavity 58, 59
21	57M9161	16	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 11, 14, 16, 19, 20, 25, 27, 40, 41, 45, 46
21	57M8738	1	Elec. Connector Accessory	-
22	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
22	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
22	57M8237	2	Elec. Connector Seal	Cavity 1, 2
23	57M7984	1	Elec. Connector Terminal	Horn, X066F-1
23	57M8024	1	Elec. Connector Terminal	Cavity 1
24	57M7984	1	Elec. Connector Terminal	Horn, X066F-2
24	57M8024	1	Elec. Connector Terminal	Cavity 1
25	57M7170	1	Elec. Connector Housing	Radiator Ground Connection, X305F-1
25	57M7106	1	Elec. Connector Terminal	Cavity A
26	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
26	57M8237	2	Elec. Connector Seal	Cavity 1, 2
26	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
27	RE538505	1	Elec. Connector Accessory	Engine Controller, X1022F-3
27	R528122	1	Elec. Connector Accessory	-
27	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
27	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
27	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
28	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
28	57M7399	5	Elec. Connector Seal	Cavity 4, 6, 8, 9, 10
28	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 5
28	57M8079	5	Elec. Connector Terminal	Cavity 4, 6, 8, 9, 10
28	57M9532	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
28	57M8081	1	Elec. Connector Accessory	-
28	57M8071	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1233F
29	57M7260	1	Elec. Connector Housing	Connection Point on Wiring Harness W451, X637F-1
29	57M7291	1	Electrical Connector Assy	-
29	57M7494	2	Elec. Connector Terminal	Cavity A, B
29	57M10770	2	Elec. Connector Terminal	Cavity C, D
29	57M9214	2	Elec. Connector Seal	Cavity A, B
29	57M9215	2	Elec. Connector Seal	Cavity C, D
29	57M7259	2	Elec. Connector Seal	Cavity E, F
30	57M8069	1	Elec. Connector Housing	Connection Point on Wiring Harness W511/3, X1080M
30	57M7401	11	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 8, 9, 11, 13, 14, 15, 16
30	57M7400	2	Elec. Connector Seal	Cavity 6, 7
30	57M7399	3	Elec. Connector Seal	Cavity 5, 10, 12
30	57M9042	1	Elec. Connector Terminal	Cavity 7
30	57M8082	1	Elec. Connector Accessory	-
30	57M8075	1	Elec. Connector Seal	-
31	57M12075	1	Elec. Connector Housing	Fuse for Engine Control Unit, F027
31	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
32	57M12075	1	Elec. Connector Housing	Fuse for Engine Control Unit, F029
32	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
33	57M8435	1	Fuse Holder	Fuse for Engine Control Unit, F028
33	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
34	57M11279	1	Elec. Connector Housing	Connector of Connection for F01PLB Fuses, X547F-1
35	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
35	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
36	57M7382	1	Elec. Connector Terminal	Ground Point, XGND9F
37	57M7411	1	Elec. Connector Terminal	Ground Point, XGND9E
38	57M13596	6	Elec. Connector Accessory	-
39	L207255	1	Channel	-
