Открытый узел

Wiring Harness, Front Chassis, W/ Front Controller, W/ Front PTO

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL222551	1	Wiring Harness	-
1	AL218359	1	Wiring Harness	-
2	14M7298	6	Flange Nut	M8
3	19M6614	2	Cap Screw	M6 X 12
4	AL156697	2	Relay	-
5	24M7054	2	Washer	6.400 X 12 X 1.600 mm
6	L219166	1	Cap	-
7	AL159725	4	Clamp	-
8	L211112	1	Bracket	-
9	R44302	7	Tie Band	-
10	57M9856	1	Clamp	-
11	L206271	1	Clamp	-
12	57M8093	1	Fuse Holder	-
13	24M7146	2	Washer	4.300 X 12 X 1 mm
14	19M8078	2	Cap Screw	M4 X 16
15	14M7139	2	Nut	M4
16	AL200541	1	Wiring Harness	-
17	L171035	1	Tie Band	-
18	L206645	1	Tie Band	-
19	57M7984	1	Elec. Connector Terminal	Horn, X066F-1
19	57M8024	1	Elec. Connector Terminal	Cavity 1
20	57M7984	1	Elec. Connector Terminal	Horn, X066F-2
20	57M8024	1	Elec. Connector Terminal	Cavity 1
21	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 10
21	57M11339	1	Elec. Connector Housing	-
21	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
21	57M9800	1	Elec. Connector Housing	Inline Adapter TLS, X205F
22	57M7170	1	Elec. Connector Housing	Inline Adapter Ground Cooler, X305F-1
22	57M7106	1	Elec. Connector Terminal	Cavity A
23	57M8069	1	Elec. Connector Housing	Inline Engine, X1080M
23	57M9042	1	Elec. Connector Terminal	Cavity 7
23	57M7399	3	Elec. Connector Seal	Cavity 5, 10, 12
23	57M7400	2	Elec. Connector Seal	Cavity 6, 7
23	57M7401	11	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 8, 9, 11, 13, 14, 15, 16
23	57M8082	1	Elec. Connector Accessory	-
24	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 5
24	57M8081	1	Elec. Connector Accessory	-
24	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
24	57M7399	5	Elec. Connector Seal	Cavity 4, 6, 8, 9, 10
24	57M8079	5	Elec. Connector Terminal	Cavity 4, 6, 8, 9, 10
24	57M9532	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
24	57M8071	1	Elec. Connector Housing	Inline Adapter Hood, X1233F
25	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
25	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
25	57M8237	2	Elec. Connector Seal	Cavity 1, 2
26	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
26	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
26	57M8237	2	Elec. Connector Seal	Cavity 1, 2
27	57M7259	2	Elec. Connector Seal	Cavity E, F
27	57M7291	1	Electrical Connector Assy	-
27	57M9215	2	Elec. Connector Seal	Cavity C, D
27	57M10770	2	Elec. Connector Terminal	Cavity C, D
27	57M7494	2	Elec. Connector Terminal	Cavity A, B
27	57M7260	1	Elec. Connector Housing	Inline Was Sensor, X637F-1
27	57M9214	2	Elec. Connector Seal	Cavity A, B
28	57M12075	1	Elec. Connector Housing	Fuse, F027
28	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
29	57M8435	1	Fuse Holder	Fuse, F028
29	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
30	57M12075	1	Elec. Connector Housing	Fuse, F029
30	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
31	57M11279	1	Elec. Connector Housing	Connector of Connection for F01PLB Fuses, X547F-1
32	L116272	1	Elec. Connector Accessory	-
32	57M7469	1	Electrical Connector Assy	-
32	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
32	57M8416	1	Elec. Connector Housing	Inline Front PTO, X002F
32	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
33	57M7411	1	Elec. Connector Terminal	Ground Vehicle, XGND9E
33	57M7411	1	Elec. Connector Terminal	Cavity 1
34	57M7382	1	Elec. Connector Terminal	Ground Vehicle, XGND9F
34	57M7382	1	Elec. Connector Terminal	Cavity 1
35	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
35	R528122	1	Elec. Connector Accessory	-
35	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
35	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
35	RE538505	1	Elec. Connector Accessory	Engine Controller FT4, X1022F-3
36	57M7401	2	Elec. Connector Cavity Plug	Cavity 57, 62
36	57M7403	29	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 12, 13, 15, 17, 18, 22, 23, 26, 28, 29, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 49, 54, 55, 56
36	57M8585	2	Elec. Connector Terminal	Cavity 58, 59
36	57M7400	2	Elec. Connector Seal	Cavity 60, 61
36	57M7399	2	Elec. Connector Seal	Cavity 58, 59
36	57M8241	14	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 16, 19, 20, 21, 25, 31, 32, 48, 53
36	57M8584	2	Elec. Connector Terminal	Cavity 60, 61
36	57M9161	27	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 11, 14, 16, 19, 20, 21, 24, 25, 27, 30, 31, 32, 40, 41, 45, 46, 47, 48, 50, 51, 52, 53
36	57M8730	1	Elec. Connector Housing	Inline Cab, X782F
36	57M7402	13	Elec. Connector Cable Seal	Cavity 11, 14, 24, 27, 30, 40, 41, 45, 46, 47, 50, 51, 52
37	57M10614	1	Elec. Connector Housing	HYDM Controller, X026F
37	57M10514	8	Elec. Connector Terminal	Cavity A1, A2, B1, C1, D1, F4, G2, H2
37	57M10330	14	Elec. Connector Terminal	Cavity A3, B2, C4, E4, F2, G3, H4, J2, J3, J4, K1, K2, K3, K4
37	57M10331	6	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M4
37	57M10333	18	Elec. Connector Cavity Plug	Cavity A4, B3, B4, C2, C3, D2, D3, D4, E1, E2, E3, F1, F3, G1, G4, H1, H3, J1
37	57M10334	2	Elec. Connector Cavity Plug	Cavity L3, M3
38	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
38	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
39	57M8071	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W741, X1134F
39	57M9532	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 8, 9
39	57M8079	1	Elec. Connector Terminal	Cavity 6
39	57M7400	7	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 8, 9
39	57M7399	1	Elec. Connector Seal	Cavity 6
39	57M7401	2	Elec. Connector Cavity Plug	Cavity 7, 10
39	57M7401	10	Elec. Connector Cavity Plug	-
39	57M8081	1	Elec. Connector Accessory	-
39	57M8068	1	Elec. Connector Housing	-
40	57M8481	1	Elec. Connector Terminal	Connector for Radiator Ground Connection, X305F
41	57M7068	1	Elec. Connector Housing	X305M
42	57M7039	1	Elec. Connector Terminal	Cavity A

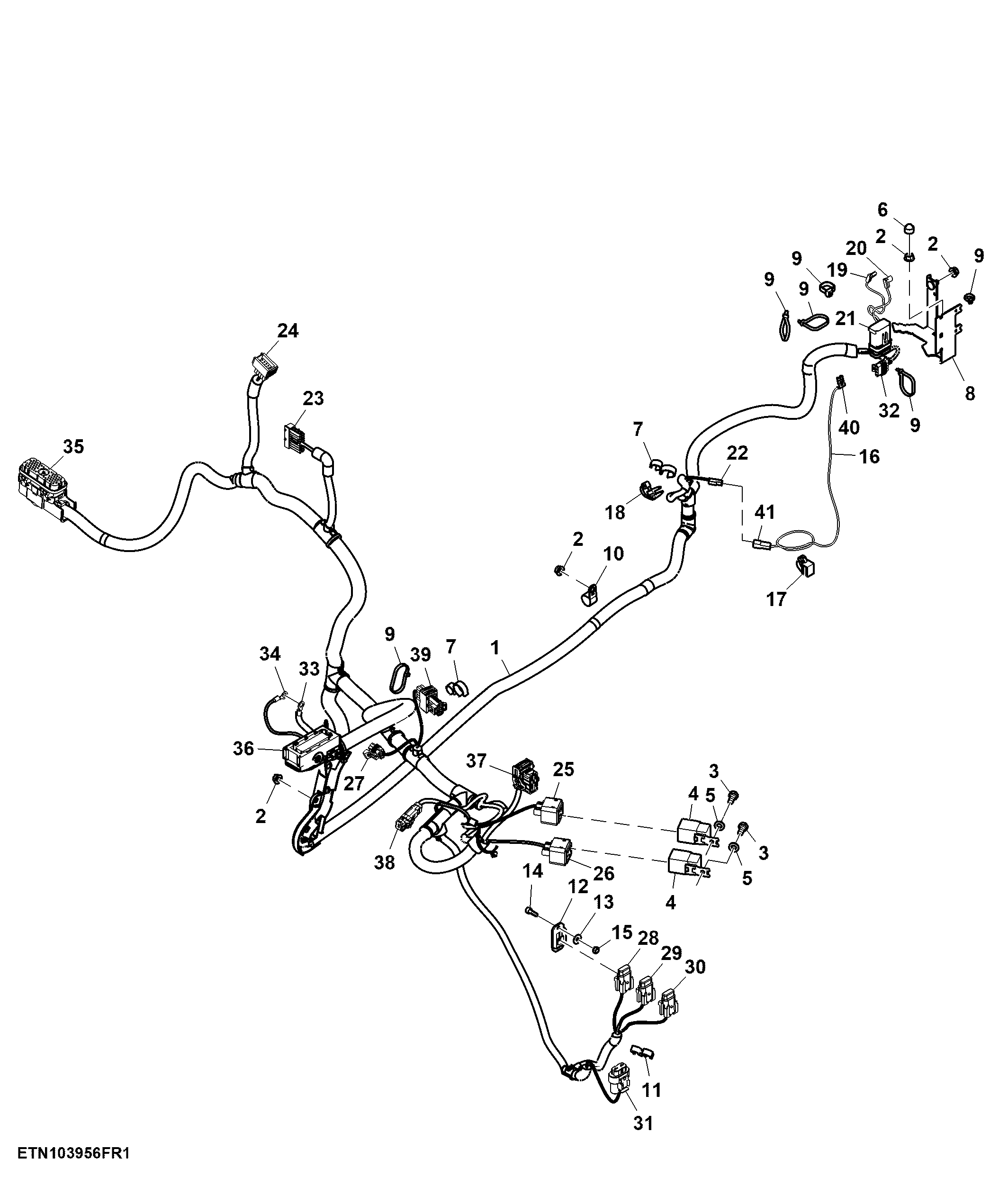

Wiring Harness, Front Chassis, W/ Front Controller, W/ Front PTO
