Valve, Priority 2 + 3, W/ PFC-Hydraulics, W/ TLS™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL231267	1	Valve	ORDER AL231592
1	AL233960	1	Valve	SUB FOR AL231592
1	AL227384	1	Valve	ORDER AL231267, SUB FOR AL215416
2	AL229370	1	Valve	ORDER AL232767, INCLUDES AL165597 AND AL178658
2	AL232767	1	Valve	INCLUDES AL165597 AND AL222495
3	AL222495	1	Control Valve	Priority 2 Valve, SUB FOR AL178658; V3
4	AL165597	1	Valve	Shuttle Valve, Priority Circuit 1 - 2, V6
5	AL215434	1	Valve	ORDER AL227385, INCLUDES AL207754, AL207788, 15M7076, 51M7041, AL177096, (2) 51M7040, (2) AL165597, AL215588 AND AL207509
5	AL227385	1	Valve	ORDER AL231268
5	AL231268	1	Valve	ORDER AL231593
5	AL233961	1	Valve	SUB FOR AL231593
6	L170303	2	Screw	-
7	19M8819	2	Screw	M8 X 35
8	15M7076	1	Drain Plug	-
9	51M7041	1	O-Ring	11.300 X 2.200 mm
10	AL207788	1	Flow Control Hyd. Valve	ORDER AL226351
10	AL226351	1	Flow Control Hyd. Valve	-
11	AL207509	1	Seal Kit	-
12	51M7040	2	O-Ring	9.300 X 2.200 mm
13	AL207754	1	Control Valve	ORDER AL227581, SUB FOR AL180293 APPL
13	AL227581	1	Control Valve	Priority 3 Valve, V5
14	AL177096	1	Pressure Relief Valve	ORDER AL222498 OR AL209234
14	AL222498	1	Pressure Relief Valve	(For PC-Hydraulics)
14	AL209234	1	Pressure Relief Valve	(For PFC-Hydraulics) LS Pressure Limiting Valve, V9
15	AL215588	1	Valve	Priority Circuit 3 LS Pressure, X7
16	AL165597	1	Valve	Shuttle Valve, Priority Circuit 1/2 - 3, V7
17	AL165597	1	Valve	Shuttle Valve, Steering Valve - Foot Brake Valve, V4
18	AL231703	1	Screen Kit	-

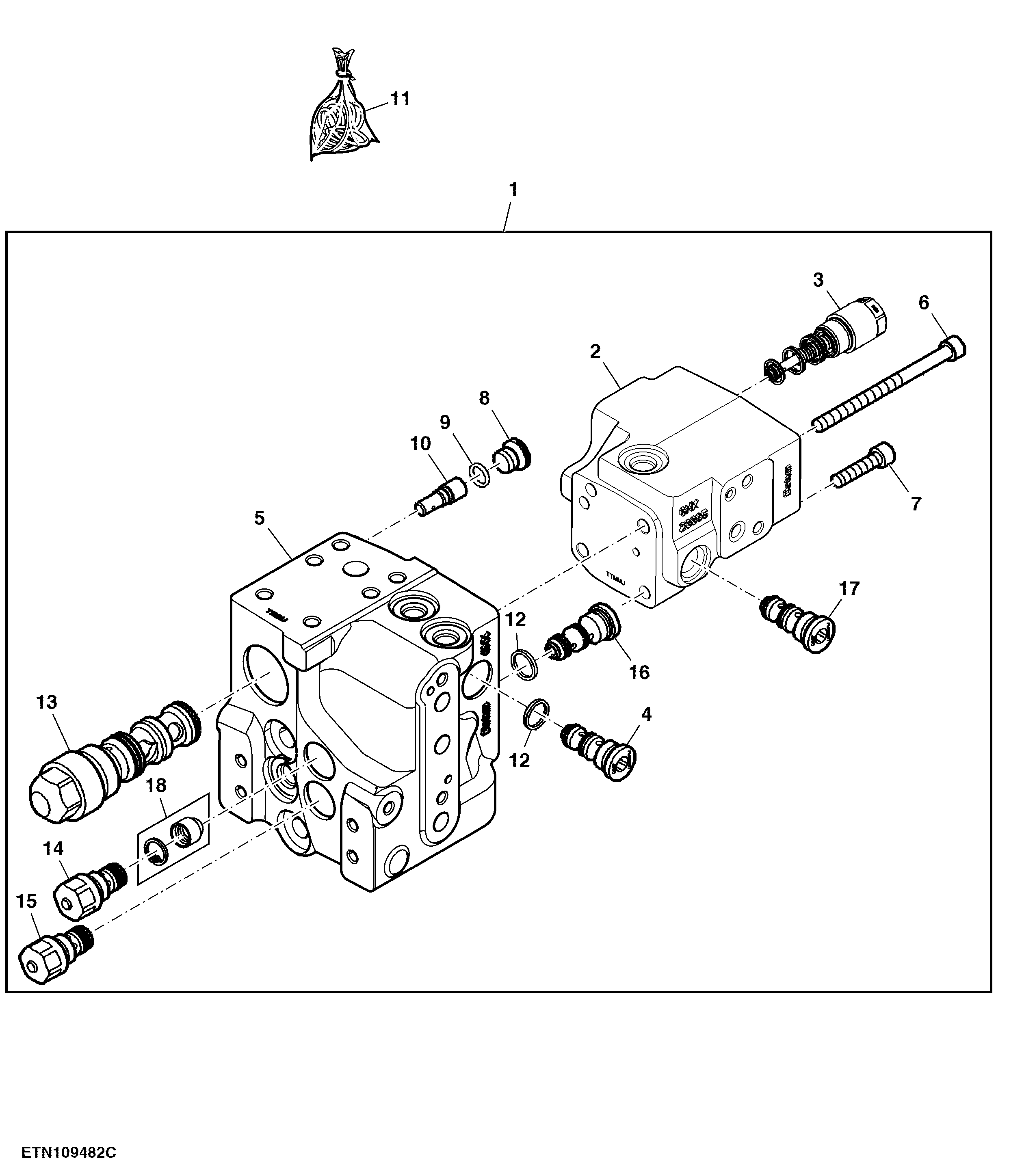

Valve, Priority 2 + 3, W/ PFC-Hydraulics, W/ TLS™

Нет текстового описания
