Открытый узел

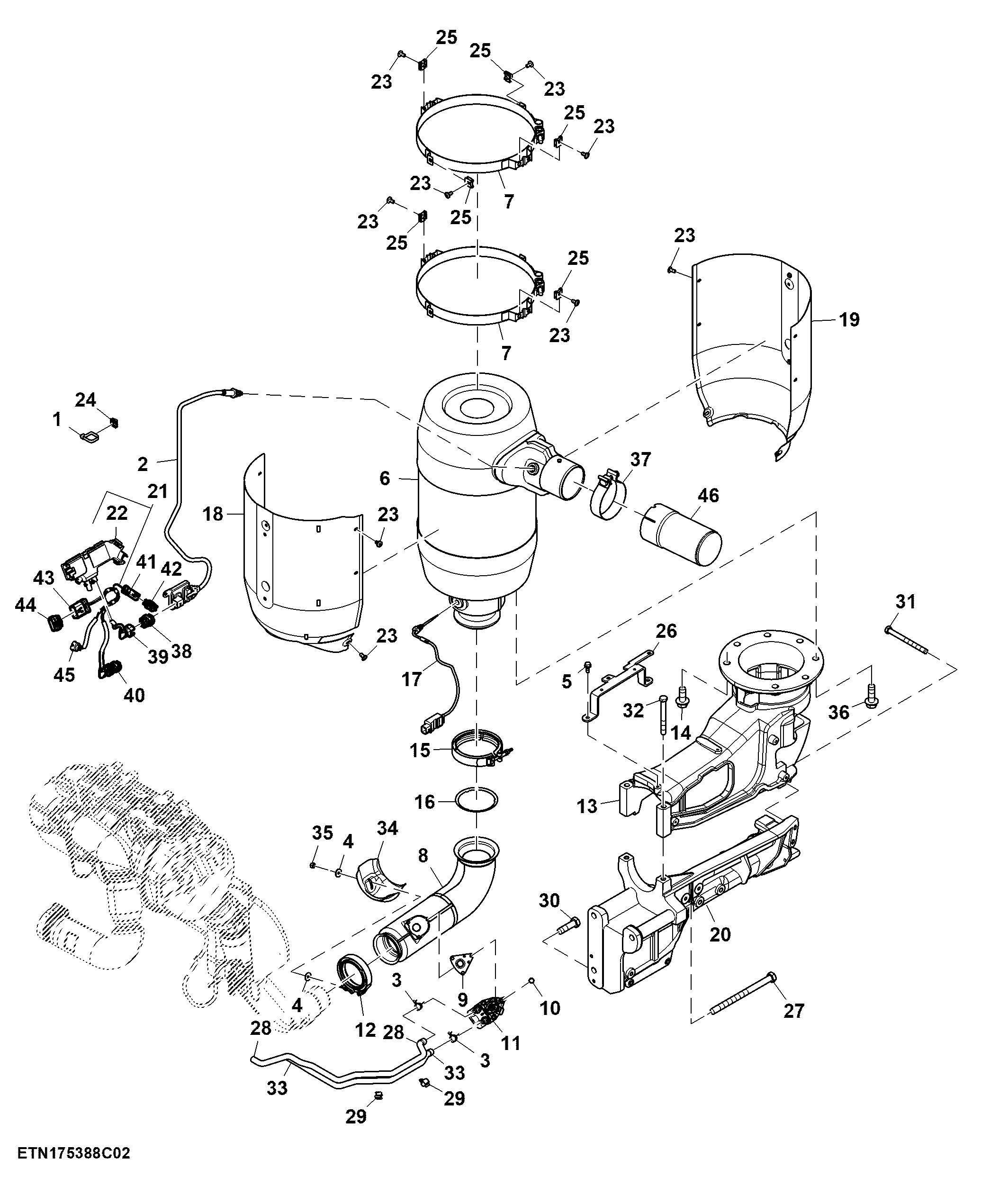

SCR, Horizontal Exhaust System, W/ Low Clearance Cab

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44302	3	Tie Band	-
2	DZ109689	1	Chemical Sensor	SUB FOR RE552182
3	R202160	2	Clamp	-
4	24M7100	2	Washer	6.600 X 22 X 2 mm
5	19M7775	2	Screw	M6 X 16
6	DZ103089	1	Converter	-
7	AL214223	2	Clamp	-
8	AL218093	1	Tube	-
9	RE556879	1	Gasket	-
10	R537624	3	Bolt	-
11	RE560468	1	DEF Dosing Injector	ALSO ORDER RE556879
12	AL225595	1	Clamp	SUB FOR AL213722 APPL
13	L217117	1	Bracket	-
14	19M7793	4	Screw	M16 X 40
15	AL218175	1	Clamp	-
16	R533962	1	Gasket	-
17	RE568552	1	Temperature Sensor	-
18	L218980	1	Heat Shield	-
19	L218979	1	Heat Shield	-
20	L215648	1	Bracket	-
21	AL217544	1	Wiring Harness	-
22	L215085	1	Channel	-
23	L211949	1	Screw	-
24	L205558	3	Clip	-
25	L79493	1	Push Nut	-
26	L212090	1	Bracket	-
27	L212567	2	Screw	-
28	L213009	1	Hose	-
29	L156247	6	Clamp	-
30	19M8295	1	Cap Screw	M16 X 55
31	19M8061	2	Cap Screw	M12 X 140
32	19M7908	2	Cap Screw	M12 X 110
33	L217261	1	Hose	-
34	L216504	1	Heat Shield	-
35	14M7272	1	Nut	M6
36	19M7794	3	Screw	M16 X 50
37	AL200282	1	Clamp	-
38	57M9787	1	Elec. Connector Housing	NOx Sensor at the Outlet of the Aftertreatment System, X656F-2
38	57M9808	3	Elec. Connector Terminal	Cavity 1, 5, 6
38	57M10321	1	Elec. Connector Terminal	Cavity 4
38	57M10336	2	Elec. Connector Cavity Plug	Cavity 2, 3
39	57M10229	1	Elec. Connector Accessory	-
40	57M9817	1	Elec. Connector Housing	SCR Temperature Module, X679F-2
40	57M10321	4	Elec. Connector Terminal	-
41	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1277F
41	57M9812	2	Elec. Connector Terminal	-
42	57M11134	1	Elec. Connector Housing	-
43	57M9804	1	Elec. Connector Housing	Connection Point between Harnesses W541 and W531, X1251M
43	57M9813	1	Elec. Connector Terminal	Cavity 1
43	57M10603	7	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9
43	57M9812	2	Elec. Connector Terminal	Cavity 11, 12
43	57M10336	2	Elec. Connector Cavity Plug	Cavity 8, 10
44	L220162	1	Electrical Connector Cap	-
45	57M10315	1	Elec. Connector Housing	DEF Dosing Injector, X662F-2
45	57M9149	2	Elec. Connector Seal	-
46	AL222527	1	Exhaust Pipe	-

SCR, Horizontal Exhaust System, W/ Low Clearance Cab

Нет текстового описания
