Открытый узел

Position Receiver, W/ Display Module 4640, 9X3

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PFA10461	1	Electronic Control Unit	-
2	PF12989	1	Flap	-
3	PF81189	1	Latch	-
4	PF13007	4	Isolator	Receiver
5	PF13123	4	Tie Band	-
6	PFP13532	1	Housing	-
7	57M7634	1	Electrical Connector Assy	Roof Top Bulkhead Connector C01
7	57M8165	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11
7	57M7546	2	Elec. Connector Terminal	Cavity 7, 12
8	57M8242	1	Elec. Connector Accessory	StarFire™ Receiver C02
8	57M8165	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11
8	57M7546	2	Elec. Connector Terminal	Cavity 7, 12
9	03M7467	2	Bolt	M6 X 16
10	R209721	4	Bumper	-
11	37M7255	4	Screw	-
12	PF81190	1	Bracket Kit	-
13	A21710	2	Washer	-
14	L169020	1	Clip	-
15	14M7744	2	Flange Nut	M6
16	SU49786	1	Bracket	GPS Receiver
17	SJ292981	1	Wiring Harness	GPS Wiring Harness
18	57M7793	1	Elec. Connector Housing	Cab Harness
18	57M7732	2	Electrical Connector Assy	-
19	57M9069	1	Elec. Connector Housing	GPS
19	57M7682	1	Elec.Connect Locking Device	-
19	R78069	7	Elec. Connector Cavity Plug	Cavity 1, 2, 4, 6, 7, 9, 12
20	57M11226	1	Elec. Connector Accessory	GPS
20	57M8009	1	Elec.Connect Locking Device	-
21	RE207311	1	Electronic Control Unit	-
21	57M7260	1	Elec. Connector Housing	-
21	SJ11295	1	Wiring Harness	Roof Harness to Receiver INCLUDES RE207311 AND57M7260
22	57M7261	1	Elec. Connector Housing	Cab Harness 01
22	57M7296	1	Elec. Connector Accessory	-
22	57M7494	2	Elec. Connector Terminal	Cavity A, E
22	R104846	3	Elec. Connector Terminal	Cavity C, D, H
22	57M9215	4	Elec. Connector Seal	Cavity A, C, E, H
22	57M7258	1	Elec. Connector Seal	Cavity D
23	57M7793	1	Elec. Connector Housing	Control Area Network Terminator 03
23	57M7732	2	Electrical Connector Assy	-
24	BPF11358	1	Hardware Kit	Single Display Mounting ORDER BPF12124
24	BPF12124	1	Hardware Kit	Single Display Mounting
25	19M7784	2	Screw	M10 X 20
26	19M7867	2	Screw	M8 X 25
27	21M1689	4	Wing Screw	M6 X 12
28	RE594355	1	Bracket	Display Mounting USE WITH BPF12124
28	RE558242	1	Bracket	Display Mounting USE WITH BPF11358
29	N209668	3	Knob	-
30	N209692	2	Lock Washer	-
31	R569654	1	Bracket	Monitor Mount
32	R244202	1	Bracket	Monitor Mount
33	R255897	1	Bracket	Greenstar Display
34	R255898	1	Angle	-
35	T143534	1	Spacer	-
36	03M7191	1	Bolt	M10 X 25
37	03M7192	1	Bolt	M10 X 30
38	03M7233	1	Bolt	M10 X 70
39	57M8242	1	Elec. Connector Accessory	StarFire™ Radio Connector
40	PH81227135	4	Screw	-
41	PH81227237	1	Nut	-

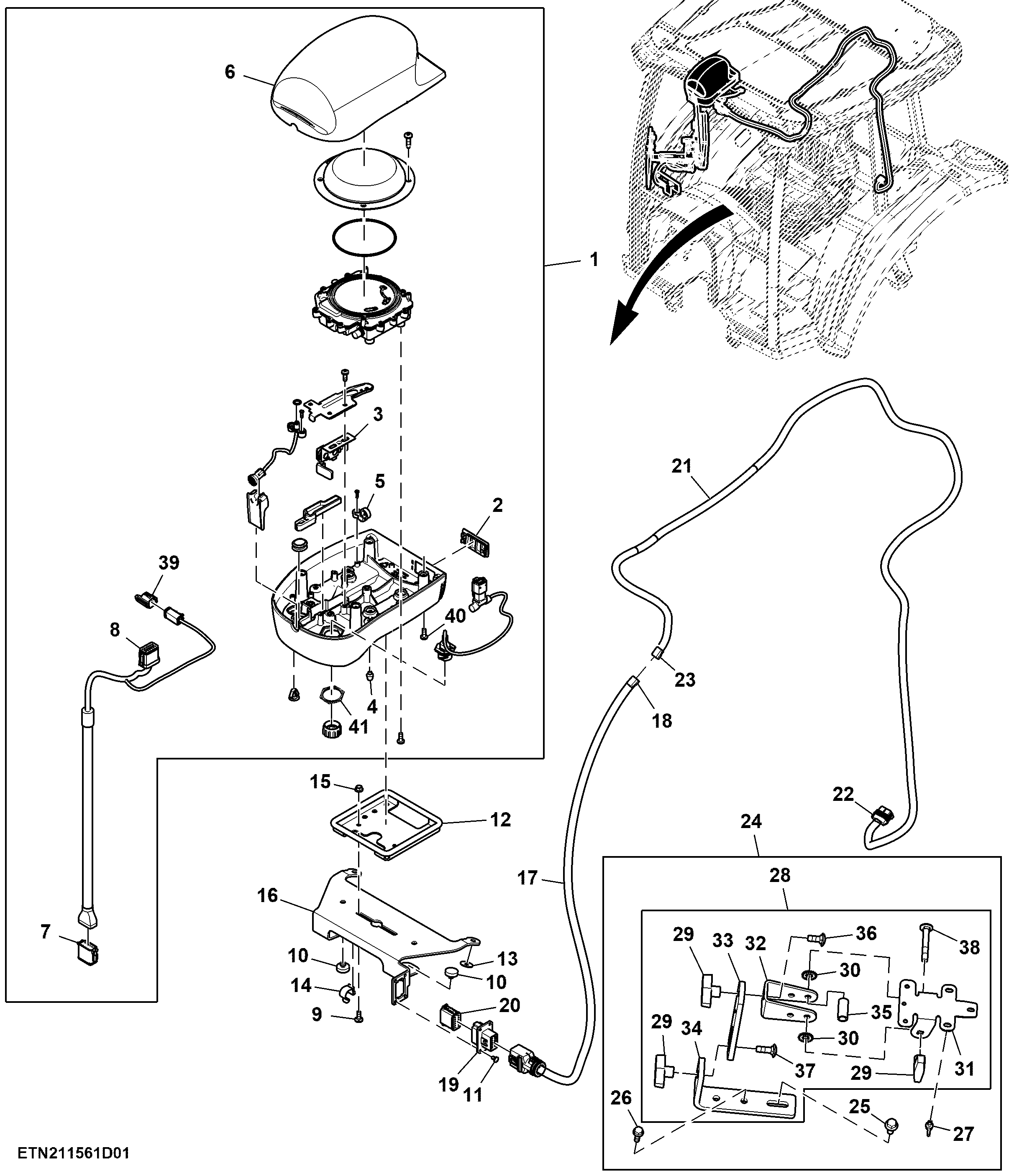

Position Receiver, W/ Display Module 4640, 9X3
