Cab Wiring Harness, PowrReverser™, AutoTrac™ Universal 300 (8/8)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ41713	1	Wiring Harness	Front Console
2	57M8761	1	Elec. Connector Housing	Front Wiper Motor M604
2	57M10980	4	Elec. Connector Terminal	Cavity 1 - 4
3	57M8872	1	Elec. Connector Terminal	Wiper Motor Ground M604-2
4	57M7256	1	Elec. Connector Housing	Audible Alarm H603
4	57M9712	1	Elec. Connector Accessory	-
4	R104919	2	Elec. Connector Terminal	Cavity A, B
4	57M9215	2	Elec. Connector Seal	Cavity A, B
5	57M8564	2	Elec. Connector Terminal	Cavity 1, 2
5	57M8567	2	Elec. Connector Seal	Cavity 1, 2
5	57M10497	1	Elec. Connector Housing	Starter Relay K071
6	57M7560	2	Elec. Connector Terminal	Starter Relay K071
7	57M14636	1	Elec. Connector Housing	AMS ATU A611
7	57M8164	6	Elec. Connector Terminal	Cavity 1 - 3, 7, 10, 13
7	R78069	12	Elec. Connector Cavity Plug	Cavity 4 - 6, 8, 9, 11, 12, 14 - 18
8	57M8484	1	Elec. Connector Housing	Instrument Cluster J4 A041-J4
8	57M9446	10	Elec. Connector Seal	Cavity B, C, D, E, F, G, H, K, L, P
8	57M9223	6	Elec. Connector Seal	Cavity A, J, M, N, R, S
8	57M8299	4	Elec. Connector Terminal	Cavity A, M, R, S
8	57M8300	2	Elec. Connector Terminal	Cavity J, N
8	57M9919	1	Elec. Connector Accessory	-
9	57M7260	1	Elec. Connector Housing	Instrument Cluster J2 A041-J2
9	57M7291	1	Electrical Connector Assy	-
9	R104846	1	Elec. Connector Terminal	Cavity A
9	57M7494	3	Elec. Connector Terminal	Cavity B, D, E
9	57M9215	1	Elec. Connector Seal	Cavity A
9	57M9214	3	Elec. Connector Seal	Cavity B, D, E
9	57M7259	2	Elec. Connector Seal	Cavity C, F
10	57M7259	5	Elec. Connector Seal	Cavity C, E, F, J, K
10	57M9214	2	Elec. Connector Seal	Cavity B, G
10	57M9215	3	Elec. Connector Seal	Cavity A, D, H
10	R104846	3	Elec. Connector Terminal	Cavity A, D, H
10	57M7494	2	Elec. Connector Terminal	Cavity B, G
10	57M7262	1	Elec. Connector Housing	Instrument Cluster J1 A041-J1
10	57M8907	1	Elec.Connect Locking Device	-
11	57M8758	1	Elec. Connector Housing	Light Switch S017
11	57M8757	3	Elec.Connect Locking Device	-
11	57M8292	1	Elec. Connector Terminal	Cavity 3
11	57M7429	2	Elec. Connector Terminal	Cavity 1, B
12	57M10913	1	Elec. Connector Housing	Hazard Switch S071
12	57M9199	2	Elec. Connector Terminal	Cavity C, D
12	57M9200	1	Elec. Connector Terminal	Cavity E
13	57M7896	1	Electrical Connector Assy	Hi - Low Headlight Switch S007
13	57M7429	3	Elec. Connector Terminal	Cavity T, W, Y
14	57M9776	1	Elec. Connector Housing	AMS Control Area Network Terminator R601
14	57M11134	1	Elec. Connector Housing	-
14	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
15	57M9549	3	Elec. Connector Seal	Cavity A - C
15	57M10924	3	Elec. Connector Terminal	Cavity A - C
15	RE12364	1	Electrical Connector Assy	Brake Pedal Switch S048, RH
16	RE12364	1	Electrical Connector Assy	Brake Pedal Switch S047, LH
16	57M10924	3	Elec. Connector Terminal	Cavity A - C
16	57M9549	3	Elec. Connector Seal	Cavity A - C
17	57M7255	1	Elec. Connector Housing	Park Brake Switch S042
17	57M7290	1	Elec. Connector Accessory	-
17	57M7494	3	Elec. Connector Terminal	Cavity A - C
17	57M9214	3	Elec. Connector Seal	Cavity A - C
18	57M9231	1	Elec. Connector Housing	AMS Monitor A610
18	57M9230	5	Elec. Connector Terminal	Cavity N, P, R, U, V
18	57M9232	1	Elec. Connector Seal	-
19	57M9232	1	Elec. Connector Seal	-
20	57M11134	1	Elec. Connector Housing	AMS Control Area Network Terminator R601
21	14M7303	1	Flange Nut	M6
22	19M7775	1	Screw	M6 X 16
23	12M7122	1	Lock Washer	8.400 mm
24	57M9535	1	Elec. Connector Terminal	Front Console Ground GND002

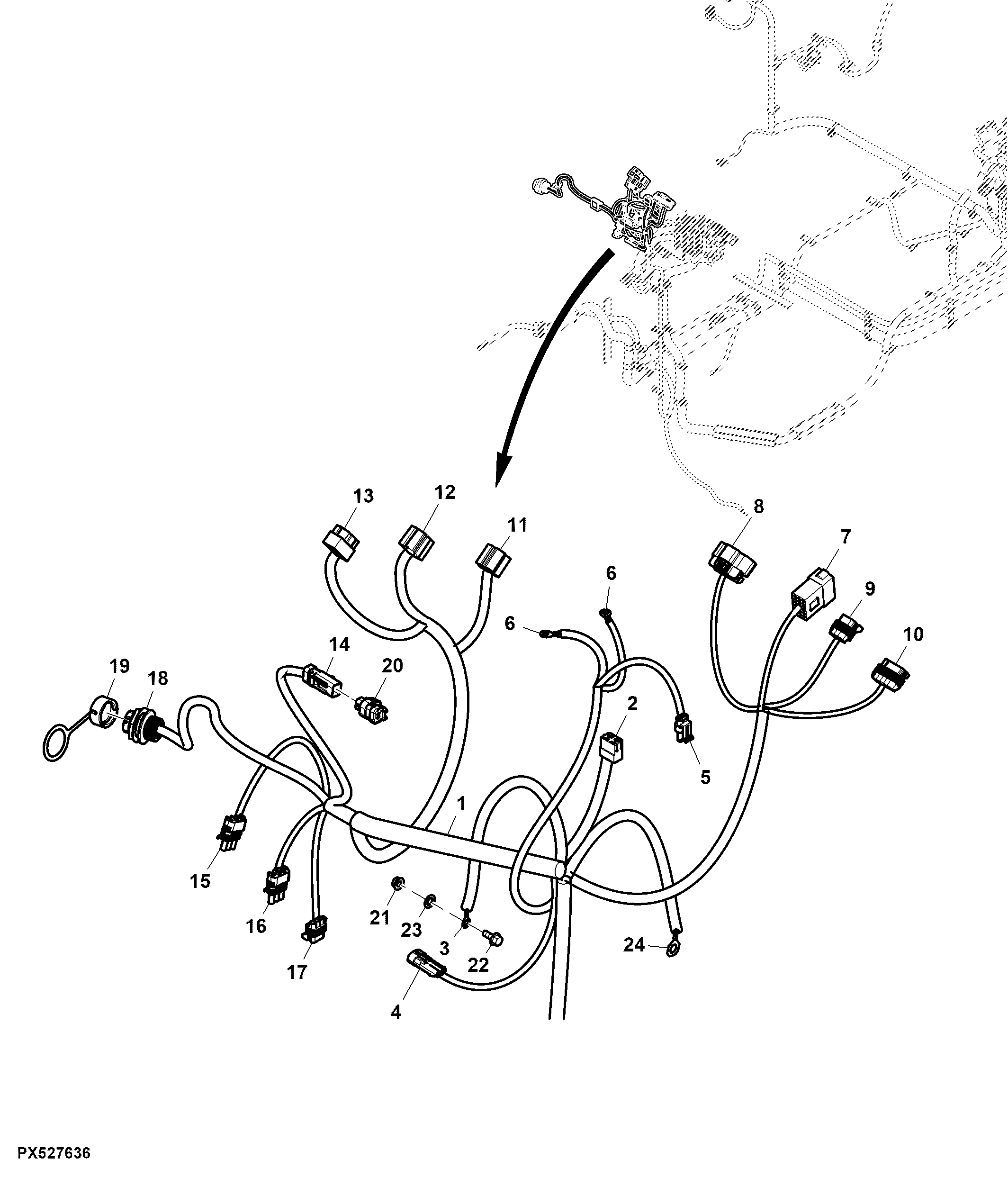

Cab Wiring Harness, PowrReverser™, AutoTrac™ Universal 300 (8/8)
