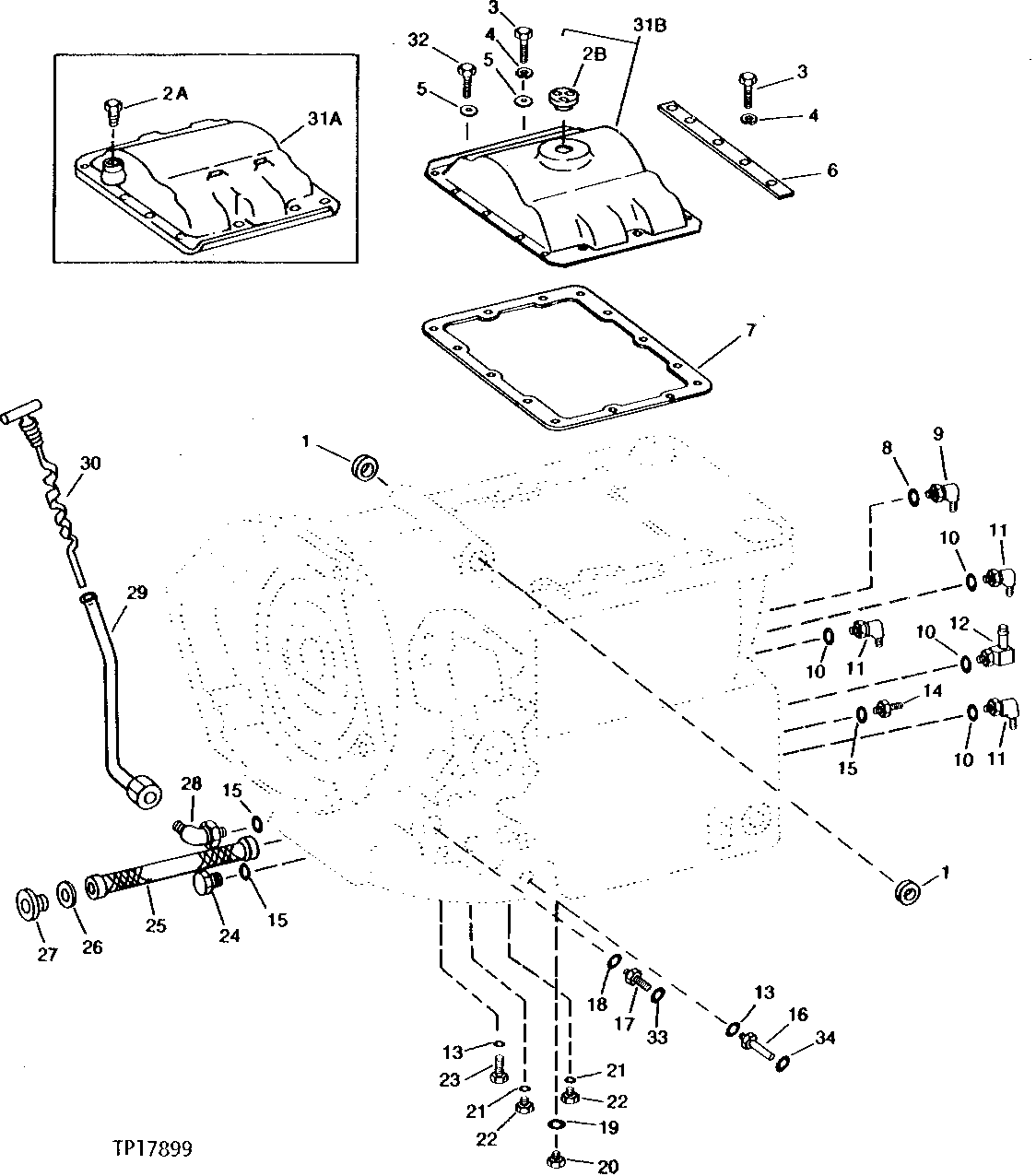

TRANSMISSION COVER, DIPSTICK AND SCREEN [01D02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL20186	2	SEAL	-
3	19H2676	13	Cap Screw	3/8" X 1"
4	12H304	13	Lock Washer	3/8"
5	A4624R	5	Washer	13/32" X 1.060" X 0.120"
5	24H1682	5	Washer	13/32" X 7/8" X 0.120"
6	R89720	2	REINFORCEMENT	-
6	R33701	2	REINFORCEMENT	-
7	T27419	1	GASKET	-
8	R26906	1	O-Ring	-
9	AH75158	1	Fitting	-
10	R26286	3	O-Ring	-
11	RE56322	3	Tee Fitting	(SUB FOR AT32333)
12	AR64705	1	Elbow Fitting	-
13	R26448	3	O-Ring	-
14	T29839	1	Fitting	-
15	U13639	3	O-Ring	-
16	38H1173	1	Adapter Fitting	-
16	R39249	1	Adapter Fitting	-
17	R27267	1	Fitting	-
17	38H1163	1	Adapter Fitting	-
18	U12547	1	O-Ring	(SUB FOR U12547, THIS APPLICATION)
19	U17409	1	O-Ring	-
20	T78662	1	Drain Plug	OIL, (SUB FOR T76939)
21	R26287	2	O-Ring	-
22	R31631	2	DRAIN PLUG	(SUB FOR R72834)
23	R27218	1	Fitting Plug	-
24	R39741	1	Drain Plug	-
25	R53169	1	Screen	(SUB FOR AR26375)
26	U15973	1	O-Ring	-
27	T77170	1	Fitting Plug	-
28	X20C5OX-S	1	Elbow Fitting	(SUB FOR AT35600)
29	AT75476	1	DIPSTICK TUBE	-
30	AT107879	1	DIPSTICK	(SUB FOR AT65929)
32	19H3239	1	Cap Screw	3/8" X 1-1/4"
33	T77858	1	O-Ring	-
34	T77857	1	O-Ring	-
2A	AH20868	1	Breather	(SUB FOR T27805)
2B	AT90145	1	BREATHER	-
31A	AT79021	1	COVER	(SUB FOR AT61330, THIS APPLICATION) (SUB AT90144 AND R89720)
31B	AT90144	1	COVER	-

TRANSMISSION COVER, DIPSTICK AND SCREEN [01D02]
