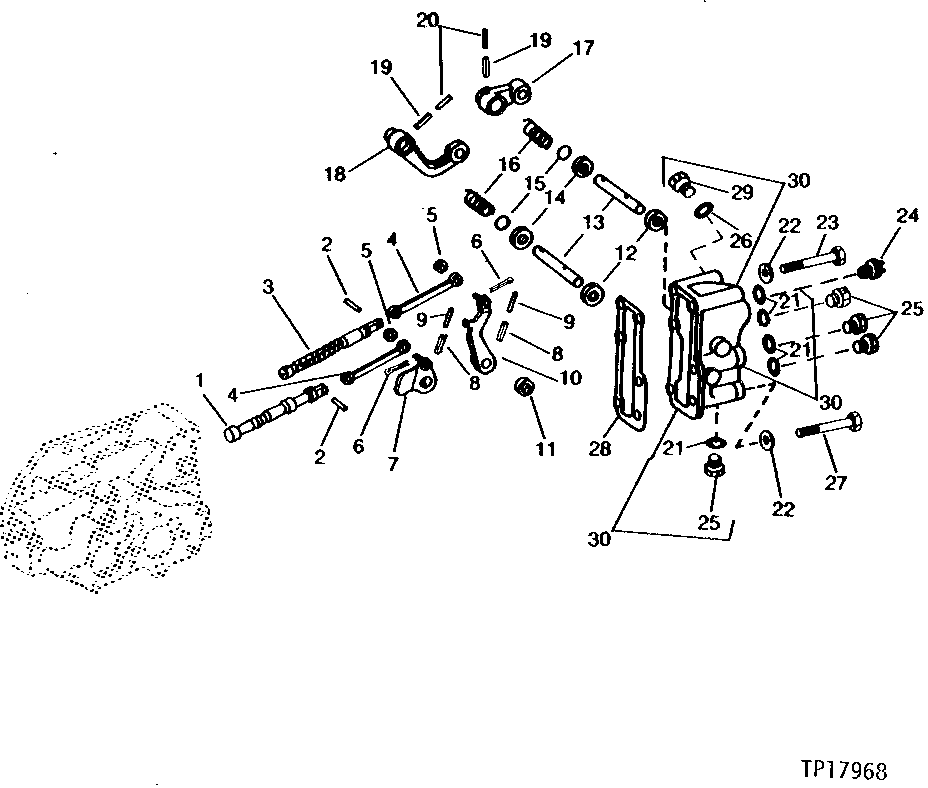

TRANSMISSION CONTROL VALVE COVER, VALVES AND ARMS [01E14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R82024	1	VALVE	-
1	R82024	1	VALVE	REVERSE, (SUB FOR R72411)
2	34H309	2	Spring Pin	1/4" X 5/8"
3	R82116	1	VALVE	(SUB FOR R72412)
4	R33290	2	LINK	-
5	24H753	2	Washer	9/32" X 5/8" X 0.049"
6	11M7077	2	Cotter Pin	1.600 X 25 MM
7	RE22321	1	ARM	REVERSE VALVE, (SUB FOR AR53843)
8	R56504	2	Spring Pin	7/32" X 1"
9	R56503	2	SPRING PIN	1/8" X 1"
10	RE21304	1	ARM	CONTROL VALVE, (SUB FOR AR53844)
11	R51494	1	WASHER	1.52 MM (.060")
12	AR103873	2	Seal	(SUB FOR R33587)
13	R49819	2	PIN	-
14	R36364	2	WASHER	-
15	24H1359	2	Washer	5/8" X 7/8" X 0.060"
16	F3221R	2	SPRING	-
17	R49817	1	LEVER	REVERSE
18	R49816	1	LEVER	CONTROL VALVE
19	R56506	2	SPRING PIN	7/32" X 1-1/4"
20	34H252	2	SPRING PIN	1/8" X 1-1/4", (SUB FOR R56505)
21	R26448	5	O-Ring	-
22	24M7096	6	Washer	0.413" X 0.709" X 0.063"
23	19H2855	5	Cap Screw	-
24	AT85153	1	SWITCH	BACKUP ALARM, (SUB FOR AR85323 AND AR89691)
25	R27218	4	Fitting Plug	-
26	R26287	1	O-Ring	-
27	19H3445	1	Cap Screw	3/8" X 3-3/4"
28	R33275	1	GASKET	-
29	R27216	1	DRAIN PLUG	-
30	AR95904	1	COVER	(MARKED R72414) (SUB R82331, R26287, (5) R26448, R27216 AND R27218)
30	-	1	Part 32	(MARKED R82331) (WHEN RE21305 IS NO LONGER AVAILABLE, SUB R82331, R26287, (5) R26448, R27216 AND R27218)
30	R82331	1	COVER	(DOES NOT INCLUDE PLUGS AND O-RINGS)

TRANSMISSION CONTROL VALVE COVER, VALVES AND ARMS [01E14]
