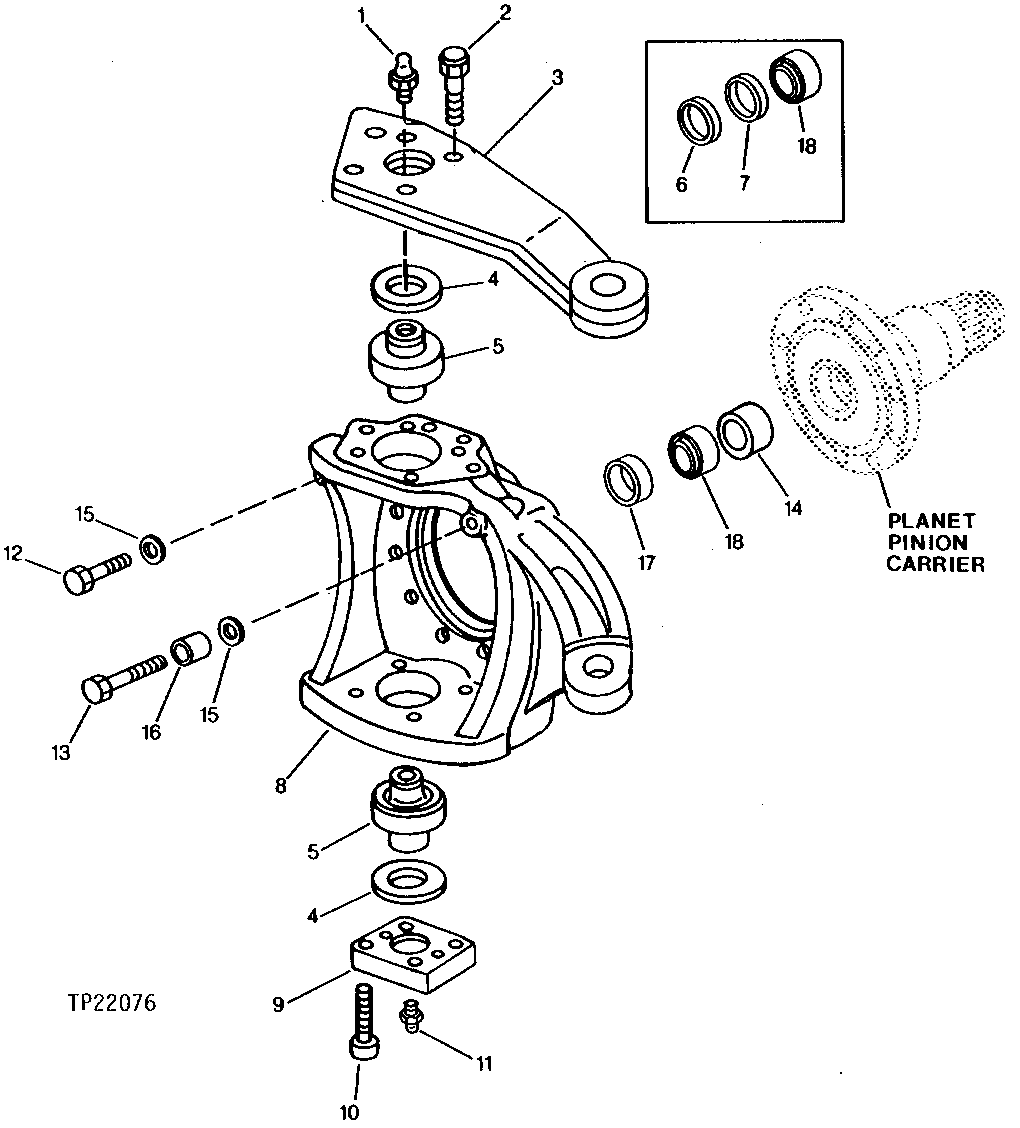

STEERING HOUSING AND ARM (MECHANICAL FRONT WHEEL DRIVE) [01C03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	58M5574	2	Lubrication Fitting	8 X 1MM
2	19M7770	6	Screw	M14 X 50
2	19M5827	4	Cap Screw	M14 X 30, (L.H.) (NOT ILLUSTRATED)
3	L35765	1	Arm	(USE WITH R.H. ONLY)
3	L35743	1	Cover	(USE WITH L.H. ONLY) (NOT ILLUSTRATED)
4	L35751	1	Washer	2.7MM (.106")
4	L35758	1	Washer	2.75MM (.108")
4	L35757	1	Washer	2.85MM (.112")
4	L35756	1	Washer	2.95MM (.116")
4	L35755	1	Washer	3.05MM (.120")
4	L35754	1	Washer	3.15MM (.124")
4	L35753	1	Washer	3.3MM (.130")
4	L35752	1	Washer	2.6MM (.102")
4	L35750	1	Washer	2.8MM (.110")
4	L35749	1	Washer	2.9MM (.114")
4	L35748	1	Washer	3.0MM (.118")
4	L35747	1	Washer	3.1MM (.122")
4	L35746	1	Washer	3.2MM (.126")
5	L35745	2	Kingpin	-
6	-	1	Part 20	(SUB AT113922)
7	-	1	Part 21	(SUB FOR L35762 AND T78878) (SUB AT113922)
8	T77439	1	HOUSING	L.H. (NOT ILLUSTRATED)
8	T77440	1	HOUSING	R.H.
9	T77441	2	COVER	-
10	19M5827	8	Cap Screw	8 X 1MM
11	58M5574	2	Lubrication Fitting	-
12	19M6424	1	CAP SCREW	M12 X 30
13	-	1	Part 28	( 19M7006 - NO LONGER AVAILABLE)
14	L35738	2	Bushing	-
15	T25050	1	Washer	12.979 X 18.796 X 3.048 MM, (SUB FOR M43331)
15	24M7047	1	Washer	13 X 24 X 2.500 MM
15	24H1340	1	Washer	33/64" X 7/8" X 0.075"
15	24H1338	1	Washer	33/64" X 7/8" X 0.048"
16	28H3353	1	BUSHING	-
17	AT113922	1	CAP	-
18	T77438	1	SEAL	-

STEERING HOUSING AND ARM (MECHANICAL FRONT WHEEL DRIVE) [01C03]
