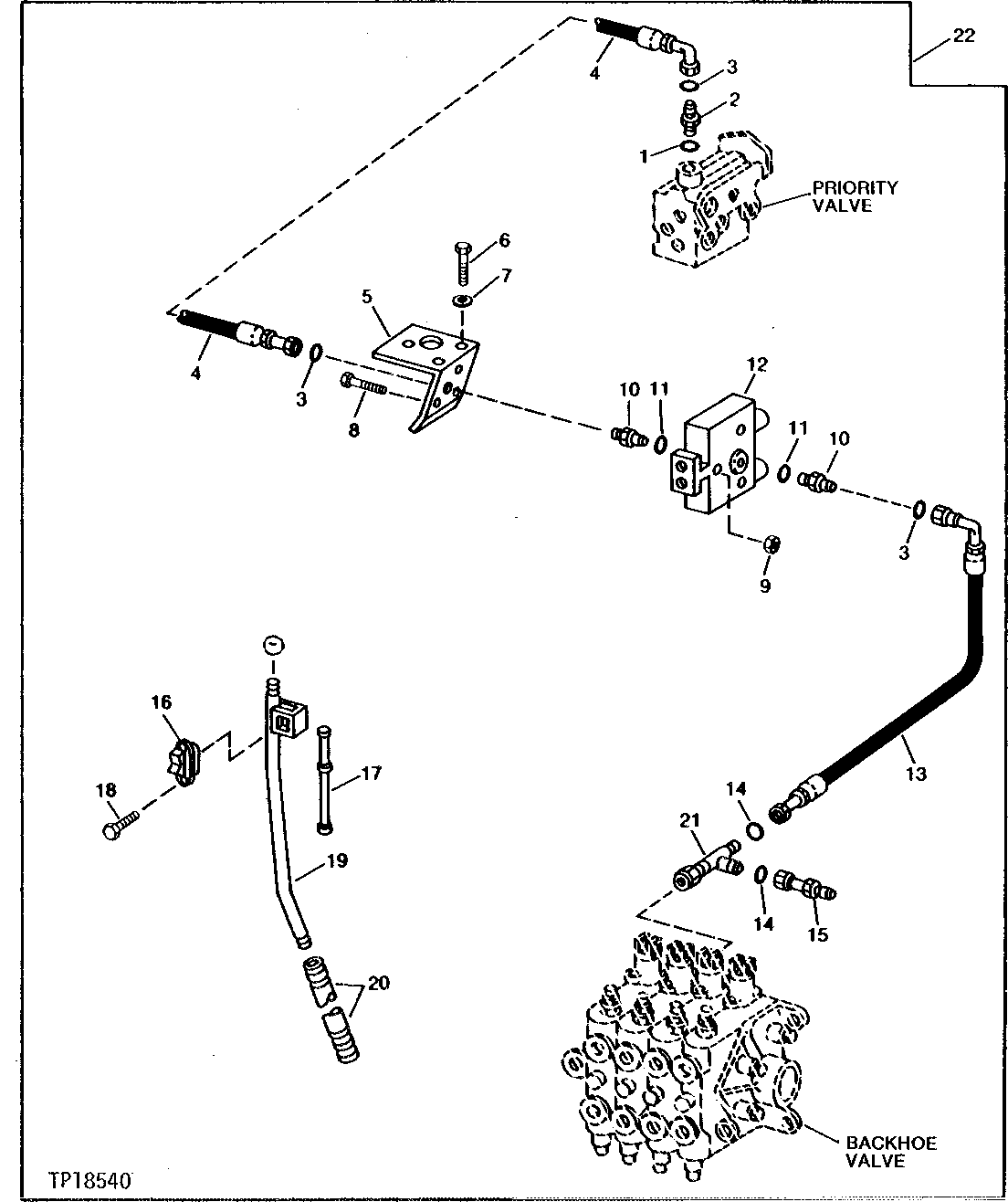

SOLENOID AUXILIARY VALVE (SERIAL NO. 718801- ) [03G18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U17409	1	O-Ring	-
2	38H1351	1	ADAPTER FITTING	-
3	T77932	3	O-Ring	-
4	AT83898	1	HYDRAULIC HOSE - FABRICATE	1" X 1 283 MM (50-1/2") X 1"
5	AT76399	1	SUPPORT	-
6	19M7402	3	Cap Screw	M10 X 25
7	24M7101	3	Washer	11 X 34 X 3 MM
8	19M7668	3	Cap Screw	M10 X 100
9	14M7274	3	Nut	M10
10	38H1447	2	Adapter Fitting	(SUB FOR 38H1351, THIS APPLICATION)
11	R29936	2	O-Ring	(SUB FOR U17409, THIS APPLICATION)
12	-	1	Part 12	( AT107665 NO LONGER AVAILABLE) (SUBSTITUTES ARE AVAILABLE, CONTACT CUSTOM ENGINEERING DEPT.,DUBUQUE,IOWA) (INCLUDES (2) AR81175 AND AT77265) (SUB FOR AT75442)
13	AT83899	1	HYDRAULIC HOSE - FABRICATE	1" X 660 MM (26") X 13/16"
14	T77857	2	O-Ring	-
15	AT83896	1	ADAPTER FITTING	(WITH 37° FLARE STABILIZER PLUMBING)
16	AT75444	1	ROCKER SWITCH	-
17	AT75445	1	WIRING HARNESS	-
18	21H1353	2	Screw	0.138" X 3/4"
19	AT75443	1	LEVER	SWITCH BRACKET
20	T76950	1	Conduit	-
21	38H1031	1	Tee Fitting	-
22	AT83897	1	KIT	AT83897 NO LONGER AVAILABLE, (SUB FOR AT75441) (ALSO ORDER AT83890)

SOLENOID AUXILIARY VALVE (SERIAL NO. 718801- ) [03G18]
