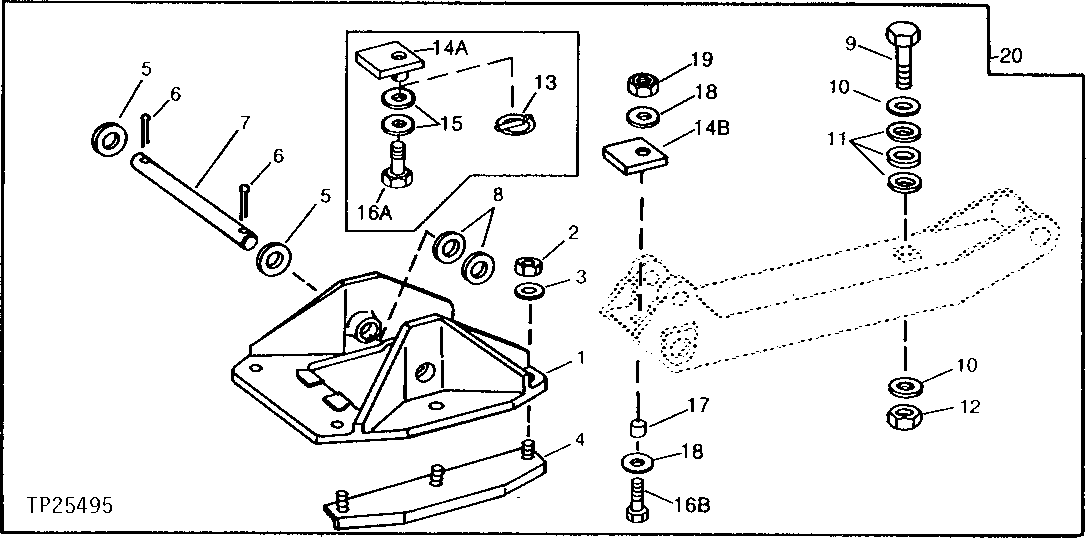

REVERSIBLE STABILIZER FOOT WITH CATCH [03C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T206569	2	Stabilizer Foot	(SUB FOR T166258) (ALSO ORDER (6) T29342) (USE WITH T69472) (SUB FOR T128658)
1	T77506	2	STABILIZER FOOT	(SUB FOR T106434, THIS APPLICATION) (SUB T206569)
2	14H826	12	Nut	1/2", (SUB FOR 14H1040, THIS APPLICATION)
3	T29342	24	Washer	17/32" X 1-1/4" X 0.180"
4	AT195669	4	Street Pad	(SUB FOR AT51569, AT114691 AND AT192120)
5	24H1595	4	Washer	2-1/16" X 3" X 0.075", (SUB FOR U44051, THIS APPLICATION)
6	11H270	4	Cotter Pin	1/2" X 3"
7	T75649	2	PIN	(SUB T69472)
7	T69472	2	Pin Fastener	(USE WITH T128658 AND T166258)
8	24H1595	1	Washer	2-1/16" X 3" X 0.075"
9	19M7417	2	Cap Screw	M16 X 65
10	24M7053	4	Washer	17 X 30 X 3 MM, (SUB FOR F2783R, THIS APPLICATION)
11	24M7053	8	Washer	17 X 30 X 3 MM, (SUB FOR T17776 AND T83426, THIS APPLICATION)
12	14M7276	2	Nut	M16
13	AR62151	2	Quick Lock Pin	-
15	24H1106	4	Washer	11/16" X 1-3/4" X 0.134", (SUB FOR R28695, THIS APPLICATION) (USE WITH AT82850)
17	28H3365	2	Washer	0.742" X 1.050" X 5/16", (USE WITH T105934)
18	24H1106	4	Washer	11/16" X 1-3/4" X 0.134", (USE WITH T105934)
19	14M7276	2	Nut	M16, (USE WITH T105934)
20	-	1	Part 25	( AT151986 NO LONGER AVAILABLE) (SUB FOR AT73761)
14A	AT78766	2	CATCH	(SUB AT82850, 19M7792 AND (2) 24H1106)
14A	AT82850	2	CATCH	-
14B	T105934	2	STRAP	-
16A	19M7792	2	Screw	M16 X 30, (USE WITH AT82850) (HEX FLANGE)
16B	19M7417	2	Cap Screw	M16 X 65, (USE WITH T105934)

REVERSIBLE STABILIZER FOOT WITH CATCH [03C13]
