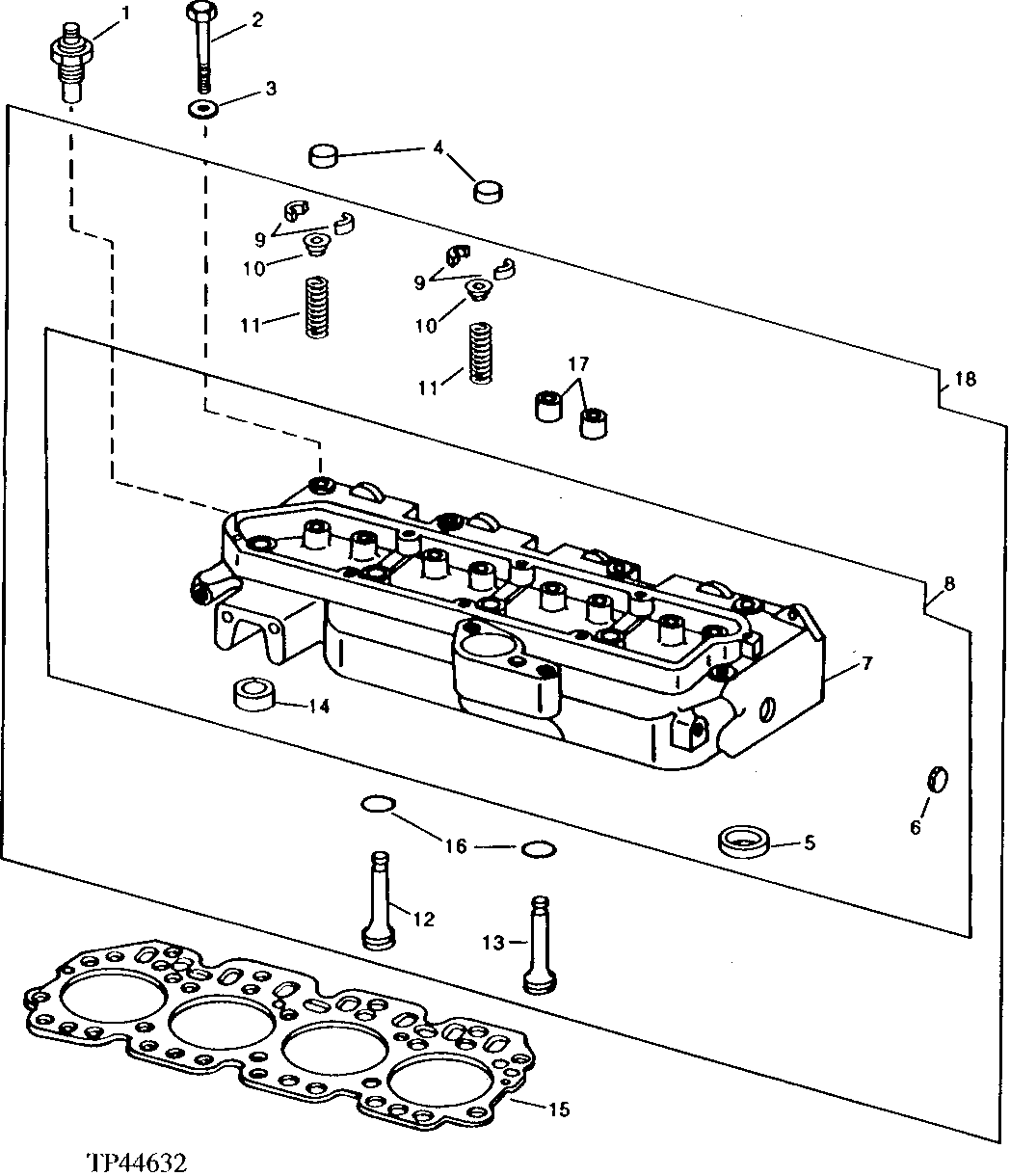

REPLACEMENT CYLINDER HEAD AND VALVES [01G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H605	1	Nut	0.164"
1	24H1283	1	Washer	7/32" X 1/2" X 0.049"
1	14H631	1	Nut	0.190", (USE WITH AT100084)
1	12H295	1	Lock Washer	0.190", (USE WITH AT100084)
1	AT135260	1	Switch	(INCLUDES NUT AND WASHER) (SUB FOR AT100084) ENGINE COOLANT TEMPERATURE
2	R85363	18	Cap Screw	-
3	T20168	18	Washer	(DO NOT USE WITH R85363)
4	T20129	8	Cap	-
5	R51734	4	VALVE SEAT INSERT	EXHAUST
6	CD16284	1	Plug	OUTER DIAMETER 32.5MM
6	A3910R	1	PLUG	OUTER DIAMETER 25.6MM
7	-	1	Part 12	(SUB RE56545)
8	-	1	Part 13	(MARKED R57078) (AR100074 NO LONGER AVAILABLE) (SUB RE56545)
9	T20077	16	Retainer	-
10	RE11410	8	Rotator	-
11	R26125	8	Spring	-
12	R79624	4	EXHAUST VALVE	STANDARD(USE WITH AR100073)
12	R89229	4	EXHAUST VALVE	(.030 OVERSIZE) (USE WITH RE56545)
12	R89228	4	EXHAUST VALVE	(.015 OVERSIZE) (USE WITH RE56545)
12	R89227	4	EXHAUST VALVE	(.003 OVERSIZE) (USE WITH RE56545)
12	R89226	4	EXHAUST VALVE	(STD.) (USE WITH RE56545)
12	-	4	Part 20	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE
12	R79626	4	EXHAUST VALVE	0.38 MM (.015") OVERSIZE, (USE WITH AR100073)
12	R79625	4	EXHAUST VALVE	0.08 MM (.003") OVERSIZE, (USE WITH AR100073)
13	R83071	4	INTAKE VALVE	STANDARD
13	R88174	4	INTAKE VALVE	0.08 MM (.003") OVERSIZE
13	R88175	4	INTAKE VALVE	0.36 MM (.015") OVERSIZE
13	R88176	4	INTAKE VALVE	0.76 MM (.030") OVERSIZE
14	R73064	4	VALVE SEAT INSERT	INTAKE
15	R91878	1	GASKET	-
16	R87627	8	O-RING	(USE WITH AR100074)
17	R110524	8	Seal	(USE WITH RE56545)
18	RE56545	1	CYLINDER HEAD	(MARKED R57078) (WITH VALVES,SPRINGS,INSERTS,SEALS AND ROTATORS) (SUB FOR AR100073,THIS APPLICATION)

REPLACEMENT CYLINDER HEAD AND VALVES [01G09]
