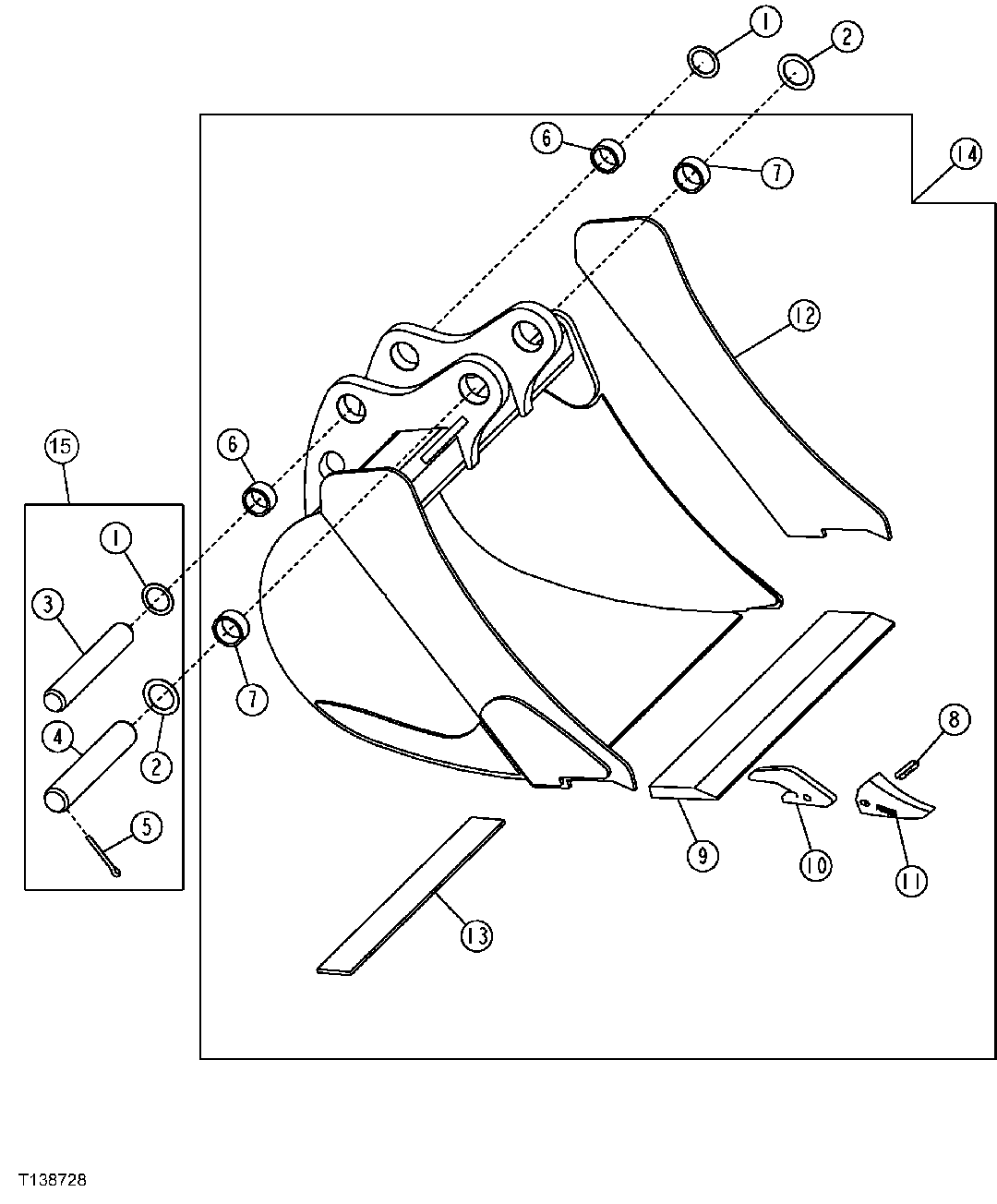

REPLACEMENT BACKHOE BUCKETS AND PINS [03B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1536	2	Washer	-
2	24H1574	2	Washer	-
3	T185829	1	Pin Fastener	38.100 X 320 MM
4	T185830	1	Pin Fastener	44.475 X 320 MM
5	11H221	4	COTTER PIN	-
6	T187114	2	Bushing	(SUB FOR T185793)
7	T187115	2	Bushing	(SUB FOR T185792)
8	TF23P	1	Pin	(FLEX)
9	T161279	1	Dura-Max Cutting Edge	(A)(CUT TO LENGTH)
9	T161319	1	Dura-Max Cutting Edge	(B)(CUT TO LENGTH)
10	U43792	1	Bucket Tooth Adapter	-
11	TF23D	1	Tooth	(TIP)
12	T162535	2	Plate	-
12	T162569	2	Plate	-
13	-	1	Part 15	(USE WITH SEVERE DUTY BUCKETS) 1020 HR STEEL - 692 X 76 X 8 MM
14	AT192004	1	BACKHOE BUCKET	(WHOLE GOODS) (A) 304MM (12") HEAVY DUTY 3.3 CUBIC FEET, (CONTAINS (2) T162535) (ALSO ORDER AT192262)
14	AT192006	1	BACKHOE BUCKET	(WHOLE GOODS) (A) 457MM (18") HEAVY DUTY 5.1 CUBIC FEET, (CONTAINS (2) T162535) (ALSO ORDER AT192262)
14	AT192008	1	BACKHOE BUCKET	(WHOLE GOODS) (A) 610MM (24") HEAVY DUTY 7.5 CUBIC FEET, (CONTAINS (2) T162535) (ALSO ORDER AT192262)
14	AT192009	1	BACKHOE BUCKET	(WHOLE GOODS) (A) 610MM (24") HEAVY DUTY 8.8 CUBIC FEET, (CONTAINS (2) T162569) (ALSO ORDER AT192262)
14	AT192010	1	Backhoe Bucket	(WHOLE GOODS) (B) 762MM (30") HEAVY DUTY 10.0 CUBIC FEET, (CONTAINS (2) T162535) (ALSO ORDER AT192262)
15	AT192262	1	KIT	-
