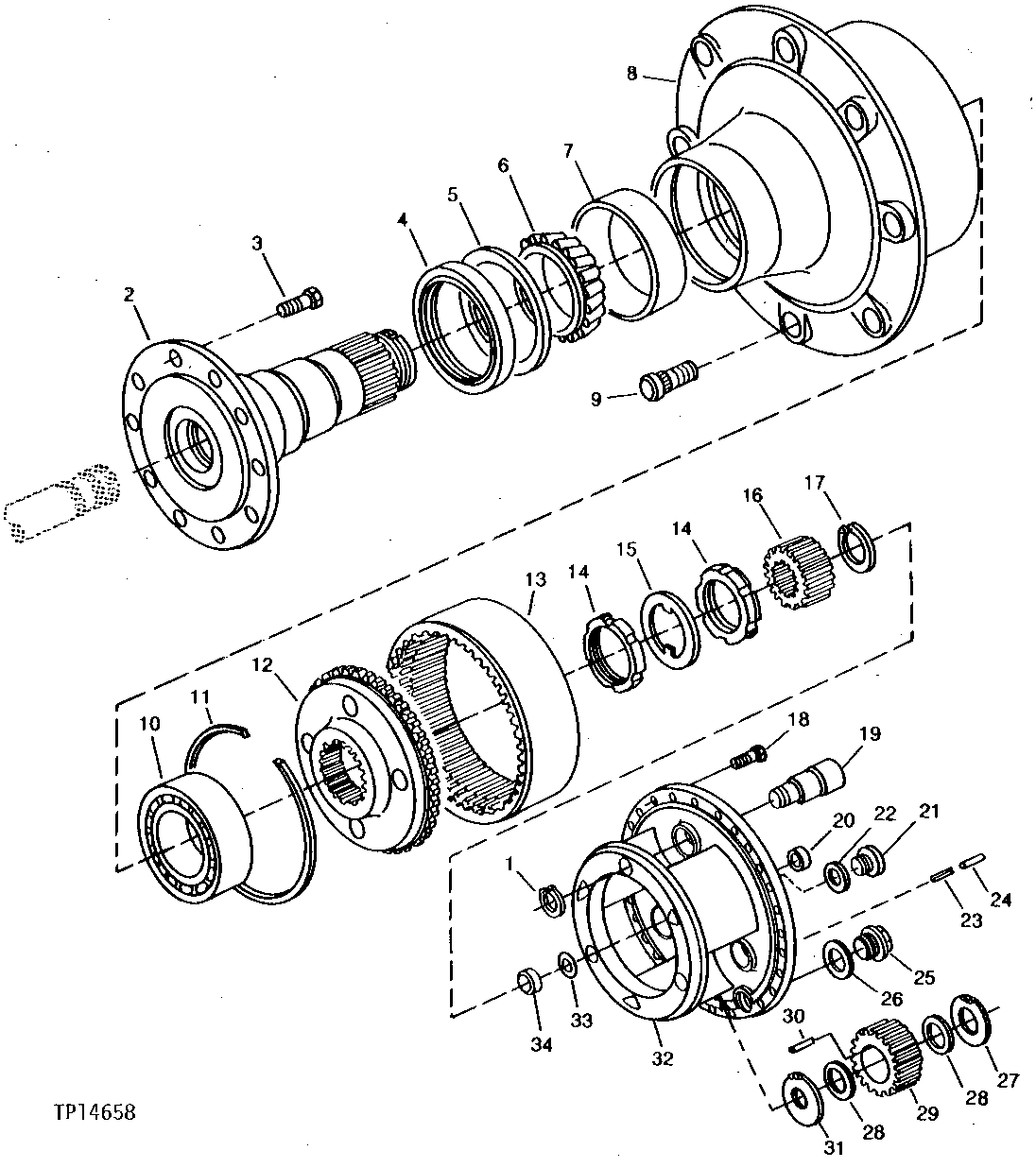

PLANET PINION CARRIER (MECHANICAL FRONT WHEEL DRIVE) [01B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	40M7080	6	Snap Ring	20 X 1.2MM
2	AT78497	2	PLANET PINION CARRIER	(SUB FOR AL33351)
3	52M7013	4	Nut	M50, (SUB FOR T78879)
3	19M7877	24	Cap Screw	M14 X 30
4	AL32997	2	Seal	-
5	L35763	2	Washer	-
6	JD8946	2	Bearing Cone	-
7	JD7272	2	Bearing Cup	-
8	L35764	2	Hub	-
9	L35619	16	WHEEL BOLT	-
10	JD10096	2	Tapered Roller Bearing	(RACE AND TAPERED BEARING SET)
11	40M7079	2	Snap Ring	170 X 2.5MM
12	T113172	2	GEAR	(SUB FOR L35735) RING
13	T113171	2	RING GEAR	(SUB FOR L35736) INTERNAL
14	52M7013	4	Nut	M50, (SUB FOR T78879)
15	L35760	2	Plate	-
16	T113174	2	GEAR	(SUB FOR L35734) SUN
17	40M7081	2	Snap Ring	32 X 2MM
18	19M7513	54	Cap Screw	M8 X 30
19	L35731	6	Pin Fastener	-
20	30M7004	2	Plug	-
21	T113570	2	Drain Plug	(SUB FOR 15M7025, THIS APPLICATION)
22	51M4240	2	Sealing Ring	-
23	34M7224	8	Spring Pin	8 X 26 MM
24	34M7102	8	Spring Pin	5 X 26 MM
25	T113569	2	DRAIN PLUG	(SUB FOR L35596, THIS APPLICATION)
26	51M7018	2	Sealing Ring	24 X 29MM
27	L35591	6	Thrust Washer	-
28	L35590	12	Washer	-
29	T113173	6	PLANET PINION	(SUB FOR L35732) PLANET
30	L35739	132	Needle	-
31	L35733	6	Washer	-
32	L35730	2	Planet Pinion Carrier	-
33	L35593	2	Washer	1.0MM (.039")
33	L35594	1	Shim	0.5MM (.019")
33	L35595	1	Shim	0.3MM (.012")
34	L35592	6	Dowel Pin	-
