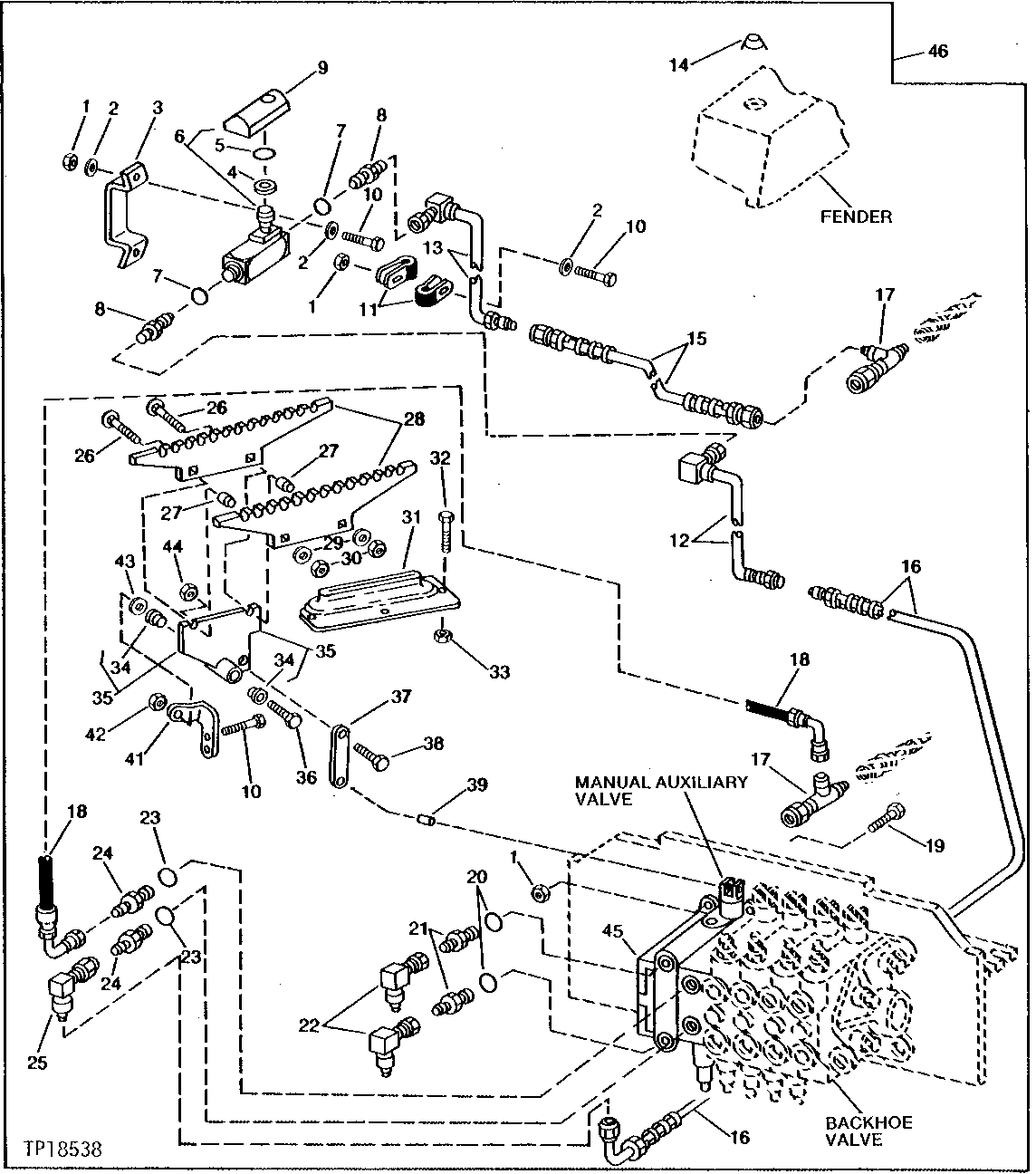

MANUAL AUXILIARY CONTROL VALVE (WITH FLOW CONTROL) (SERIAL NO. -718800) [03G12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	6	Nut	M10
2	24M7028	5	Washer	10.500 X 20 X 2 MM
3	T76941	1	CLAMP	-
4	W23690	1	Back-Up Ring	-
5	32246	1	O-Ring	-
6	AT75430	1	FLOW CONTROL HYD. VALVE	-
7	R29936	2	O-Ring	-
8	T37105	2	ADAPTER FITTING	-
9	T76942	1	ISOLATOR	-
10	19M7402	3	Cap Screw	M10 X 25
11	R46414	2	Clamp	(SUB FOR AH78125, THIS APPLICATION)
12	AT75431	1	OIL LINE	-
13	AT75432	1	OIL LINE	-
14	T76943	1	ESCUTCHEON	-
15	AT78026	1	HYDRAULIC HOSE - FABRICATE	3/4" X 760 MM (30") X 7/8"
16	AT75435	1	HYDRAULIC HOSE	7/8" X 820 MM (32-1/4") X 3/4"
17	AN33434	2	Tee Fitting	-
18	AT75003	1	HYDRAULIC HOSE - FABRICATE	3/4" X 578 MM (22-3/4") X 3/4"
19	19M7550	3	Cap Screw	M10 X 35
20	R26375	2	O-Ring	-
21	H63597	2	Adapter Fitting	-
22	AT46867	2	Elbow Fitting	-
23	R26906	2	O-Ring	-
24	H63597	2	Adapter Fitting	-
25	AH75164	1	Elbow Fitting	-
26	03H1557	2	Bolt	3/8" X 1-1/4"
27	28H1519	2	Washer	0.493" X 0.675" X 3/8"
28	T100956	2	PEDAL	(SUB FOR T71678)
29	24H1305	2	Washer	13/32" X 13/16" X 0.065"
30	14H732	2	Nut	3/8"
31	AT76514	1	BOOT	-
32	T77832	4	Self-Locking Screw	-
33	14M7272	4	Nut	M6
34	T52805	2	BUSHING	-
35	AT76055	1	PIVOT	-
36	19H2969	1	Cap Screw	HS, SAE 8, 5/8" X 3-1/2"
37	AT70245	1	LINK	-
38	19H3374	1	Cap Screw	5/16" X 1-1/4"
39	34H277	1	SPRING PIN	3/16" X 5/8"
40	19M7867	2	Screw	M8 X 25
41	T43147	1	FLANGE FITTING	-
42	14H1039	1	Nut	5/8"
43	24H1364	1	Washer	21/32" X 15/16" X 0.036"
44	R11151	1	Lock Nut	-
45	AT65943	1	SPOOL VALVE	EXTENDIBLE DIPPERSTICK
46	AT75438	1	VALVE	(SUB AT83890 AND AT83900)

MANUAL AUXILIARY CONTROL VALVE (WITH FLOW CONTROL) (SERIAL NO. -718800) [03G12]
