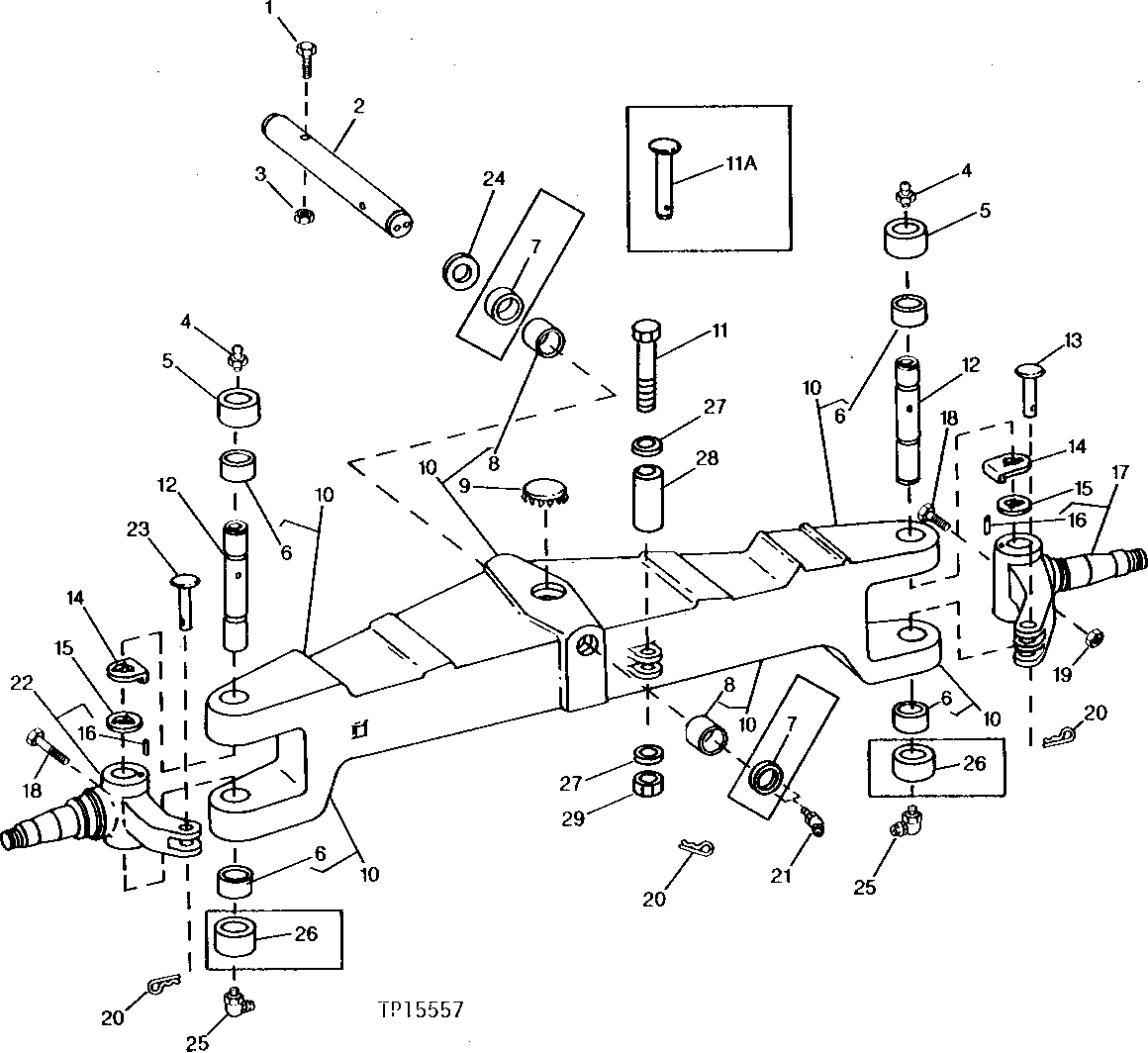

FRONT AXLE, SPINDLE AND KNUCKLE ASSEMBLY [01B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7949	2	Cap Screw	M12 X 100
2	T75383	1	PIN FASTENER	-
3	14M7319	1	Lock Nut	M12
4	T162396	2	Lubrication Fitting	1/8", (SUB FOR JD7759 OR JD7798)
5	T69027	2	Seal	-
6	T23170	4	BUSHING	-
7	-	2	Part 7	( T67592 IS NO LONGER AVAILABLE OR REQUIRED)
8	T140211	2	Bushing	(SUB FOR T69352)
9	L2083C	1	Plug	(SUB FOR R1680R, THIS APPLICATION)
10	AT166010	1	FRONT AXLE	(MARKED T149772) (SUB FOR AT66368) (MARKED T69351) (SUB FOR AT106559) (MARKED T106099)
12	T184816	2	Kingpin	(SUB FOR AT86426 AND T69365) (ALSO ORDER (4) T162396)
13	T69355	1	Pin	-
14	T69364	2	Thrust Washer	-
15	T69363	2	Thrust Washer	-
16	34M7117	2	Spring Pin	5 X 10 MM
17	AT182387	1	Knuckle	R.H. (MARKED T82851) (SUB FOR AT66370) (MARKED T82851)
18	19H3445	2	Cap Screw	3/8" X 3-3/4"
19	T11234	2	Lock Nut	3/8"
20	11M7028	3	Cotter Pin	5 X 32 MM
20	11M7028	2	Cotter Pin	5 X 32 MM
20	11M7083	1	Cotter Pin	3.200 X 50 MM, (USE WITH T100810)
20	11H229	1	COTTER PIN	3/32" X 2", (USE WITH 19M6575)
21	JD7763	2	Lubrication Fitting	1/8"
22	AT182388	1	Knuckle	L.H. (MARKED T82852) (SUB FOR AT66371) (MARKED T82852)
23	T69354	1	Pin	-
24	R46973	1	Thrust Washer	-
25	T162396	2	Lubrication Fitting	(SUB FOR JD7799, THIS APPLICATION)
26	T69027	2	Seal	-
27	R42408	2	Washer	-
28	T100813	1	Bushing	-
29	14H909	1	Nut	1/2", (USE WITH T100810)
29	14M7184	1	Nut	M12, (USE WITH 19M6575)
11A	T69356	1	PIN	-
11B	T100810	1	CAP SCREW	(SUB 19M6575, 14M7184 AND 11M7086)
11B	19M6575	1	Cap Screw	M12 X 110

FRONT AXLE, SPINDLE AND KNUCKLE ASSEMBLY [01B14]
