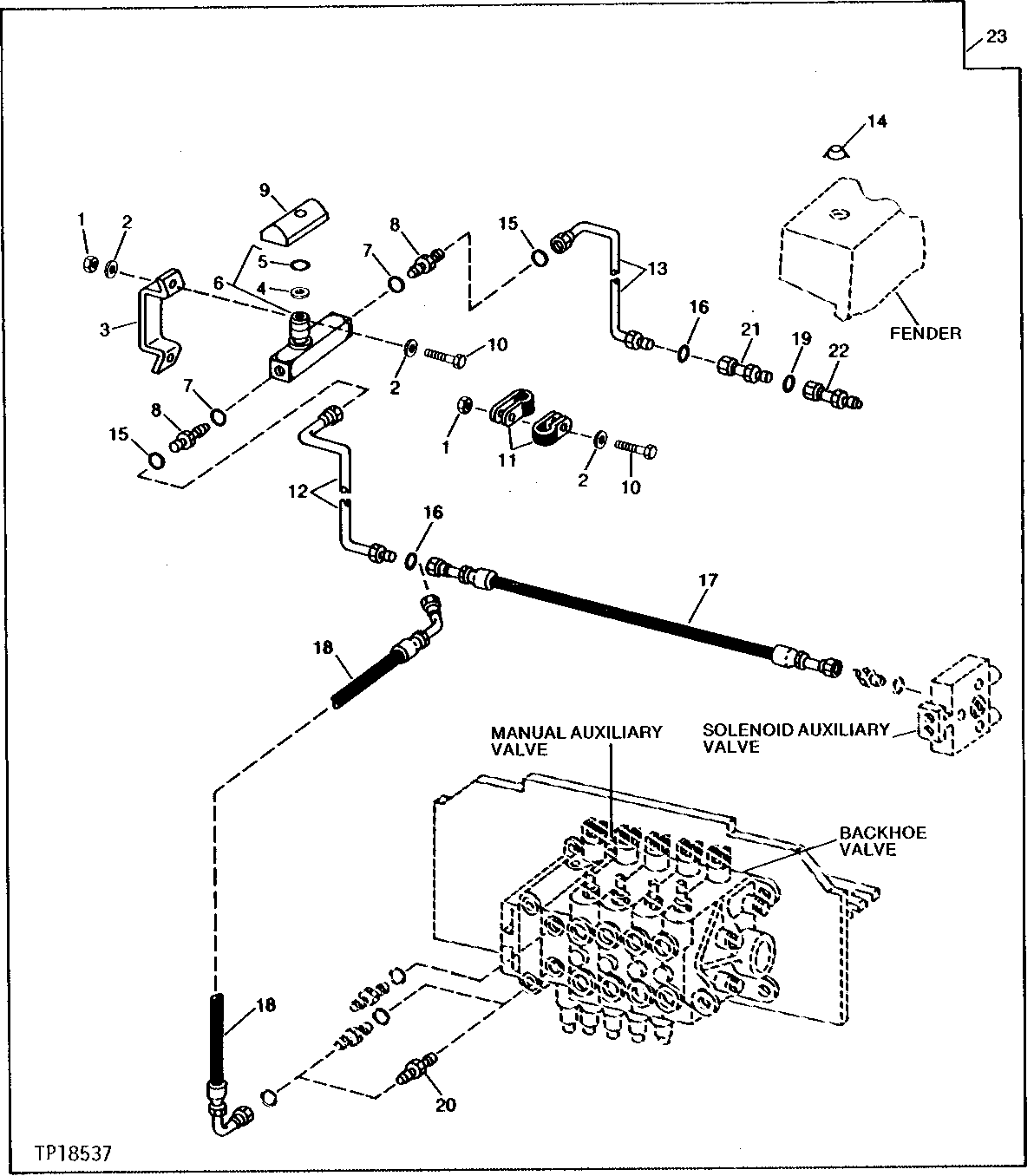

FLOW CONTROL OPTION (FOR USE WITH MANUAL OR SOLENOID AUXILIARY VALVE) (SERIAL NO. 718801- ) [03G08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	3	Nut	M10
2	24M7028	5	Washer	10.500 X 20 X 2 MM
3	T76941	1	CLAMP	-
4	W23690	1	Back-Up Ring	-
5	32246	1	O-Ring	-
6	AT75430	1	FLOW CONTROL HYD. VALVE	-
7	R29936	2	O-Ring	-
8	38H1194	2	Adapter Fitting	-
9	T76942	1	ISOLATOR	-
10	19M7402	3	Cap Screw	M10 X 25
11	T78787	2	Clamp	(SUB FOR T24959, THIS APPLICATION)
12	AT83891	1	OIL LINE	-
13	AT83892	1	OIL LINE	-
14	T76943	1	ESCUTCHEON	-
15	T77858	2	O-Ring	-
16	T77932	2	O-Ring	-
17	AT83893	1	HYDRAULIC HOSE - FABRICATE	1" X 470 MM (18-1/2") X 1", (WITH SOLENOID AUXILIARY VALVE)
18	AT83894	1	HYDRAULIC HOSE - FABRICATE	1" X 835 MM (32-3/4") X 13/16", (WITH MANUAL AUXILIARY VALVE)
19	T77857	1	O-Ring	-
20	38H1174	1	Adapter Fitting	(WITH MANUAL AUXILIARY VALVE WITH 37° FLARE)
21	38H1471	1	Reducer	(WITH MANUAL AUXILIARY VALVE) (SUB FOR AT83895) (ALSO ORDER 38H1355)
22	AT83896	1	ADAPTER FITTING	(WITH MANUAL AUXILIARY VALVE WITH 37° FLARE)
23	AT83890	1	KIT	AT83890 NO LONGER AVAILABLE (ONE PER UNIT FOR USE WITH MANUAL AUXILIARY VALVE OR SOLENOID AUXILIARY VALVE) (SUB FOR AT75429)

FLOW CONTROL OPTION (FOR USE WITH MANUAL OR SOLENOID AUXILIARY VALVE) (SERIAL NO. 718801- ) [03G08]
