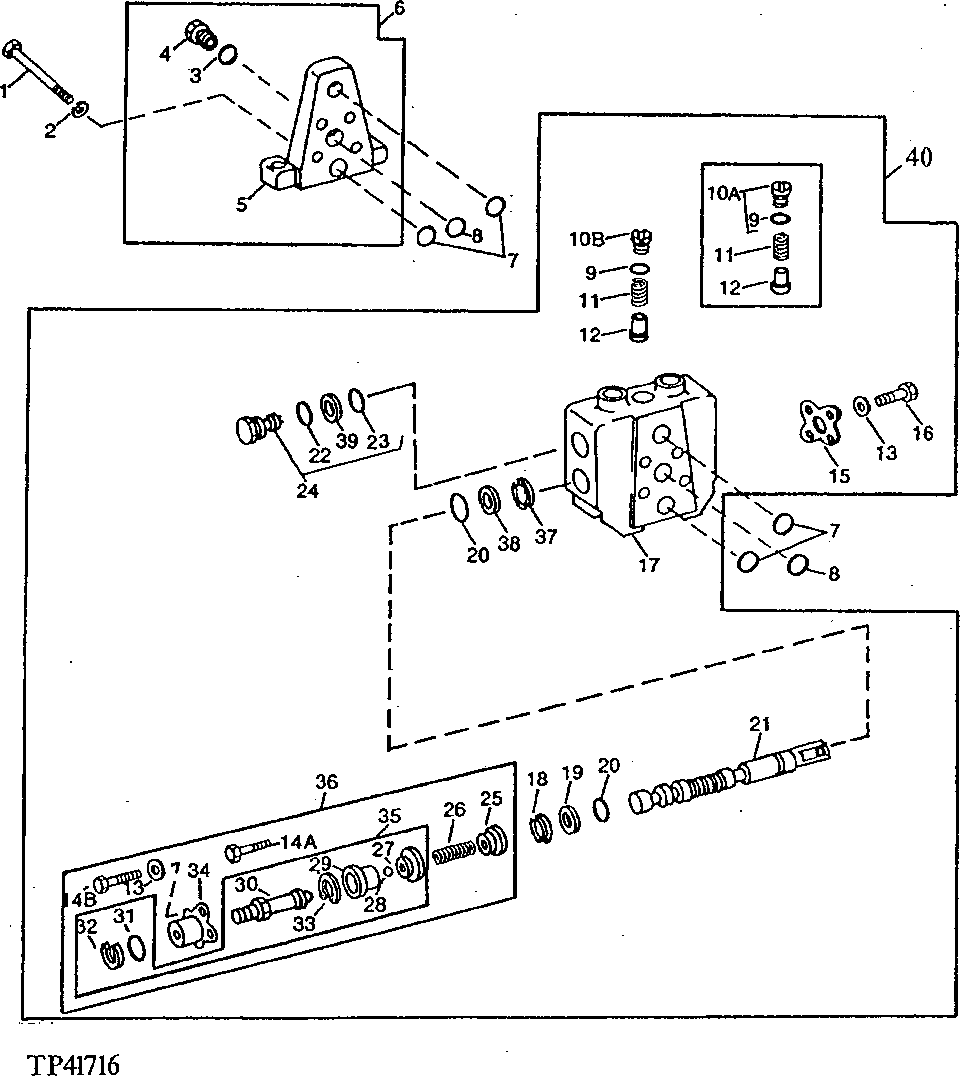

CONTROL VALVE BOOM SECTION (GRESEN) [02I19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3141	4	Cap Screw	3/8" X 5-1/2"
2	12H304	4	Lock Washer	3/8"
3	U12547	1	O-Ring	(K) (SUB FOR T75983)
4	R27175	1	Drain Plug	(SUB FOR AT74121)
5	-	1	Part 5	(SUB AT74120)
6	AT74120	1	COVER	RIGHT
7	T30423	4	O-RING	(K) (K1)
8	T30424	2	O-RING	(K) (K1)
9	U17409	1	O-Ring	(K) (K1)
11	U17406	1	SPRING	-
12	U17396	1	POPPET	-
13	12H302	8	Lock Washer	1/4"
15	T106147	1	PLATE	(K1) (WITH LATER DESIGN)
15	T106147	1	PLATE	(K1) (WITH EARLY DESIGN) (SUB FOR T75974)
16	19H2701	4	SCREW	1/4" X 5/8", (SUB FOR T75973)
17	-	1	Part 20	(SUB AT151265)
18	T75976	1	WASHER	(K1)
19	T75982	1	BACK-UP RING	(K) (K1) NON-METALLIC
20	T122063	2	O-RING	(K) (SUB FOR R495R AND T106371, THIS APPLICATION)
21	-	1	Part 24	(SUB AT151265)
22	U15242	1	O-RING	(K) (K1)
23	T44948	1	O-Ring	(K1)
24	AT156987	1	PRESSURE RELIEF VALVE	ANTI-CAVITATION, (SUB FOR AT74119)
25	T75979	1	PLUG	-
26	T75978	1	SPRING	-
27	-	1	Part 30	(SUB AT75875)
28	H22694	4	BALL	-
29	-	1	Part 32	(SUB AT75875)
30	-	1	Part 33	(SUB AT75875)
31	24H1305	1	Washer	13/32" X 13/16" X 0.065", (SUB FOR T75980 AND T77293)
32	E54612	1	Snap Ring	(SUB FOR T77292 AND T42445)
33	U17408	1	Ring	-
34	-	1	Part 37	( T118754 NO LONGER AVAILABLE)
35	AT75875	1	KIT	-
36	AT74118	1	HYDR./PILOT CONTROL VALVE	-
37	T75976	1	WASHER	(WITH EARLY DESIGN) (SUB T118736 AND T118737, THIS APPLICATION)
37	T118736	1	SEAL	(K1) (WITH LATER DESIGN)
38	T75982	1	BACK-UP RING	(WITH EARLY DESIGN) (SUB T118736 AND T118737, THIS APPLICATION)
38	T118737	1	THRUST WASHER	(K1) (WITH LATER DESIGN)
39	T75972	1	Back-Up Ring	-
40	AT151265	1	SPOOL VALVE	(SUB FOR AT74117) BOOM (REQUIRES AT151244)
10A	AT74114	1	FITTING	LOAD CHECK, (SUB U17393, U17409, U17406 AND U17396)
10B	U17393	1	FITTING	-
14A	T75977	4	SCREW	(SUB (4) 21H1174 AND (4) 12H302)
14B	21H1174	4	SCREW	1/4" X 1"
