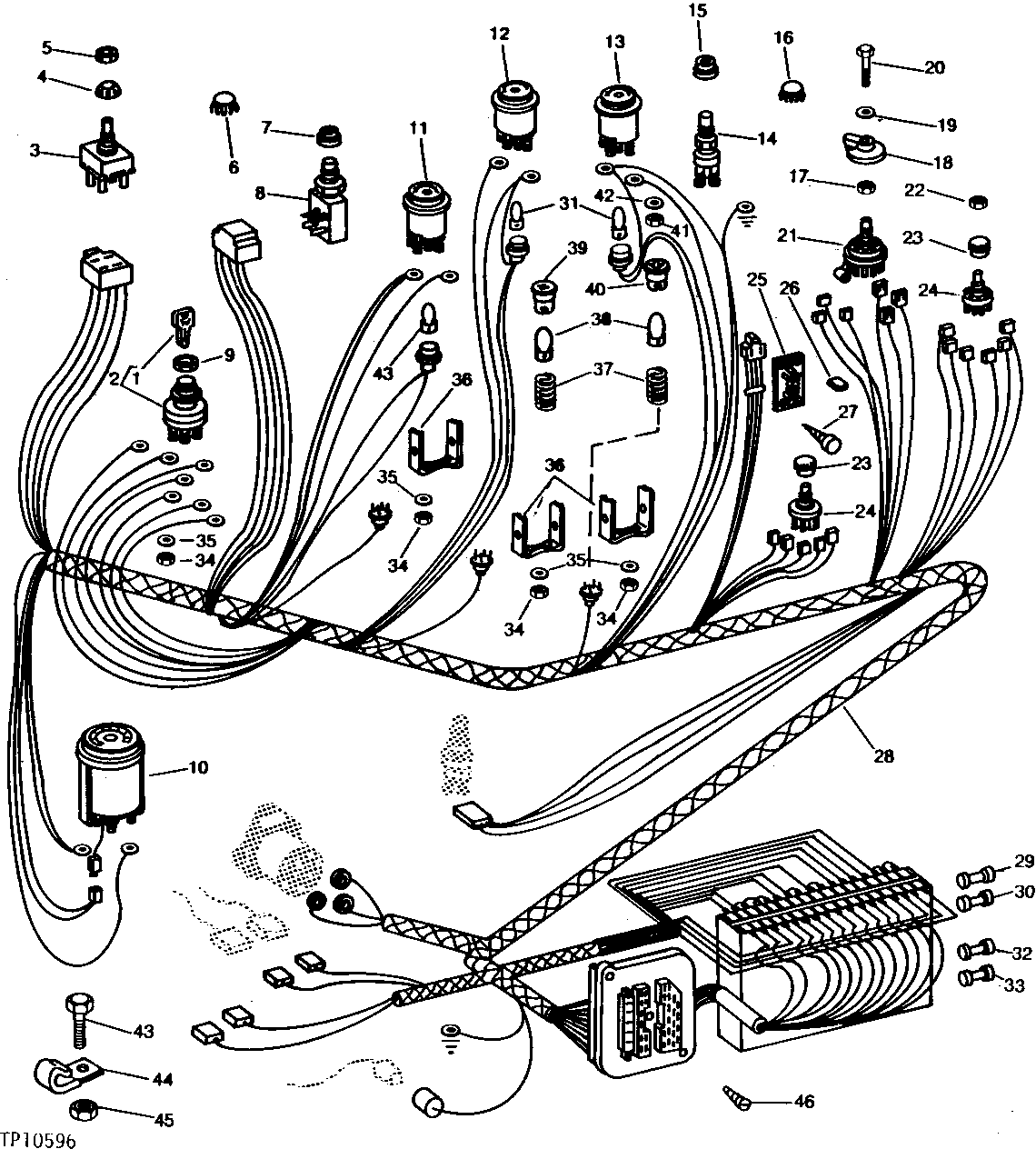

CONSOLE WIRING HARNESS (WITH CAB) [02C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195302	2	Key	(SUB FOR (2) AR51481 AND AT145929)
2	AT37390	1	SWITCH	IGNITION
3	AH84588	1	SWITCH	BLOWER
4	AL58295	1	Knob	(SUB FOR AR69370)
5	E46066	2	Nut	-
6	H99452	1	Plug	(SUB FOR M2655T)
7	T58440	1	CAP	-
8	AT65314	1	SWITCH	STARTER
9	R44342	1	Nut	-
10	AT302762	1	KIT	(SUB FOR AT76756, AT142304 OR AT162517) (INCLUDES HOUR METER)
10	RE12926	1	Bulb	-
11	AT61468	1	GAUGE	FUEL
12	-	1	Part 13	ENGINE TEMPERATURE (STEWART-WARNER) (SUB AT149018) ( AT61467 USE IF AVAILABLE)
12	AT104755	1	TEMPERATURE GAUGE	(K) ENGINE TEMPERATURE (VDO)
13	AT148831	1	TEMPERATURE GAUGE	(SUB FOR AT38821) (ALSO ORDER 15H514) TRANSMISSION OIL
13	T151558	1	LAMP	-
13	AT167692	1	SOCKET	-
14	R39554	1	Switch	STARTING AID
15	T55585	1	Cap	-
16	T16738	1	PLUG	-
17	A4655R	1	Nut	-
18	AT65316	1	KNOB	-
18	AT79053	1	KNOB	-
19	12H315	1	Lock Washer	0.164"
20	21H973	1	Screw	0.164" X 3/8"
21	AT117624	1	SWITCH	(SUB FOR AT79052)
21	AR41288	1	SWITCH	(SUB FOR AT21792) LIGHT
22	14H774	1	Nut	3/8"
23	AT60729	2	KNOB	-
24	AT65321	2	SWITCH	WINDSHIELD WIPER
25	AR90771	1	Resistor	-
26	T66752	1	CAP	(NO LONGER AVAILABLE)
27	37H121	1	Screw	NO. 10 X 5/8"
28	AT78866	1	WIRING HARNESS	(SUB FOR AT74090)
29	AT28077	9	Fuse	10 AMP.
30	AH76113	5	FUSE	20 AMP.
31	T40990	3	BULB	-
32	AT65323	1	FUSE	8 AMP.
33	AT65322	1	FUSE	5 AMP.
34	14H631	12	Nut	0.190"
35	12H295	12	Lock Washer	0.190"
36	T39395	3	BRACKET	-
36	T118593	1	BRACKET	(K)
37	R30378	2	Spring	-
38	AR55694	2	BULB	-
39	AT48673	1	LENS	ALTERNATOR
40	AT48674	1	LENS	OIL PRESSURE
41	14H605	3	Nut	0.164"
42	12M7084	3	Lock Washer	4.300 MM
43	19M7865	1	Screw	M8 X 16
44	AH89486	1	Clip	-
45	14M7298	1	Flange Nut	M8
46	37M7100	4	Screw	3.5MM X 1.27MM

CONSOLE WIRING HARNESS (WITH CAB) [02C24]
