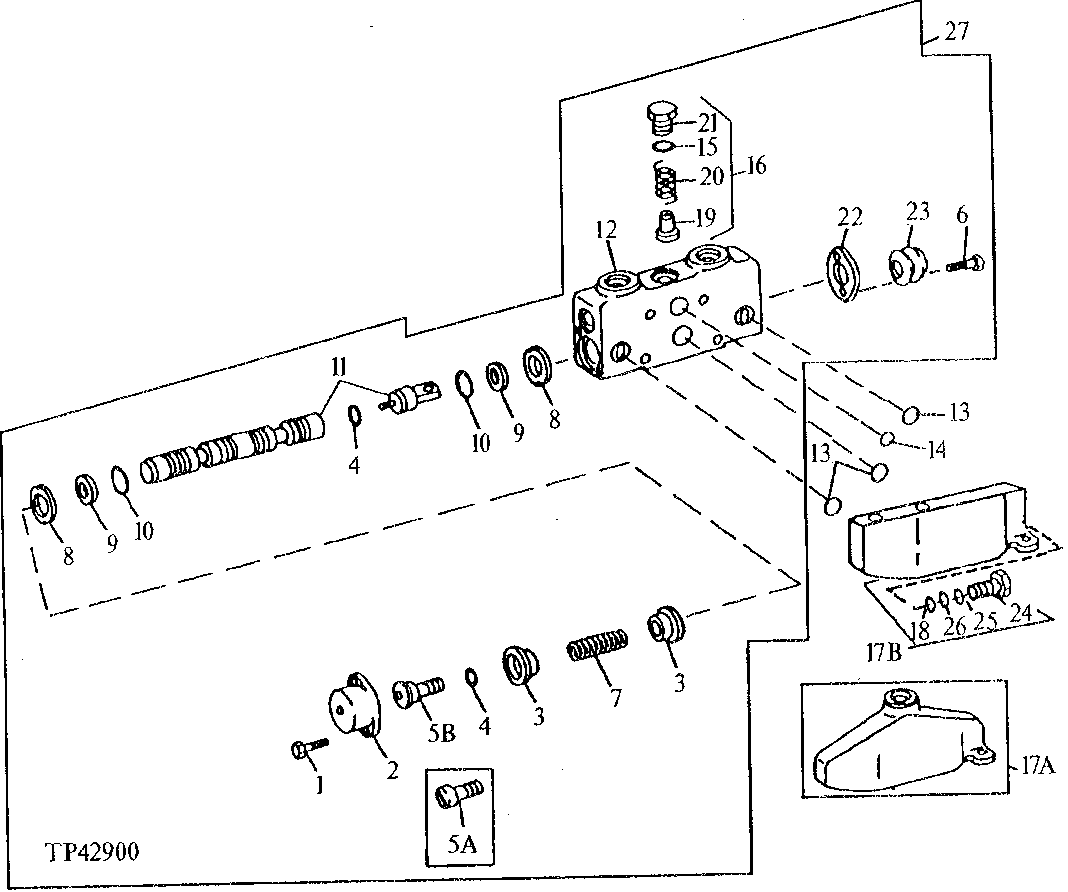

BACKHOE CONTROL VALVE SWING SECTION WITH END PLATE (GRESEN) [03E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T106306	2	Screw	(SUB FOR T35975)
2	AT117656	1	CAP	(SUB FOR T75995 AND T106286)
3	T75991	2	ROUND RETAINER	-
4	R26287	2	O-Ring	-
6	T104773	2	Cap Screw	(SUB FOR T75973)
7	T75992	1	SPRING	-
8	T75997	2	RING	-
9	T76002	2	BACK-UP RING	-
10	T122034	2	O-Ring	(SUB FOR A4730R, THIS APPLICATION) (SUB FOR T106295)
11	-	1	Part 12	(SUB AT163863)
12	-	1	Part 13	(SUB AT163863)
13	-	3	Part 14	(SUB AT159816) (SUB FOR T76003)
14	-	1	Part 15	(SUB AT159816) (SUB FOR U11326, THIS APPLICATION)
15	U17409	1	O-Ring	-
16	AT74127	1	FITTING PLUG	-
18	R27928	1	O-Ring	-
19	-	1	Part 21	( T75990 - NO LONGER AVAILABLE)
20	-	1	Part 22	( U17406 - NO LONGER AVAILABLE)
21	-	1	Part 23	(SUB FOR T75989 AND AT107496) (SUB FOR T54922, THIS APPLICATION)
22	T75998	1	FLANGE	-
23	T149740	1	BOOT	(SUB FOR T75999, T106279 AND T113029)
24	-	1	Part 26	-
25	U17409	1	O-Ring	-
26	T106298	1	BACK-UP RING	-
27	AT163863	1	SPOOL VALVE	SWING SECTION, (USE WITH (2) AT141193) (ALSO ORDER AT159816) (SUB FOR AT118792, AT78106, AT106797 AND AT150396)
5A	T78361	1	PLUG	(SUB T106305)
5B	T106305	1	BUSHING	-
17A	AT74125	1	PLATE	LEFT, (SUB T147004 AND AT159816) (USE WITH AT118792)
17B	T147004	1	COVER	LEFT, (SUB FOR AT74125 AND AT143027) (USE WITH AT118792)

BACKHOE CONTROL VALVE SWING SECTION WITH END PLATE (GRESEN) [03E01]
