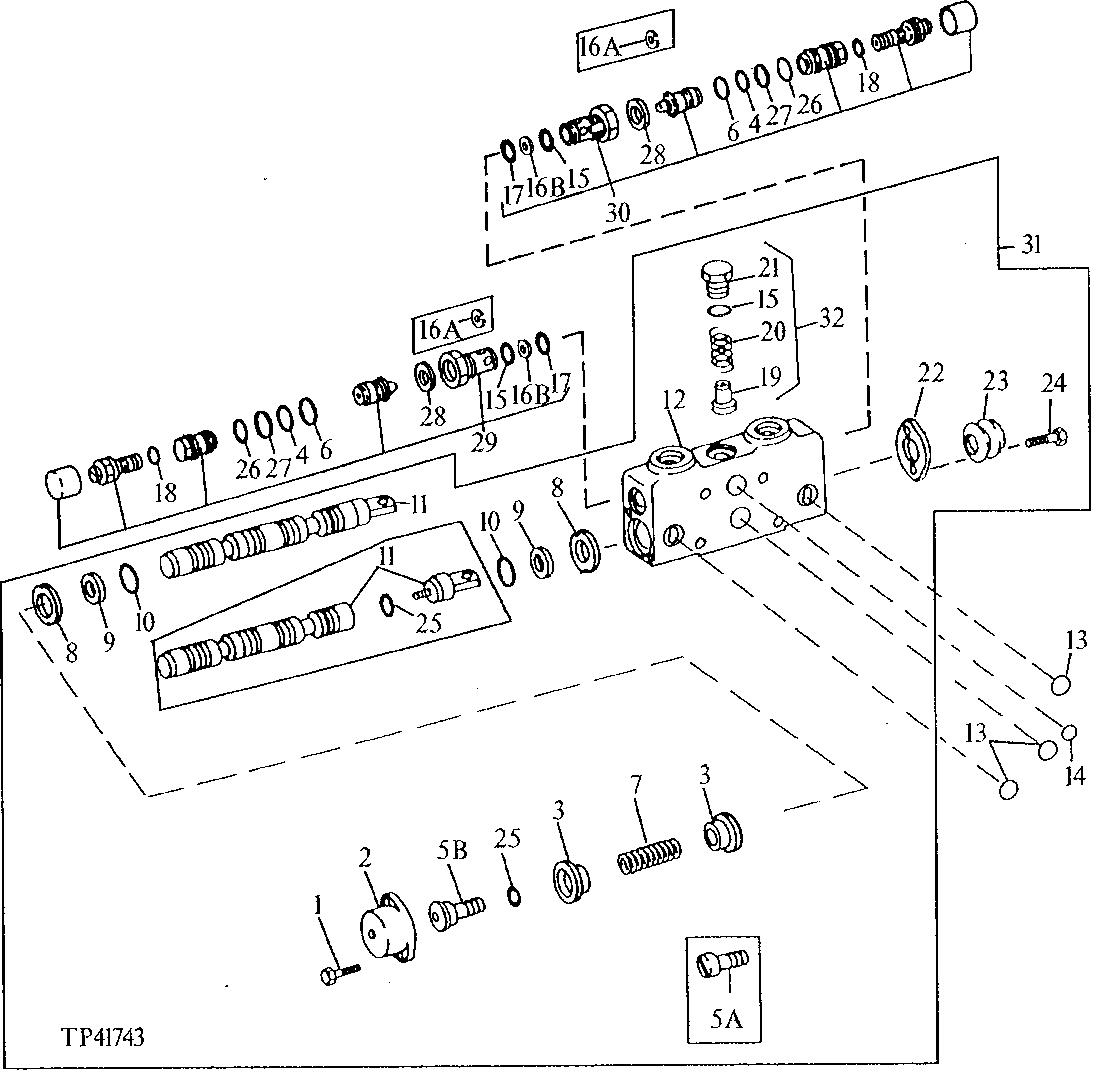

BACKHOE CONTROL VALVE BUCKET SECTION (GRESEN) [03D20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T106306	2	Screw	(SUB FOR T35975)
2	AT117656	1	CAP	(SUB FOR T75995 AND T106286)
3	T75991	2	ROUND RETAINER	-
4	R459R	1	O-Ring	-
6	W23690	1	Back-Up Ring	-
7	T75992	1	SPRING	-
8	T75997	2	RING	-
9	T76002	2	BACK-UP RING	-
10	T122034	2	O-Ring	(SUB FOR A4730R, THIS APPLICATION) (SUB FOR T106295)
11	-	1	Part 12	(SUB AT163865) (ALSO ORDER AT159816)
12	-	1	Part 13	(SUB AT163865) (ALSO ORDER AT159816)
13	-	3	Part 14	(SUB AT159816) (SUB FOR T76003)
14	-	1	Part 15	(SUB AT159816) (SUB FOR U11326, THIS APPLICATION)
15	U17409	3	O-Ring	-
17	R27928	2	O-Ring	-
18	A3917R	1	O-Ring	-
19	-	1	Part 21	( T75990 - NO LONGER AVAILABLE)
20	-	1	Part 22	( U17406 - NO LONGER AVAILABLE)
21	-	1	Part 23	(SUB FOR T75989 AND AT107496) (SUB FOR T54922, THIS APPLICATION)
22	T75998	1	FLANGE	-
23	T149740	1	BOOT	(SUB FOR T75999, T106279 AND T113029)
24	T104773	2	Cap Screw	(SUB FOR T75973)
25	R26287	2	O-Ring	-
26	U15980	1	O-Ring	-
27	U15981	1	BACK-UP RING	-
28	T75984	1	O-Ring	-
29	-	1	Part 31	( AT141191 USE IF AVAILABLE) (SUB AT159226) (SUB FOR AT74135) 19,000 KPA (2750 PSI)
30	AT78105	1	RELIEF VALVE	24,000 KPA (3481 PSI) (SUB AT141647)
31	AT163865	1	SPOOL VALVE	(ALSO ORDER AT159816) (SUB FOR AT141188, AT106799, AT78503 AND AT151899)
32	AT74127	1	FITTING PLUG	-
5A	T78361	1	PLUG	(SUB T106305)
5B	T106305	1	BUSHING	-
16A	T75996	2	BACK-UP RING	(SUB T106298)
16B	T106298	2	BACK-UP RING	-

BACKHOE CONTROL VALVE BUCKET SECTION (GRESEN) [03D20]
